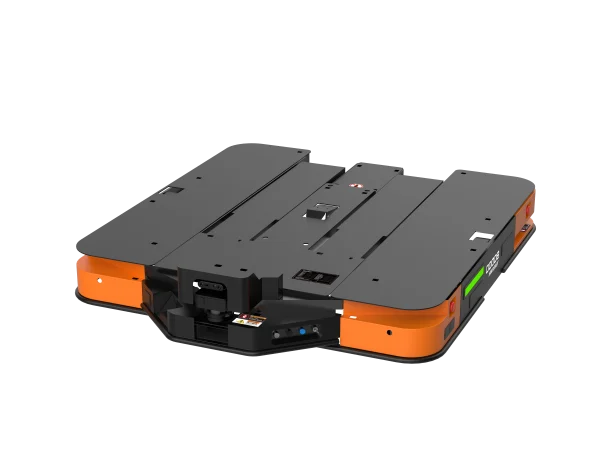

Hikrobot QF3-1000D-P1(CE) Latent Mobile Robot

Mobile robots

Hikrobot QF3-1000D-P1(CE) Latent Mobile Robot

Model QF3-1000D-P1(CE)

Hikrobot QF3-1000D-P1(CE) latent mobile robot. Rugged, easy to deploy, strong yet compliant

Price on request
351.00 kg shipping weight · Lead time on request
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Specifications

ModelQF3-1000D-P1(CE)
BrandHikrobot
Rated Load (kg)1000
Fork pocket height (mm)100-120
Min. aisle width (m)1.8
Pallet length (mm)600 to 1400
NavigationQR code / LSLAM
MotionDifferential
Rated runtime (h)8
Dimensions L × W × H (mm)1423 × 1200 × 246
Rated speed, empty (m/s)2.0
Weight (kg)351
Positioning accuracy (mm, °)±10,±1
Charging time (h)≤1.5
ShippingFreight, quoted with the order
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the LMR mobile robots series

ModelSizePriceAvailability
TP0-T5050 kg rated load Price on request 3 in stockView
Q2-400D400 kg rated load Price on request 4 in stockView
Q3-600D600 kg rated load Price on request 2 in stockView
Q7-1000E1000 kg rated load Price on request 4 in stockView
Q7-1500D1500 kg rated load Price on request 2 in stockView
Q8-2000A2000 kg rated load Price on request 4 in stockView
QF3-1000D-P11000 kg rated load Price on request 3 in stockView
Q1B-100A100 kg rated load Price on request 4 in stockView
Q1P-5050 kg rated load Price on request 4 in stockView
Q1M-100A100 kg rated load Price on request 2 in stockView
Q3S-600A600 kg rated load Price on request 5 in stockView
Q7P-1500E1500 kg rated load Price on request 4 in stockView
Q2B-400D400 kg rated load Price on request 2 in stockView
Q3B-600D600 kg rated load Price on request 5 in stockView
Q7B-1000E1000 kg rated load Price on request 2 in stockView
QF3-1000D-P31000 kg rated load Price on request 4 in stockView
QF3-1000D-P51000 kg rated load Price on request 2 in stockView
QF3-1000D-P71000 kg rated load Price on request 3 in stockView
QF3-600O-P1600 kg rated load Price on request 3 in stockView
QF3-1000O-P31000 kg rated load Price on request 4 in stockView
QF3-1500O-P51500 kg rated load Price on request 2 in stockView
QF3-1500O-P71500 kg rated load Price on request 2 in stockView
