Mobile robots

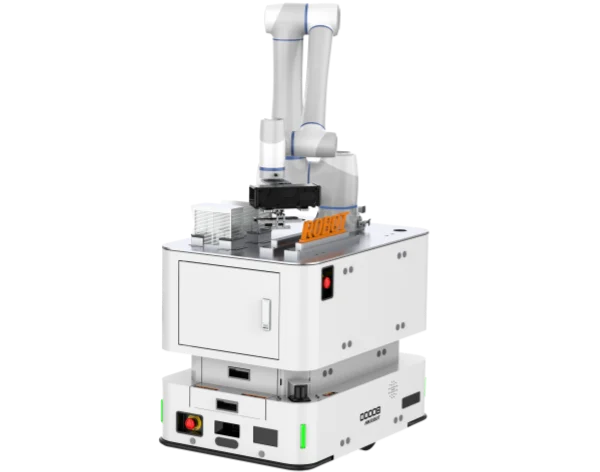

Hikrobot QC3-10LDE1 Composite Mobile Robot
Model QC3-10LDE1
Hikrobot QC3-10LDE1 composite mobile robot. Flexible, precise, integrated operation (mobile base with handling module)
Specifications
| Model | QC3-10LDE1 |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 600 |
| Rotation diameter (mm) | 1092 |
| Navigation | QR code / LSLAM |
| Load deck L × W (mm) | 930 × 640 |
| Cleanroom class | ISO Class 5 (optional) |
| Positioning accuracy (mm, °) | ±10,±1 |
| Dimensions without arm L × W × H (mm) | 950 × 650 × 1620 |
| Weight (kg) | 286 |
| Rated speed, empty (m/s) | 1.2 |
| Drive | Differential drive |
| Charging time (h) | ≤ 2 |
| Rated runtime (h) | 8 |
| Shipping | Freight, quoted with the order |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Composite mobile robots series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| QC3B-600LD | 600 kg rated load | Price on request | 3 in stock | View |
| QC7B-600LD | 600 kg rated load | Price on request | 4 in stock | View |
| QC7B-600LO | 600 kg rated load | Price on request | 4 in stock | View |
