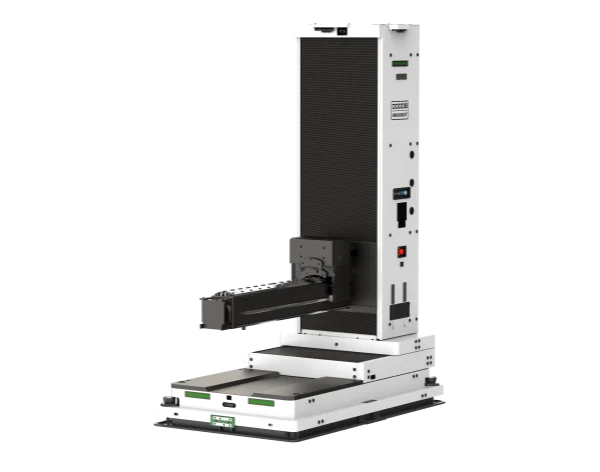

Hikrobot CHA-1100L-A Transfer Robot
Model CHA-1100L-A
Hikrobot CHA-1100L-A transfer robot. Many vehicle types, high precision, wide range of applications
Specifications
| Model | CHA-1100L-A |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 1100 |
| Rated speed (m/s) | 1.0 |
| Navigation | LSLAM / VSLAM / QR code |
| Rated acceleration (m/s²) | 0.3 |
| Rotation diameter (mm) | 2242 |
| Obstacle avoidance | Laser + stereo camera |
| Dimensions L × W × H (mm) | 2014 × 1185 × 2740 |
| Transfer method | 12-inch cantilever |
| Weight (kg) | 1500 |
| Stop angle accuracy (°) | ±1 |
| Stop position accuracy (mm) | ±10 |
| Rated runtime (h) | 8 |
| Shipping | Freight, quoted with the order |
