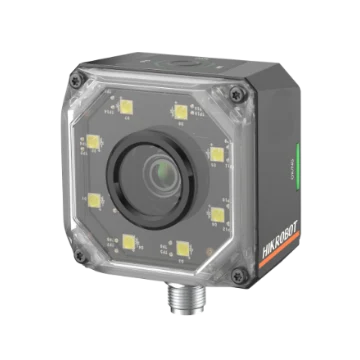

Hikrobot CY-B16M-06W 1.6 MP smart code reader
Model CY-B16M-06W
Hikrobot CY-B16M-06W 1.6 MP smart code reader. Premium sensor and built-in deep-learning decoding algorithm efficiently read barcodes in many symbologies with strong robustness Rich I/O interface for multiple input and output signals
Features
- Premium sensor and built-in deep-learning decoding algorithm efficiently read barcodes in many symbologies with strong robustness
- Rich I/O interface for multiple input and output signals
- Top ring indicator with waterproof setup button for quick status checks and tuning
- Status indicator strips on both sides, visible from multiple angles
- Supports TCP, Serial, FTP, Profinet and other transmission protocols
- IP67 protection for harsh industrial environments
Specifications
| Model | CY-B16M-06W |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 128, etc.; 2D code: QR, DM, etc. |
| Max. frame rate | 20 fps |
| Max. reading speed | 60 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm×3.45 µm |
| Sensor size | 1/2.9” |
| Resolution | 1408×1024 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet |
| Data interface | 17-pin M12 connector for power, Ethernet, Digital I/O, Serial port function |
| Ethernet | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 × RS-232; Device trigger via top button supported |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 19.8 W@24 VDC |
| Focal length | 6 mm |
| Lens mount | M12-mount, Manual focus |
| Lens cap | Clear lens cover, Optional polarizing lens cover |
| Light source | Focused white light, Optional focused red/blue light, Wide-angle white/blue light |
| Indicator | Power indicator PWR, Network indicator LNK, Status indicator STS, Result indicator OK/NG |
| Dimension | 65.2 mm×65.2 mm×42 mm |
| Weight | Approx. 240 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Shipping weight (estimated) | 0.44 kg |
