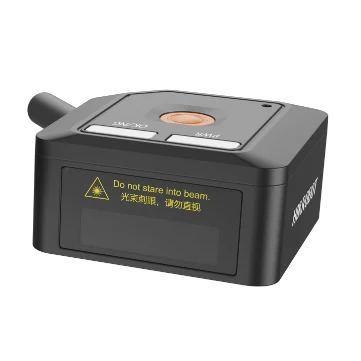

Hikrobot CT-A12M-C-WBN-SR-U 1.3 MP subminiature smart code reader
Model CT-A12M-C-WBN-SR-U
Hikrobot CT-A12M-C-WBN-SR-U 1.3 MP subminiature smart code reader. Ultra-compact: fits all kinds of machines and tight workstations In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
- Built-in laser aiming clearly marks the field of view for fast installation and setup
- Beeper and status indicators show operating status for easy on-site setup
- USB-HID, USB-CDC and RS-232 output modes
Specifications
| Model | CT-A12M-C-WBN-SR-U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE; 2D code: QR Code, Data Matrix, Micro QR Code, AZTEC, Han Xin Code; Stacked code: PDF417 |
| Min. accuracy | 1D code: 3 mil; 2D code: 10 mil |
| Max. frame rate | 60 fps |
| Max. reading speed | 20 codes/s |
| Pixel size | 2.7 μm × 2.7 μm |
| Sensor size | 1/4” |
| Resolution | 1280 × 1024 |
| Depth of field | Code39 (5 mil): 75 mm to 250 mm; Code128 (3 mil): 80 mm to 150 mm; Code128 (10 mil): 65 mm to 420 mm; QR Code (10 mil): 75 mm to 230 mm; QR Code (20 mil): 65 mm to 480 mm |
| Exposure time | 60 us ~7000 us |
| Gain | 1 dB ~ 15 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, USB, Serial |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Beam divergence angle | 14.5°× 14.5° |
| Repetition rate | Always on |
| Maximum power | 3.8 MW |
| Data interface | USB2.0 |
| Digital I/O | 1 non-isolated input (pin 1), 1 non-isolated output (pin 3), 1 configurable I/O (pin 2); Device triggering via top button supported |
| Power supply | 5 VDC |
| Max. power consumption | 2.5 W@5 VDC |
| Focal length | 4.9 mm |
| Lens mount | M10-Mount |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Warm white LED |
| Aiming system | Cross laser aiming |
| Status indicator | LED indicator, Buzzer |
| Dimension | 38 mm × 38 mm × 19 mm |
| Weight | Approx. 40 g (0.09 lb.) without cable |
| Ingress protection | IP54 |
| Temperature | Operating temp.: -20 to 50 °C, Storage temp.: -40 to 70 °C |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.16 kg |
