Red ring lights

Ring lights mount around the lens for even, on-axis illumination of the inspection area. Red light gives strong contrast on mono cameras, which are most sensitive in the red, and is the usual choice for general inspection, code reading and dark features on light parts.

All ring lights · Blue ring lights · Green ring lights · White ring lights · Infrared ring lights · UV ring lights

639 models Configure a system All lights

Products

									Compare

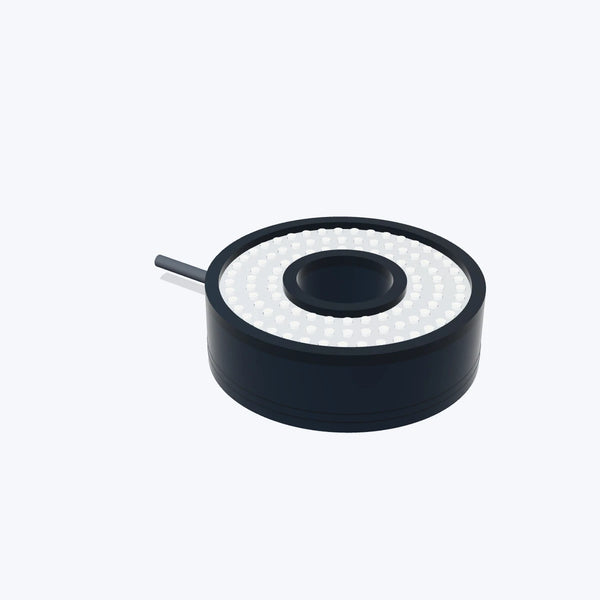

LS-RNG-0775Waterproof ring light, Ø130 mm	Red, Green, Blue, White	Out dia. 130,Inner dia. 45,Height 40mm	24 V	8.4W/14.0W	-	-	$339.00	Ships in 2-3 weeks	Compare LS-RNG-0775
LS-RNG-0774Waterproof ring light, Ø73 mm	Red, Green, Blue, White	Out dia. 73,Inner dia. 25,Height 27mm	24 V	2.6W/4.3W	-	-	$209.00	Ships in 2-3 weeks	Compare LS-RNG-0774
LS-RNG-0773350 mm dia. ring light, 300 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Standard	$789.00	Ships in 2-3 weeks	Compare LS-RNG-0773

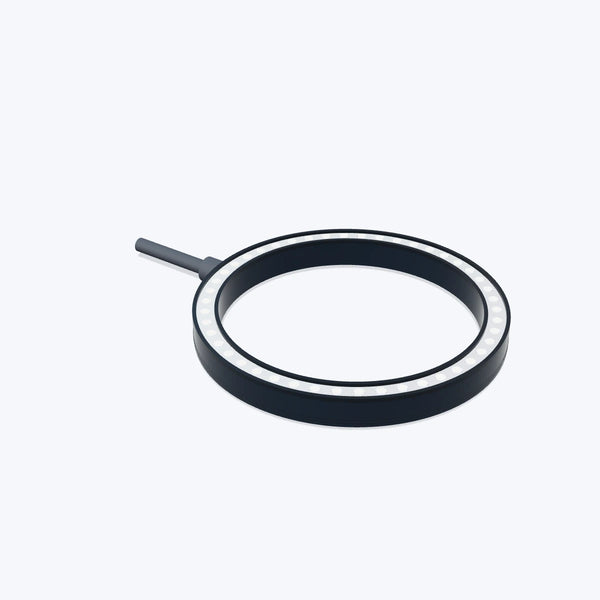

LS-RNG-0772300 mm dia. ring light, 251 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Diffused	$699.00	Ships in 2-3 weeks	Compare LS-RNG-0772
LS-RNG-0771300 mm dia. ring light, 258 mm inner dia.	Red, Green, Blue, White	-	24 V DC	8.3W/9.6W	0°	-	$699.00	Ships in 2-3 weeks	Compare LS-RNG-0771

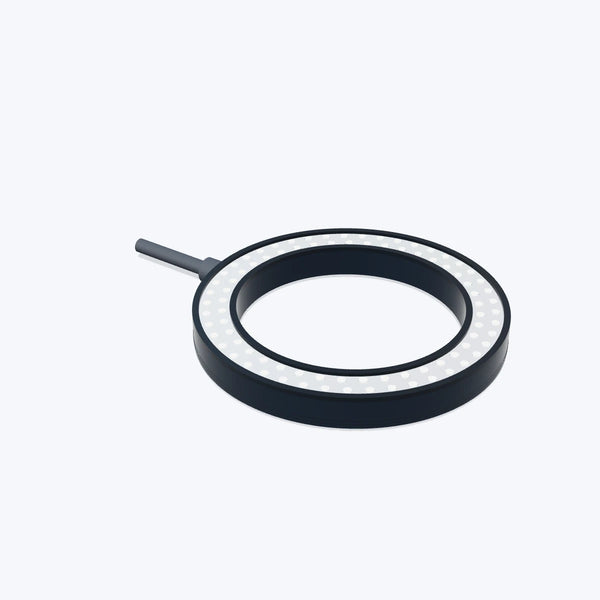

LS-RNG-0770250 mm dia. ring light, 181 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	60°	Diffused	$589.00	Ships in 2-3 weeks	Compare LS-RNG-0770
LS-RNG-0769250 mm dia. ring light, 201 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Diffused	$589.00	Ships in 2-3 weeks	Compare LS-RNG-0769
LS-RNG-0767228 mm Ring light	Red, Green, Blue, White	-	24 V DC	-	30°	-	$689.00	Ships in 2-3 weeks	Compare LS-RNG-0767

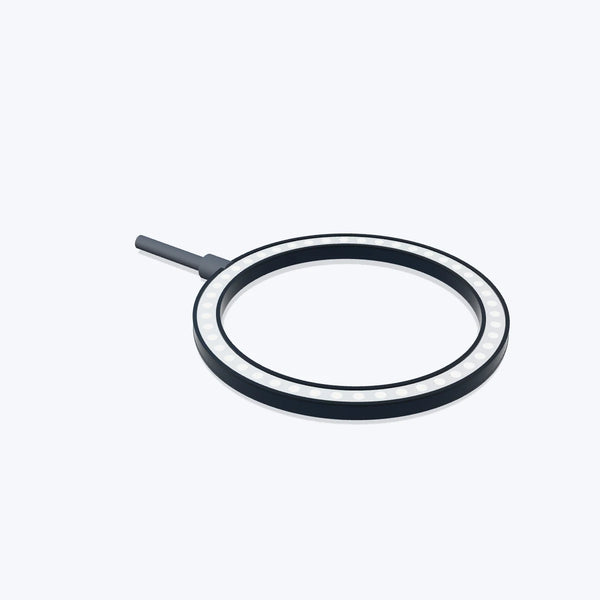

LS-RNG-0766220 mm dia. ring light, 182 mm inner dia.	Red, Green, Blue, White	-	24 V DC	5.5W/6.9W	0°	-	$539.00	Ships in 2-3 weeks	Compare LS-RNG-0766
LS-RNG-0765210 mm dia. ring light, 162 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	60°	Diffused	$509.00	Ships in 2-3 weeks	Compare LS-RNG-0765
LS-RNG-0763208 mm dia. ring light, 155 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	60°	Diffused	$509.00	Ships in 2-3 weeks	Compare LS-RNG-0763
LS-RNG-0764210 mm dia. ring light, 174 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Standard	$519.00	Ships in 2-3 weeks	Compare LS-RNG-0764
LS-RNG-0762200 mm dia. ring light, 70 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	90°	Standard	$499.00	Ships in 2-3 weeks	Compare LS-RNG-0762
LS-RNG-0761200 mm dia. ring light, 156 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	60°	Standard	$489.00	Ships in 2-3 weeks	Compare LS-RNG-0761
LS-RNG-0760200 mm dia. ring light, 155 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	45°	Diffused	$489.00	Ships in 2-3 weeks	Compare LS-RNG-0760
LS-RNG-0759200 mm dia. ring light, 164 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Standard	$489.00	Ships in 2-3 weeks	Compare LS-RNG-0759
LS-RNG-0758200 mm dia. ring light, 158 mm inner dia.	Red, Green, Blue, White	-	24 V DC	4.6W/5.5W	0°	-	$499.00	Ships in 2-3 weeks	Compare LS-RNG-0758
LS-RNG-0757184 mm dia. ring light, 142 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Diffused	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0757
LS-RNG-0756180 mm dia. ring light, 130 mm inner dia.	Red, Green, Blue, White	-	24 V DC	8.7W/10.8W	Special angle	-	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0756
LS-RNG-0753180 mm dia. ring light, 162 mm inner dia.	Red, Green, Blue, White	-	24 V DC	7.2W/9.4W	15°	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0753
LS-RNG-0755180 mm dia. ring light, 126 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	60°	Standard	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0755
LS-RNG-0754180 mm dia. ring light, 132 mm inner dia.	Red, Green, Blue, White	-	24 V DC	-	30°	Standard	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0754
LS-RNG-0752173 mm dia. ring light, 155 mm inner dia.	Red, Green, Blue, White	-	24 V DC	4.6W/5.8W	15°	-	$439.00	Ships in 2-3 weeks	Compare LS-RNG-0752
LS-RNG-0751172 mm dia. ring light, 130 mm inner dia.	Red, Green, Blue, White	-	24 V DC	4.6W/5.5W	0°	-	$439.00	Ships in 2-3 weeks	Compare LS-RNG-0751
