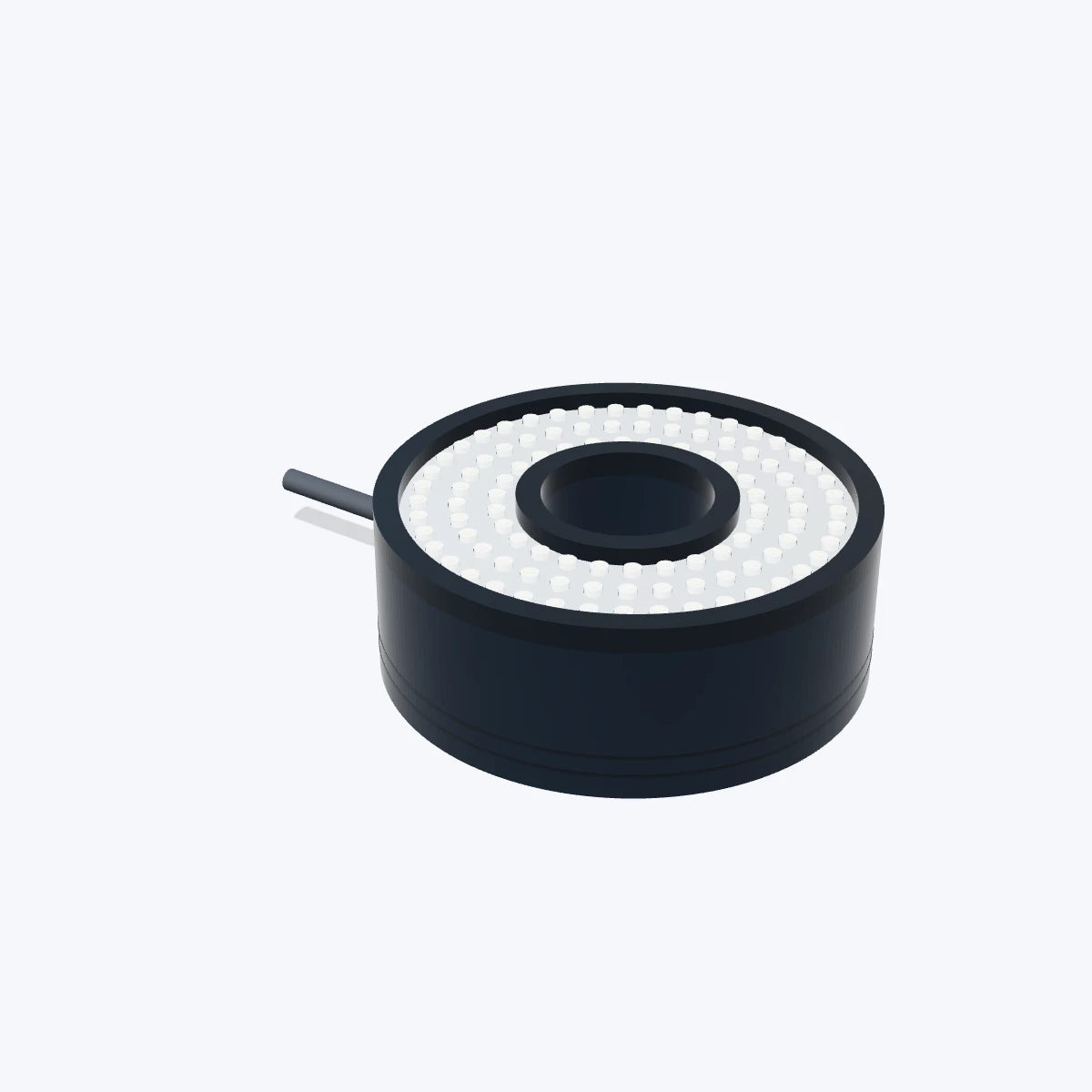

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Ring lights

Waterproof ring light, Ø73 mm (LS-RNG-0774)

Model LS-RNG-0774

ColourRed, Green, Blue, White
SizeOut dia. 73,Inner dia. 25,Height 27mm
Voltage24 V
Power2.6W/4.3W

$209.00

Ships in 2-3 weeks

0.45 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Light for humid, dusty or harsh environments with a special leakproof structure and heat-dissipating material; passed 12 h dust-box and 12 h sprinkler tests and holds IP54 certification from SGS.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0774
Dustproof test	12 h in a professional dust box with continuous dust drift
Waterproof test	12 h spray by professional sprinkler at 800 mm
Customizable	shape, colour and colour temperature, cable length, installation method, multi-area control
Note	UV & IR light can be customized as required.
Outer dia. (mm)	73
Inner dia. (mm)	25

Interfaces and I/O

Extension cable options	PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Custom wavelengths	UV & IR light can be customized as required
LED colour	R(red)/W(white)

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V
Adapted controller	Analog controller, digital controller
Protection	IP54 (SGS certified) / IP67 level
Power, R (W)	2.6
Power, G/B/W (W)	4.3
Power	2.6W/4.3W
Input voltage	DC 24V (max)

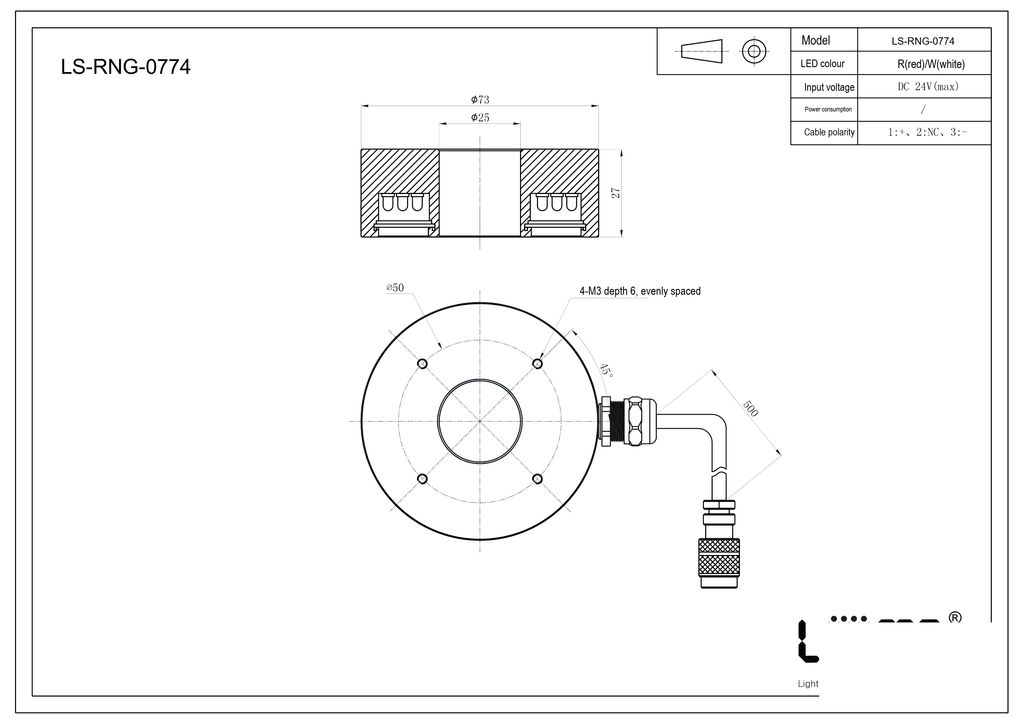

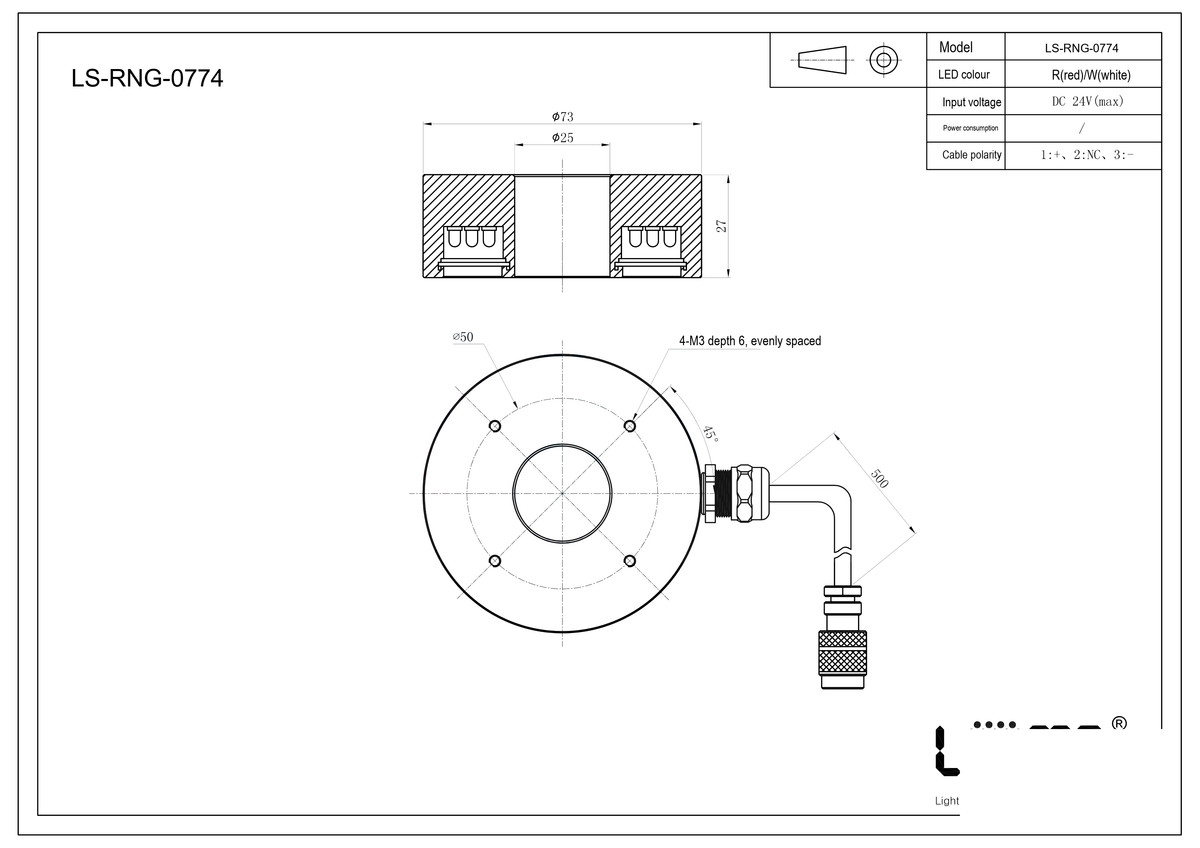

Mechanical

Weight (g)	237
Height (mm)	27
Mounting	4-M3 depth 6 on dia. 50
Dimension	Out dia. 73,Inner dia. 25,Height 27mm
Mounting holes	4-M3 depth 6, evenly spaced

Downloads

Datasheet (PDF)LS-RNG-0774 · 1.7 MB

Features

For humid, dusty or relatively harsh environments
Special structure design with high leakproofness
Special heat dissipating material
Variety of outlines, can be customized
IP54 waterproof certification from SGS
Used at humid, dusty or some relatively harsh environment
Adopted special structure design with high leakproofness
Adopted special heat dissipating material with good heat dissipating
Variety outline, can be customized

Applications

Humid, dusty or relatively harsh environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Waterproof ring light (LS-RNG-S84) series

See the category

Model	Size / key data	Price	Availability	Link
LS-RNG-0775	Red, Green, Blue, White · Out dia. 130,Inner dia. 45,Height 40mm	$339.00	Ships in 2-3 weeks	View
