Blue backlights

Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Blue light has a short wavelength that brings out fine surface detail and scratches on shiny metal, and contrasts well against red, orange and yellow features.

All backlights · Red backlights · Green backlights · White backlights · Infrared backlights · UV backlights

1086 models Configure a systemAll lights
Blue backlights

937-960 of 1086 models

Products

Compare

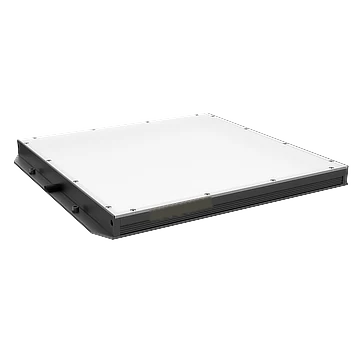

LS-BKL-1483Flat Backlight, 300 x 200 mm, Blue Blue300 mm × 200 mm332 mm × 213 mm × 19 mm24 VDC49.6 W470 nm$729.00 Ships in 2-3 weeks
LS-BKL-1471Flat Backlight, 200 x 200 mm, Blue Blue200 mm × 200 mm232 mm × 213 mm × 18 mm24 VDC55.2 W470 nm$549.00 Ships in 2-3 weeks
LS-BKL-1475Flat Backlight, 250 x 150 mm, Blue Blue250 mm × 150 mm282 mm × 163 mm × 19 mm24 VDC40.7 W470 nm$529.00 Ships in 2-3 weeks
LS-BKL-1467Flat Backlight, 150 x 150 mm, Blue Blue150 mm × 150 mm182 mm × 163 mm × 18 mm24 VDC32 W470 nm$389.00 Ships in 2-3 weeks
LS-BKL-1463Flat Backlight, 150 x 100 mm, Blue Blue150 mm × 100 mm182 mm × 113 mm × 18 mm24 VDC19 W470 nm$319.00 Ships in 2-3 weeks
LS-BKL-1459Flat Backlight, 120 x 120 mm, Blue Blue120 mm × 120 mm152 mm × 133 mm × 18 mm24 VDC19.5 W470 nm$309.00 Ships in 2-3 weeks
LS-BKL-1455Flat Backlight, 100 x 100 mm, Blue Blue100 mm × 100 mm132 mm × 113 mm × 18 mm24 VDC18.2 W470 nm$279.00 Ships in 2-3 weeks
LS-BKL-1451Flat Backlight, 80 x 80 mm, Blue Blue80 mm × 80 mm112 mm × 93 mm × 18 mm24 VDC11.3 W470 nm$249.00 Ships in 2-3 weeks
LS-BKL-1447Flat Backlight, 50 x 50 mm, Blue Blue50 mm × 50 mm82 mm × 63.2 mm × 18 mm24 VDC3.7 W470 nm$209.00 Ships in 2-3 weeks
LS-BKL-1443Flat Backlight, 50 x 30 mm, Blue Blue50 mm × 30 mm82 mm × 43 mm × 18 mm24 VDC2.7 W470 nm$209.00 Ships in 2-3 weeks
LS-BKL-1439Flat Backlight, 30 x 30 mm, Blue Blue30 mm × 30 mm62 mm × 43 mm × 18 mm24 VDC1.8 W470 nm$199.00 Ships in 2-3 weeks

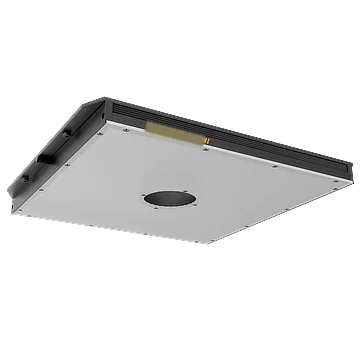

LS-BKL-1413Flat Backlight with Center Hole, 620 x 620 mm, Blue Blue620 mm × 620 mm696 mm × 650 mm × 25 mm24 VDC233.9 W470 nm$2,339.00 Ships in 2-3 weeks
LS-BKL-1410Flat Backlight with Center Hole, 600 x 400 mm, Blue Blue600 mm × 400 mm676 mm × 430 mm × 25 mm24 VDC152.3 W470 nm$1,549.00 Ships in 2-3 weeks
LS-BKL-1406Flat Backlight with Center Hole, 450 x 320 mm, Blue Blue450 mm × 320 mm488 mm × 335 mm × 21 mm24 VDC170.5 W470 nm$1,379.00 Ships in 2-3 weeks
LS-BKL-1402Flat Backlight with Center Hole, 400 x 300 mm, Blue Blue400 mm × 300 mm438 mm × 315 mm × 21 mm24 VDC75 W470 nm$1,209.00 Ships in 2-3 weeks
LS-BKL-1399Flat Backlight with Center Hole, 300 x 300 mm, Blue Blue300 mm × 300 mm338 mm × 315 mm × 21 mm24 VDC65.2 W470 nm$969.00 Ships in 2-3 weeks
LS-BKL-1389Flat Backlight with Center Hole, 250 x 250 mm, Blue Blue250 mm × 250 mm282 mm × 263 mm × 19 mm24 VDC48.3 W470 nm$739.00 Ships in 2-3 weeks
LS-BKL-1394Flat Backlight with Center Hole, 300 x 200 mm, Blue Blue300 mm × 200 mm332 mm × 213 mm × 19 mm24 VDC46.7 W470 nm$719.00 Ships in 2-3 weeks
LS-BKL-1385Flat Backlight with Center Hole, 250 x 200 mm, Blue Blue250 mm × 200 mm282 mm × 213 mm × 19 mm24 VDC48 W470 nm$639.00 Ships in 2-3 weeks
LS-BKL-1377Flat Backlight with Center Hole, 200 x 200 mm, Blue Blue200 mm × 200 mm232 mm × 213 mm × 18 mm24 VDC41.4 W470 nm$549.00 Ships in 2-3 weeks
LS-BKL-1381Flat Backlight with Center Hole, 250 x 150 mm, Blue Blue250 mm × 150 mm282 mm × 163 mm × 19 mm24 VDC34.7 W470 nm$529.00 Ships in 2-3 weeks
LS-BKL-1374Flat Backlight with Center Hole, 150 x 150 mm, Blue Blue150 mm × 150 mm182 mm × 163 mm × 18 mm24 VDC26.4 W470 nm$389.00 Ships in 2-3 weeks
LS-BKL-1370Flat Backlight with Center Hole, 120 x 120 mm, Blue Blue120 mm × 120 mm152 mm × 133 mm × 18 mm24 VDC15.3 W470 nm$309.00 Ships in 2-3 weeks
LS-BKL-1366Flat Backlight with Center Hole, 100 x 100 mm, Blue Blue100 mm × 100 mm132 mm × 113 mm × 18 mm24 VDC10.5 W470 nm$279.00 Ships in 2-3 weeks
