180 mm ring lights

Ring lights mount around the lens for even, on-axis illumination of the inspection area. Pick the ring size from the lens and the working distance: the lens must fit through the inner diameter, and a bigger ring lights a wider area from farther away.

All ring lights · 50 mm ring lights · 60 mm ring lights · 70 mm ring lights · 90 mm ring lights · 100 mm ring lights · 120 mm ring lights · 150 mm ring lights

26 models Configure a system All lights

Products

									Compare
LS-RNG-0679Ø180 mm low-angle ring light, 30° angle	Red, Blue, White, Green, Infrared, UV	24 VDC	30°	Low-angle	-	-	From $345.00	Ships in 3-4 weeks	Compare LS-RNG-0679
LS-RNG-0646180 mm dia. ring light, 90°	Red, Green, Blue, White, Infrared, UV	24 V DC (12 V on request)	90 degree series	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0646
LS-RNG-0627180 mm dia. ring light, 60°	Red, Green, Blue, White, Infrared, UV	24 V DC (12 V on request)	60 degree series	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0627
LS-RNG-0617180 mm dia. ring light, 45°	Red, Green, Blue, White, Infrared, UV	24 V DC (12 V on request)	45 degree series	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0617
LS-RNG-0610180 mm dia. ring light, 30°	Red, Green, Blue, White, Infrared, UV	24 V DC (12 V on request)	30 degree series	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0610
LS-RNG-0825180 mm dia. ring light, 90°	Red, Green, Blue, White	24 V	90°	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0825
LS-RNG-0824180 mm dia. ring light, 60°	Red, Green, Blue, White	24 V	60°	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0824
LS-RNG-0823180 mm dia. ring light, 30°	Red, Green, Blue, White	24 V	30°	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0823

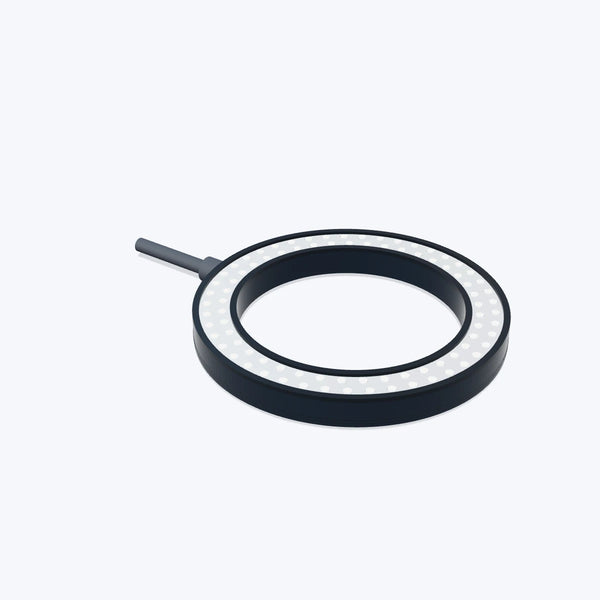

LS-RNG-0756180 mm dia. ring light, 130 mm inner dia.	Red, Green, Blue, White	24 V DC	Special angle	-	8.7W/10.8W	-	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0756

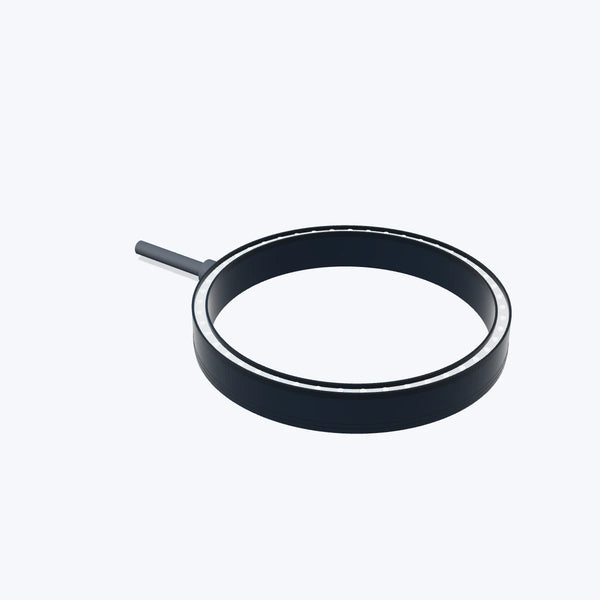

LS-RNG-0753180 mm dia. ring light, 162 mm inner dia.	Red, Green, Blue, White	24 V DC	15°	-	7.2W/9.4W	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0753

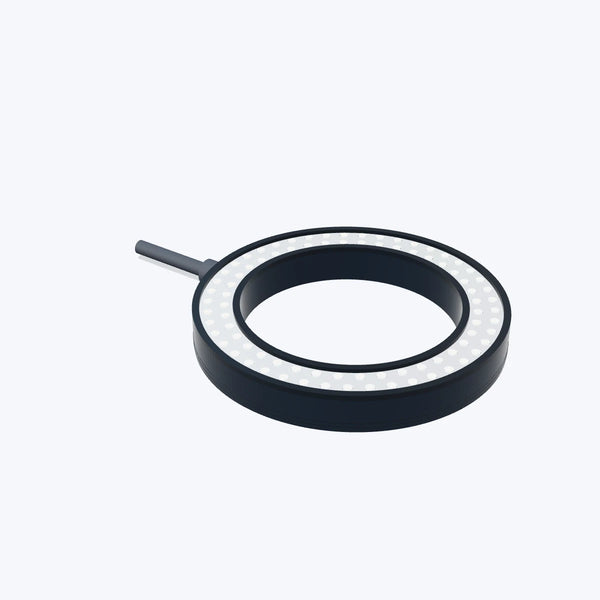

LS-RNG-0755180 mm dia. ring light, 126 mm inner dia.	Red, Green, Blue, White	24 V DC	60°	Standard	-	-	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0755

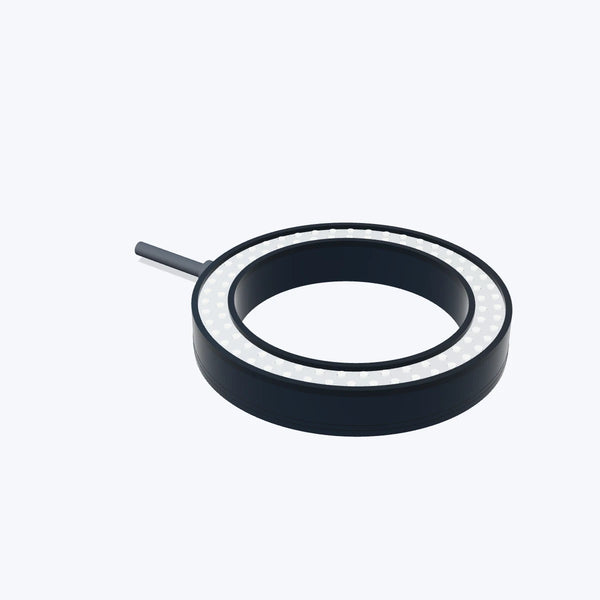

LS-RNG-0754180 mm dia. ring light, 132 mm inner dia.	Red, Green, Blue, White	24 V DC	30°	Standard	-	-	$449.00	Ships in 2-3 weeks	Compare LS-RNG-0754
LS-RNG-0321Ring light, outer diameter 180 mm, 132 mm inner dia.	Red, Green, Blue, White	24 V	-	Standard	-	500 mm	$349.00	Ships in 2-3 weeks	Compare LS-RNG-0321
LS-RNG-0322Ring light, outer diameter 180 mm, 126 mm inner dia.	Red, Green, Blue, White	24 V	-	Standard	-	500 mm	$329.00	Ships in 2-3 weeks	Compare LS-RNG-0322

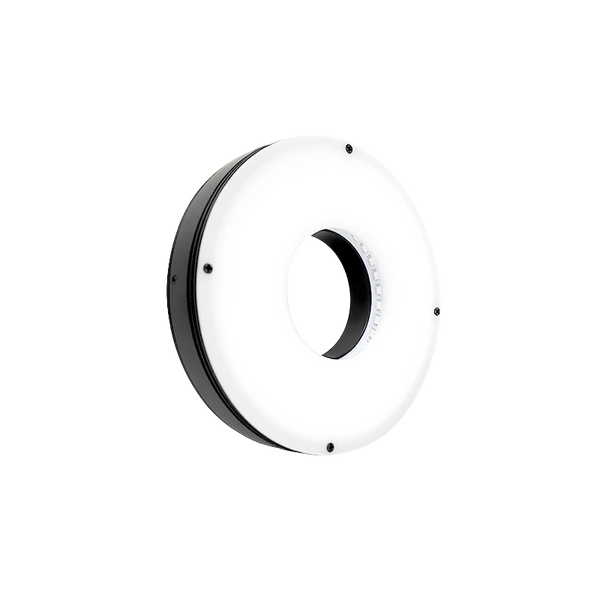

LS-RNG-0154180 mm dia. ring light with diffuser, 90°	Red, Blue, White	24 V	90°	Diffused	-	-	$329.00	Ships in 2-3 weeks	Compare LS-RNG-0154
LS-RNG-0153180 mm dia. ring light with diffuser, 60°	Red, Blue, White	24 V	60°	Diffused	-	-	$329.00	Ships in 2-3 weeks	Compare LS-RNG-0153

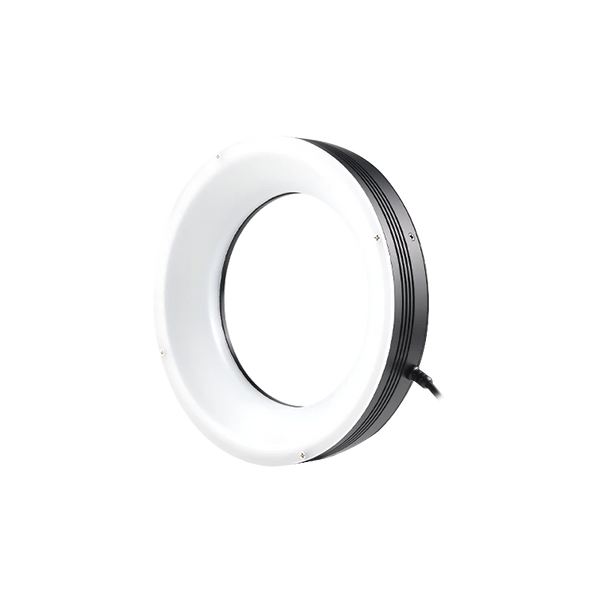

LS-RNG-0156180 mm dia. ring light with diffuser, 45°	Red, Blue, White	24 V	45°	Diffused	-	-	$339.00	Ships in 2-3 weeks	Compare LS-RNG-0156
LS-RNG-0155180 mm dia. ring light with diffuser, 30°	Red, Blue, White	24 V	30°	Diffused	-	-	$339.00	Ships in 2-3 weeks	Compare LS-RNG-0155
LS-RNG-0113180 mm dia. ring light, 0°	Red, Blue, White	24 V	0°	Standard	-	-	$369.00	Ships in 2-3 weeks	Compare LS-RNG-0113
LS-RNG-0110180 mm dia. ring light, 90°	Red, Blue, White	24 V	90°	Standard	-	-	$329.00	Ships in 2-3 weeks	Compare LS-RNG-0110
LS-RNG-0109180 mm dia. ring light, 60°	Red, Blue, White	24 V	60°	Standard	-	-	$329.00	Ships in 2-3 weeks	Compare LS-RNG-0109
LS-RNG-0112180 mm dia. ring light, 45°	Red, Blue, White	24 V	45°	Standard	-	-	$339.00	Ships in 2-3 weeks	Compare LS-RNG-0112
LS-RNG-0111180 mm dia. ring light, 30°	Red, Blue, White	24 V	30°	Standard	-	-	$339.00	Ships in 2-3 weeks	Compare LS-RNG-0111
LS-RNG-0274180 mm OD LED Ring Light, 30°	Red, Green, Blue, White	24 V	30°	Standard	-	-	$459.00	Ships in 2-3 weeks	Compare LS-RNG-0274
