Open source machine vision software: integration tradeoffs

An image-processing demonstration can succeed while the production inspection remains unfinished. The missing work usually sits around the algorithm: camera acquisition, buffer ownership, configuration, fault handling, deployment and support. For buyers evaluating open source machine vision software, those boundaries matter more than a successful test on saved images.

Start by defining the inspection and its acceptance criteria, then evaluate the complete path from camera exposure to inspection result. You can then compare software approaches, identify compatible acquisition hardware and estimate the engineering effort required to operate the station reliably.

Choose an inspection platform, not just an algorithm

An open-source library is a reasonable starting point when its algorithms meet your inspection requirements and your team can maintain the surrounding application. It is less attractive when the project depends on undocumented behavior, unavailable camera bindings or maintenance skills that will disappear after commissioning.

Make the decision against three separate deliverables:

• Inspection performance: acceptable detection, measurement or classification results across representative production variation.
• Acquisition performance: complete, correctly associated images at the required operating rate.
• Operational performance: controlled startup, fault reporting, recovery, configuration and deployment.

A library may contribute strongly to the first deliverable without providing the other two. Conversely, an acquisition SDK may deliver images reliably without providing your measurement or classification algorithm.

Define acceptance criteria before selecting software. An illustrative requirement might specify a sustained acquisition rate of 20 frames/s, a result deadline of 100 ms and an explicit response to an incomplete image. These are application targets, not properties implied by an interface label.

Keep process-quality decisions separate from machinery safety. Unless specifically designed and validated for the safety function, an inspection application must not replace protective controls.

Separate the library from the acquisition stack

Treat the station as several connected layers. This makes missing responsibilities visible before they become integration problems.

A general-purpose image-input function is not automatically an industrial acquisition solution. Check whether it exposes the required camera controls, frame metadata, trigger configuration and transport errors. A displayable image alone proves very little about production readiness.

GigE Vision, USB3 Vision and GenICam can help define interfaces and feature access, but they do not establish compatibility for every software combination. Validate the exact camera, acquisition runtime, operating system and application interface. The GigE Vision software compatibility checks explain that boundary in more detail.

Device discovery is another separate milestone. If a device appears but cannot be opened, use the GenTL camera-open diagnostic guide rather than changing image-processing libraries first.

Evaluate algorithm coverage and language bindings

Begin with a representative image set, not a feature checklist. Include acceptable parts, known defects, borderline conditions, presentation variation and difficult lighting cases. Keep development images separate from the images used for final acceptance.

For each required inspection, record:

• The algorithm or processing sequence you intend to use.
• Supported pixel formats, channel counts and numeric types.
• Parameters that need adjustment between product recipes.
• Failure cases and how the application identifies them.
• Execution time and memory use on the deployment platform.
• Calibration or model files needed to reproduce the result.

Language support needs the same scrutiny. A binding can expose common operations while omitting a specialized function, accelerator interface or acquisition callback. Confirm the actual functions and versions you need, rather than accepting a broad statement that a language is supported.

Check ownership across language boundaries. Does an image object reference an acquisition buffer, or does it contain an independent copy? Can processing continue after the callback returns? What happens when the camera runtime reuses that memory?

A practical test is to retain an image while acquiring subsequent frames, then verify that its content remains unchanged under the documented ownership rules. Use documented retention or copying methods; do not rely on a pointer remaining valid accidentally.

For native applications, include compiler, runtime and library dependencies in the evaluation. The guide to camera SDK linking dependencies covers a different problem from algorithm correctness, but both must be resolved before deployment.

Calculate the data path before benchmarking algorithms

Algorithm timing matters only when the application can deliver images without uncontrolled queues or excessive copying. Estimate the image payload first, then measure the real implementation.

For an unpacked image with a known stored pixel size:

Consider a hypothetical image measuring 2048 × 1536 pixels, stored as 8-bit monochrome at 20 frames/s:

For four identical streams, the combined image payload is approximately 252 MB/s. With three acquisition buffers per camera, image storage alone is:

These estimates use decimal megabytes and exclude transport overhead, row padding, metadata and processing intermediates. Storage in a wider pixel container increases memory requirements even when the sensor's useful bit depth is lower.

One full-frame copy adds approximately 63 MB/s of reads and 63 MB/s of writes for each stream in this example. A conversion followed by another copy can therefore matter even when the inspection algorithm seems fast.

Measure sustained throughput and end-to-end latency separately. A system can process enough frames on average while delivering individual results too late. Use bounded queues and define what happens when processing falls behind. The guide to callbacks and buffer queues explains why acquisition callbacks should not become unrestricted processing workers.

Match hardware candidates to the software evidence

Use area scan cameras and the camera finder to identify candidates, but keep interface selection separate from software qualification.

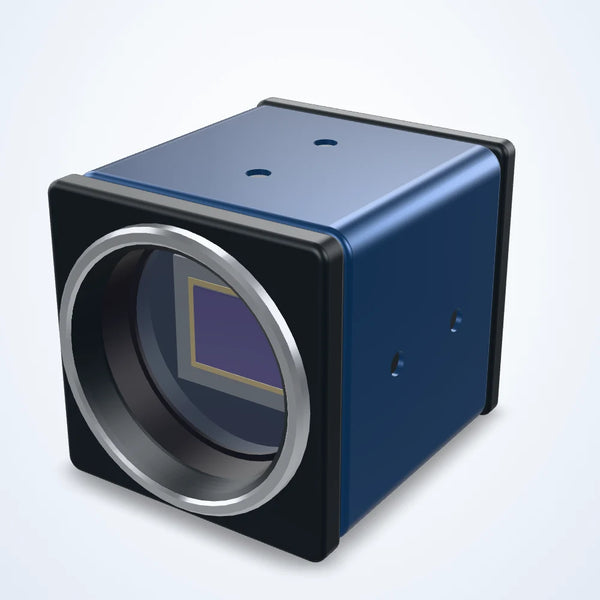

The LS-CMR-0053 is a GigE area scan camera. The LS-CMR-0166 is a USB3 area scan camera. Their catalog comparison provides hardware information; it does not establish support in a particular open-source library.

All 2 share: Sensor size 1/1.7". Values as printed in each product's data sheet; open a part for its drawing and full specifications.

For each candidate, request evidence for the exact acquisition path. Useful evidence includes an official acquisition example, a supported runtime, documented buffer handling and an installation procedure for the intended operating system.

If the design needs an expansion interface, review frame grabbers through the accessory finder. The category includes different interface products, so confirm the individual part's role rather than assuming every card performs the same acquisition functions.

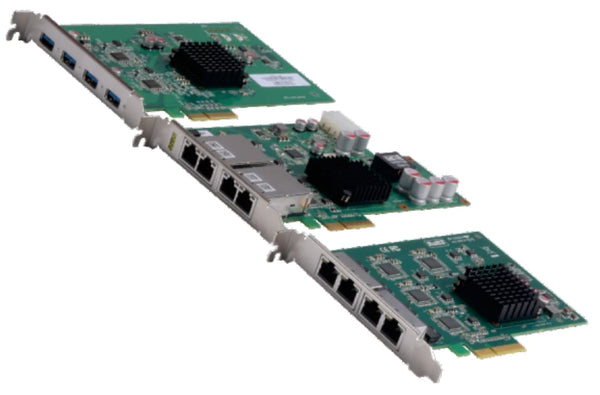

The LS-FGB-0004 is a USB3 expansion card. Check its documented driver and host requirements separately from those of the camera and processing library.

Do not assume that adding an interface card supplies image-processing functions, independent bandwidth for every connector or compatibility with every acquisition runtime. Those are separate questions requiring documentation or measurement.

When considering vision controllers, evaluate camera interfaces, operating-system support, application deployment and required control connections together. Connector count alone does not prove usable simultaneous acquisition capacity.

Processor architecture also matters. The ARM64 binary compatibility guide shows why a processing library's availability does not establish availability of the camera runtime. For several cameras, use the multi-camera session architecture guide to plan device ownership and lifecycle management.

Review licensing and deployment as separate workstreams

Open source does not mean that every component in the finished station has identical deployment terms. Review the exact versions and distribution conditions of the library, dependencies, optional modules, models, codecs and acquisition runtime.

Create a component inventory that records each component's source, version, license, redistribution requirements and update owner. Have the appropriate reviewer assess obligations for your intended distribution method. Do not assume that internal evaluation and delivery to a customer are equivalent uses.

Obtain software, firmware and documentation from the manufacturer or its authorized distributors. Use the project's official distribution channel for open-source components. Where an acquisition runtime or optional module requires a license, include legitimate activation and recovery procedures in commissioning documentation.

Build a clean deployment package containing the required binaries, configuration, calibration data and application assets. Test it on a fresh target environment rather than relying on a development workstation with accumulated dependencies.

Record enough information to recreate the installation. Include package versions, build options, runtime versions and configuration checksums where appropriate. The software upgrade validation checklist provides a useful framework for qualifying changes without treating every update as a new commissioning exercise.

Compare engineering effort with the complete alternative

The useful comparison is not a library against a complete station package. Compare two complete delivery plans that satisfy the same acceptance criteria.

Neither column guarantees less work. A constrained inspection with a supported acquisition example can be a good library-based project. A station needing extensive recipe management, audit records and operator workflows may require much more surrounding development.

Estimate hours by work package. For illustration, allow 16 hours for algorithm evaluation, 24 for acquisition integration, 24 for verification and 16 for deployment documentation:

These are arithmetic examples, not project estimates. Replace them with measured trial results and include recurring maintenance separately. A useful trial ends with evidence and an updated estimate, not merely an attractive demonstration.

Run a bounded acceptance trial before ordering

Agree on a short qualification plan with explicit pass conditions. Keep the algorithm, acquisition and deployment tests distinct so that failures have an identifiable owner.

1. Freeze the candidate stack. Record hardware, firmware, driver, runtime, library and application versions. Otherwise, successive tests may qualify different systems.
2. Verify image interpretation. Check dimensions, stride, pixel format, channel order and numeric range. An image that looks plausible can still be interpreted incorrectly.
3. Measure sustained operation. Run at the intended rate and include processing, display, logging and result communication. Record queue depth and latency, not only average frame rate.
4. Exercise expected faults. Test documented handling of disconnects, missing images, application restarts and unavailable output destinations. Do not interfere with machine safety functions.
5. Test configuration persistence. Restart the application and power-cycle equipment where permitted. Confirm that required settings are reapplied and read back.
6. Deploy to a clean environment. Verify installation, legitimate licensing, startup behavior and rollback without development tools.
7. Review ownership. Name the responsible internal role for dependency updates, acquisition faults, algorithm changes and deployment maintenance.

Use a defined run length rather than calling a brief demonstration stable. For example, a 30-minute run at 20 frames/s requests 36,000 frames. Reconcile requested, received, processed and reported counts using the semantics of your acquisition system. This is one test condition, not proof of long-term reliability.

If the system fails only under load, follow the acquisition-stall isolation guide before replacing unrelated components. Electrical trigger diagnosis is a separate task; successful image processing does not verify trigger wiring or timing.

Know when a library is the wrong starting point

Reconsider a library-first approach when the required acquisition runtime is unavailable, the inspection depends on unsupported functionality or no team owns maintenance after handover. A successful prototype does not remove those constraints.

The usual answer can also be wrong when most development effort lies outside image analysis. Operator access control, recipe approval, traceability, deployment management and service diagnostics can dominate the project. In that case, evaluate complete inspection environments against the same acceptance plan rather than assuming either approach wins automatically.

Before committing, check that you have:

• Representative images and measurable inspection criteria.
• A documented, supported acquisition path.
• Measured throughput, latency and buffer behavior.
• Reviewed licenses for the complete deployment.
• A reproducible installation and an assigned maintenance owner.

Start the hardware shortlist with the camera configurator, using your verified interface and imaging requirements. If acquisition compatibility remains uncertain, bring the proposed software stack and test requirements to applications support before selecting parts.
