Infrared lens athermalization: keeping focus as temperature changes

An infrared image can start sharp and soften as the equipment reaches thermal equilibrium, even when the target never moves. Refocusing may restore detail, but repeated adjustment is not always acceptable in an inspection station. Buyers need to distinguish a lens that survives temperature changes from an optical assembly that maintains useful focus through them.

Infrared lens athermalization addresses that distinction. The decision is not simply passive versus motorized focus: it is which approach maintains your required image quality, at your working distance, during both warm-up and steady operation. Start with a measurable acceptance criterion, then request evidence for the complete lens-and-camera combination.

What athermalization actually promises

An athermalized optical assembly limits changes in specified performance as its temperature changes. The relevant performance might be residual defocus, modulation transfer function, or effective focal length. These are related, but they are not interchangeable guarantees.

Modulation transfer function, or MTF, describes how well an imaging system preserves contrast at different spatial frequencies. A lens can retain its nominal focal length while losing useful contrast because the best-focus plane moves or aberrations change.

An operating-temperature rating alone does not establish focus stability. It may describe the conditions under which equipment functions, without promising a particular image-quality threshold. Ask what was measured, over which temperature range, and with what detector position.

Athermalization is also conditional on distance and configuration. Performance demonstrated with a distant target does not automatically establish performance at a close inspection distance. Likewise, changing a spacer or detector mounting arrangement can change the thermal behavior.

If your immediate problem is a station that becomes blurry during operation, start with the diagnostic sequence in camera focus drift with temperature. Here, the emphasis is specifying compensation and proving that it meets an acceptance limit.

Why the best-focus plane moves

Temperature changes affect an infrared imaging assembly through several mechanisms:

• Optical materials expand, changing surface curvature and element thickness.
• Refractive index changes with temperature, changing optical power.
• Barrels and spacers expand, changing element separation.
• Camera structures expand, moving the detector relative to the lens reference surface.
• Uneven temperatures produce behavior that differs from a uniform-temperature calculation.

A first estimate of a support's dimensional change is:

Here, α is the linear expansion coefficient, L is the original length, and ΔT is the temperature change. This estimates mechanical movement only. It does not predict the lens's optical focus shift.

For focus stability, the important quantity is the difference between two movements, measured from the same mechanical reference:

Two large movements can nearly cancel. Conversely, a mechanically stable detector can still become defocused when the optical best-focus position changes.

Infrared is not one interchangeable optical band. Materials, coatings, and detector requirements differ across SWIR and thermal imaging. Establish the spectral requirements using SWIR and UV lens selection basics before evaluating temperature compensation. A lens's spectral coverage does not, by itself, establish its thermal focus stability.

Passive and active compensation solve different problems

Passive compensation uses material properties and optical or mechanical design to counter temperature-induced focus changes. Active compensation deliberately moves a focusing element or assembly using an actuator and control strategy.

Passive approaches suit applications where focus must remain stable without a focus-control sequence. Their performance still depends on the assembly, its temperature distribution, and the range for which it was designed.

Active compensation is useful when passive residual error exceeds the allowed budget or when working distance also changes. It introduces another subsystem to commission and maintain. A motorized lens is not automatically temperature compensated; the compensation logic and feedback must exist and work.

Hybrid designs are possible. Passive compensation can reduce the drift, leaving an actuator to correct the remaining error. Choose based on measured performance rather than treating either method as inherently superior.

Translate focus movement into an image-quality budget

For a small axial detector displacement, a useful geometric estimate is:

N_eff is the image-side effective f-number. For a distant target, it is approximately the marked f-number. Close-focus systems require an appropriate effective value, and this estimate does not include diffraction or aberrations.

Consider an illustrative assembly, unrelated to the catalog products below:

• Effective support length: 40 mm.
• Support expansion coefficient: 23 × 10⁻⁶ /K.
• Temperature rise: 40 K.
• Calculated optical best-focus movement: +70 μm.
• Image-side effective f-number: 2.

The mechanical movement estimate is:

For a hypothetical detector with 15 μm pixels, that geometric blur diameter is about 16.6 / 15 = 1.1 pixels. This is a scale comparison, not a universal rejection threshold. Actual acceptance depends on diffraction, sampling, target contrast, and the inspection task.

Stopping down reduces geometric defocus sensitivity, but it also reduces collected radiation and increases diffraction blur. At infrared wavelengths, that trade-off can become significant. Object-space depth of field also differs from the image-space focus tolerance calculated above.

Specify a task-based limit instead of demanding that focus movement be zero. For example, you might require normalized contrast at a selected spatial frequency to remain above 90% of its reference value. That is an illustrative acceptance rule; establish the actual threshold from your inspection's measurement or detection performance.

Validate warm-up and temperature-range performance separately

Warm-up testing and stabilized-temperature testing answer different questions. Warm-up reveals transient behavior while internal temperatures diverge. Stabilized testing reveals performance after the assembly approaches thermal equilibrium.

Use the following sequence, staying within every component's documented operating limits:

1. Fix the geometry. Secure the camera, lens, and target at the intended working distance. Record the aperture, focus setting, orientation, and mounting arrangement.
2. Choose an appropriate target. Use a target that produces stable contrast in the actual infrared band. A visible printed chart may not provide useful thermal contrast.
3. Establish the reference. Focus at the agreed reference condition. Record center and corner image-quality measurements without subsequent manual refocusing.
4. Record powered warm-up. Capture frames and available temperature readings from startup. An initial cadence of one frame every 30 seconds for 30 minutes is a reasonable example, not a universal stabilization time.
5. Test stabilized setpoints. Select points spanning the required range. An illustrative sequence is −10, 0, 20, 35, and 50 °C, but use it only if the entire test assembly is rated accordingly.
6. Repeat while cooling. Revisit the setpoints in reverse order to identify hysteresis, mechanical settling, or compensation differences.
7. Repeat critical conditions. Include another power cycle and the worst-performing condition to assess repeatability.

Do not assume that a temperature-control setpoint equals the lens temperature. Record temperatures near the lens and camera reference structure where practical. Define stabilization from both temperature readings and image-quality trends, rather than elapsed time alone.

Any additional test optic must transmit the intended band and be characterized as part of the test path. Otherwise, the setup can introduce an apparent focus or contrast change unrelated to the assembly under evaluation.

For active compensation, log commanded position, actual position if available, and the resulting image metric. Repeat testing with compensation enabled and disabled when the documented controls permit it. This separates the underlying drift from the correction's effectiveness.

Separate optical drift from camera processing

An image that looks softer is not necessarily optically defocused. Automatic display scaling, temporal filtering, sharpening, exposure changes, and thermal correction events can alter apparent detail.

Keep processing settings fixed where the documented controls allow. Prefer consistent raw or minimally processed data, with enough signal to measure the target reliably. Record unavoidable correction events so they can be separated from gradual focus movement.

The workflow for saving high-bitdepth grayscale thermal frames helps preserve useful measurement data. Use identical regions of interest and processing for each temperature condition.

MTF or edge measurements also depend on target stability. In thermal imaging, changing target temperature contrast can change apparent sharpness even with unchanged optics. Normalize measurements appropriately and monitor the target rather than assuming it remains constant.

Focus stability and temperature accuracy require separate acceptance tests. A thermal image can remain sharp while its temperature measurement needs correction, or become blurred while the camera's radiometric calibration remains otherwise valid. The distinction is covered in thermal counts and temperature calibration.

Similarly, detector sensitivity is not a substitute for optical stability. Use thermal sensitivity and lens choice when evaluating the signal and noise budget alongside focus performance.

Request specifications that make the claim testable

A useful supplier response should define more than an athermalized label. Request the following information for the proposed configuration:

• Spectral band: the wavelengths used for design and verification, including any installed filter.
• Temperature range: the range over which optical performance is guaranteed, separately from survival or storage limits.
• Reference temperature: the condition at which focus is initially set.
• Working distance: the distance or distance range covered by the performance claim.
• Detector geometry: active area, pixel pitch, detector position tolerance, and mechanical reference surface.
• Image-quality criterion: absolute MTF or another agreed metric, with spatial frequency and field positions stated.
• Residual focus behavior: focus-position curves where available, including heating and cooling results.
• Thermal conditions: whether measurements use uniform stabilized temperatures or include powered transients.
• Active-control details: correction range, position repeatability, update behavior, and calibration assumptions.
• Assembly dependencies: required spacers, mounting constraints, orientation limits, and restrictions on substitutions.

Check sensor coverage separately. The lens sensor format guide explains why a matching mount does not prove adequate image-circle coverage.

Request evidence at the aperture you will actually use. Data at a smaller aperture may conceal defocus that becomes unacceptable when the lens is opened for more signal.

Use catalog candidates without assuming compensation

Browse thermal, SWIR and UV lenses to establish the correct spectral family, then use the lens finder to narrow the mechanical and optical requirements. Treat athermalization as a separate qualification question unless the relevant product documentation explicitly establishes it.

The LS-SWL-0006 is an LWIR thermal lens example from the catalog. The supplied catalog information does not establish an athermalization specification for it.

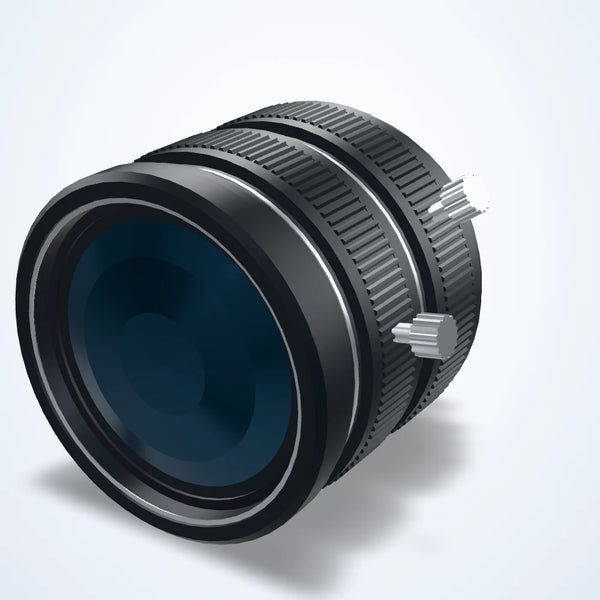

The LS-SWL-0229 is a SWIR lens example. Its spectral classification likewise does not establish a temperature-dependent focus guarantee.

These examples serve different spectral requirements; they are not interchangeable recommendations or a matched comparison. Obtain the relevant focus-stability evidence before selecting either for a temperature-sensitive application.

For detector selection, compare infrared cameras through the camera finder. Confirm the complete optical and mechanical interface, not just the mount designation. Lens performance data cannot establish the assembled camera's thermal focus behavior on their own.

Checks before committing to the design

Use a short acceptance checklist before ordering the final assembly:

• The required band, distance, aperture, and detector geometry are documented.
• Focus stability has a numerical acceptance limit tied to the inspection task.
• Warm-up behavior and stabilized performance are both covered.
• Heating and cooling measurements use the same initial focus reference.
• Center and edge performance are acceptable, not just the best image region.
• Active compensation, if used, meets timing and repeatability requirements.
• The delivered mounting arrangement matches the tested configuration.
• Radiometric accuracy has its own verification plan where temperature measurement matters.

Athermalization may be unnecessary when operation stays close to one stable temperature and documented startup refocusing is acceptable. Conversely, a passive design may be insufficient when distance changes dominate the focus budget. Image-based autofocus can also be the wrong choice when the scene lacks persistent contrast or cannot tolerate a focus search.

Start the lens configuration process with the spectral and geometry requirements. For a focus-stability review, send the operating range, warm-up requirement, detector details, and acceptance metric through application support. Those inputs turn a broad request for an infrared lens into a testable specification.
