Downscaling before barcode decoding: when large modules fail

A crisp, unrotated QR code that the reader simply refuses to find, while every 1D barcode on the same part decodes first try, is usually not a focus or lighting problem. It is a module-size problem. When a 2D matrix symbol is printed large in the field of view, its individual modules can span 8 or more pixels, and some binarizers then break down. Downscaling the image, typically by a factor of 2 to 4, brings the module size back into the range where thresholding and pattern search work. This article explains why that happens, gives you the arithmetic to predict it, and shows when downscaling is the wrong fix.

What a module is and why its size in pixels matters

Every barcode is built from modules: the smallest printed element of the symbol. In a Code 128 the module is the narrow bar width; in a QR code it is the side of one black or white square. A version 1 QR code is 21 modules across, a version 10 is 57, a Data Matrix can be 10 to 144.

The decoder's first job is to decide, for every pixel, whether it belongs to a black or a white module. That decision is made by a binarizer. Global binarizers use one threshold for the whole image. Local binarizers, such as the common local-average method, compute a threshold from the pixels around each point, which makes them robust to uneven illumination but sensitive to scale: their averaging windows are tuned assuming a module is a few pixels wide.

When one module spans many more pixels than the binarizer expects, two failure modes appear:

• The averaging window sits almost entirely inside one large module, so the local threshold collapses and module edges smear.
• The finder-pattern search, which looks for specific black-to-white run-length ratios, matches at several scales at once and rejects the candidate as ambiguous.

Linear 1D codes are far more tolerant. A wide bar that is 20 pixels instead of 10 still has the correct width ratio to its narrow bars, so the same scanline logic decodes it. That is exactly the symptom you see when downscaling is off: 1D codes read, the oversized QR code does not.

The rule of thumb: 2 to 4 pixels per module

In practice, 2D matrix symbols decode most reliably when each module spans about 2 to 4 pixels. The usable window is roughly 1.5 to 8 pixels per module:

• Below about 1.5 pixels per module the symbol is undersampled; adjacent modules merge and the symbol cannot be recovered. This is the classic resolution failure.
• Between about 2 and 8 pixels per module the sampling is good and binarizers behave.
• Above about 8 pixels per module, local-average binarizers begin to misbehave as described above, and detection can fail outright even though the print quality is perfect.

So the failure is a window, not a monotonic limit: making the code bigger in the image can make it worse. That is counterintuitive, and it is why the fix feels strange the first time you meet it.

The arithmetic: predict module size before you commission

Module size in pixels is easy to compute from your optics:

Worked example. A version 1 QR code, 21 modules, printed 21 mm square, sits in a 120 mm wide field of view. Image it with a reader such as the LS-CRD-0028, whose sensor spans 2560 x 2048 pixels:

• Module pitch on the part: 21 mm / 21 = 1.0 mm
• Pixel size in the field: 120 mm / 2560 px = 0.047 mm/px
• Module size: 1.0 / 0.047 = about 21 pixels per module

At 21 pixels per module the symbol sits far above the 8-pixel ceiling. A downscale factor of 4 brings it to about 5 pixels per module, inside the reliable window. A factor of 8 would give 2.6 pixels per module, still fine, but with less margin for print defects, so factor 4 is the better choice here.

Run the same check in reverse when sizing a new station: if the code can appear anywhere in a large field of view, compute module size at the closest and farthest position the part can take, and confirm both land in the 2 to 8 pixel band, or plan for adaptive downscaling.

What downscaling actually does: the image pyramid

Decoding libraries that handle this well build a pyramid: the full image at level 0, a half-size image at level 1, quarter size at level 2, and so on. Each level is the original smoothed and subsampled, so a 21-pixel module at level 0 becomes about 10 pixels at level 1 and 5 at level 2. The library then attempts detection, optionally at several levels, until a candidate decodes.

Two implementation choices matter for you:

• Try-unscaled-first: the robust default. The full image is attempted, and only if detection fails does the library step down. Large-module symbols fail at level 0 and succeed at level 1 or 2; small symbols succeed at level 0 and never pay the cost.
• Fixed downscale: applying one factor unconditionally. Simpler and faster on oversized images, but it will destroy symbols that were already marginal, so only use it when symbol size is tightly controlled.

In one widely used open-source reader, the automatic pyramid attempt ships as a stable, enabled-by-default behaviour, while the manual threshold and factor settings spent time marked experimental before being stabilised. The practical takeaway: prefer the automatic mode unless you have measured a specific reason to pin the factor yourself.

Choosing a reader resolution to fit the code

Software downscaling is a patch; the cleaner fix is optics. If your symbol size and stand-off are fixed, pick a sensor resolution and lens so the module lands at 2 to 4 pixels without any scaling. The relation is:

For that same 21 mm QR code at 3 pixels per module and a 2560-pixel-wide sensor: field of view = 21 × 2560 / (3 × 21) = about 853 mm. Suppose your station only needs a 150 mm field of view. A 1.3 MP reader with a 12 mm lens, such as the MV-ID3013PM-12M-WBN, already over-resolves the symbol badly; that is fine because automatic downscaling handles it, but a lower-resolution variant or a wider field of view would decode with more margin.

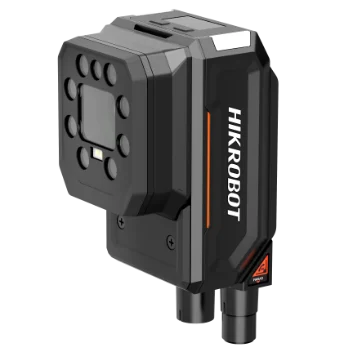

Conversely, when the code is tiny relative to the field, do not rely on downscaling to save you: resolution must come from the sensor. A 12 MP reader like the MV-ID5120RM-08M-RBN gives you the pixel budget to keep small modules above the 1.5-pixel floor. Compare the two situations:

Values as printed in each product's data sheet; open a part for its drawing and full specifications.

Tuning it in your own pipeline

If you decode images yourself rather than using a fixed reader with built-in handling, apply this order:

1. Measure or compute module size in pixels for every code variant in your application.
2. Enable the automatic pyramid or try-downscale behaviour; keep it on even for applications that look well-scaled, because part tolerance will move module size.
3. Verify read rate at the extremes: largest and smallest expected symbol, best and worst lighting. The multiple QR codes not reading: isolate image and search faults method works here: save the failing image and test it in isolation.
4. Only pin a fixed downscale factor if profiling shows the automatic search costs you cycle time, and only when symbol size variance is under about 20 percent.
5. Log the pyramid level each read succeeded at. If reads cluster at level 2 or deeper, your optics are mismatched and you are spending processing time compensating.

Note that downscaling helps the detection stage but cannot recover information that was never sampled. If a code fails because of blur, glare or angle, no pyramid level will save it; work the actual cause, as covered in 1D barcode preprocessing for rotation, blur and glare.

When the usual answer is wrong

Downscaling is the wrong tool in three common cases:

• Undersampled symbols. If your modules are already at or below 1.5 pixels, downscaling guarantees failure. Fix the optics: narrower field of view, closer stand-off, or a higher-resolution sensor such as a 6 MP logistics reader like the MV-IDS006M-12C-C.
• Very small Data Matrix codes on PCBs and machined parts. These live at the low-pixel end where every pixel counts; smoothing before subsampling can erase 1-pixel features. Decode at full resolution.
• Mixed symbol sizes in one field. A fixed factor helps one symbol and hurts the other. Use automatic per-attempt scaling, or split the field across two readers with lenses sized to each symbol.

Checks before you order or deploy

• Compute module size in pixels for every code version and size in your tolerance band; keep all of them in the 1.5 to 8 pixel window, ideally 2 to 4.
• Confirm the reader or library attempts multiple pyramid levels, not a fixed downscale.
• Test with the symbol printed at both tolerance extremes, not just nominal.
• Verify that downscaling does not push your cycle time over budget; each extra level roughly quarters the image but adds an attempt.
• For structured-light or laser-marked codes with low contrast, fix the lighting first; see which LED colour gives the best contrast in machine vision.

Downscaling is a small, low-overhead mechanism that closes a real gap: 2D symbols with very large modules can be invisible to otherwise sound binarizers. Compute your module size in pixels, make sure your decoder searches the pyramid automatically, and reserve fixed scaling for tightly controlled symbol sizes. If you are specifying a station from scratch, the fixed code readers finder filters by resolution so you can match sensor pixels to your symbol before wiring anything, and the camera finder narrows by interface and shutter if you need those constraints too. For help running the numbers on your own symbol, use the camera resolution calculator or contact us.
