Machine vision lenses

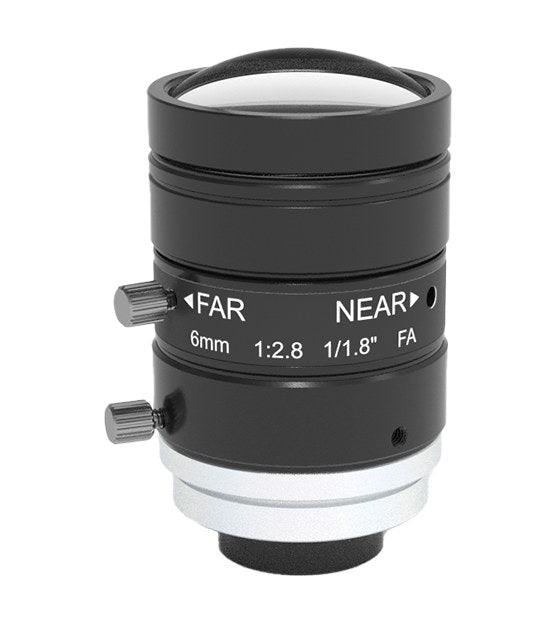

6 mm F2.8 6 MP C-Mount Machine Vision Lens, 1/1.8"
Model LS-YT60016-6MP
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 - F16
- Resolution6 MP
- Field of view63.5 H x 44.8 V x 74.8 D degrees
$129.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Low-distortion 6 mm fixed-focal-length C-mount lens for 6 MP cameras with sensors up to 1/1.8". A wide 74.8 degree diagonal field of view and 0.08 m minimum object distance suit close-range inspection of large parts; lockable focus and iris hold settings on vibrating machines.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Minimum object distance | 0.08 m |
|---|---|
| Construction | 11 elements in 9 groups |
Optics
| Focal length | 6 mm (5.94 mm at MOD, 6.07 mm at infinity) |
|---|---|
| Aperture | F2.8 - F16 |
| Field of view (1/1.8") | 63.5 H x 44.8 V x 74.8 D degrees |
| Distortion (TV) | -0.23% at MOD, -0.04% at 0.3 m |
| Relative illumination | 63% |
Sensor and imaging
| Sensor format | Up to 1/1.8" (image circle 9.4 mm) |
|---|---|
| Resolution | 6 MP |
Environment and compliance
| Compliance | RoHS |
|---|
Mechanical
| Mount | C-mount (flange back 17.526 mm) |
|---|---|
| Length | 57.9 mm (at infinity) |
| Net weight | 67 g |
Specifications from the lens manufacturer's data sheet.
