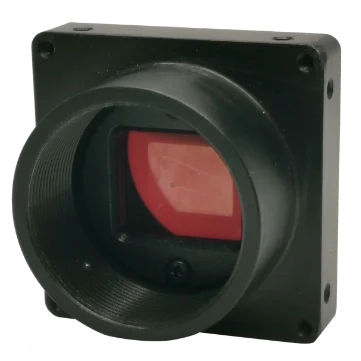

Hikrobot MV-CB016-10UM-C 1.6 MP Board Level Camera, USB3, IMX273, Mono, C-mount
MV-CB016-10UM-C
- Resolution 1440 × 1080
- Sensor CMOS, global shutter
$209.00
Not available in the United States
Vision controllers
Hikrobot MV-VC3102H-128G66 G4900, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported, Incl. VM6200Pro license
Model MV-VC3102H-128G66Hikrobot
- ProcessorIntel® Celeron® G4900
- Memory8 GB
- Network6 × Intel GigE ports
- GPUIntel® HD Graphics 610
- OSWindows 10 64-bit, Not activated
$2,319.00
Ships in 2-3 weeks
3.04 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Ask an engineerBrowse Vision controllers
lumaspecvision.com/products/lumaspec-mv-vc3102h-128g66
MV-VC3102H-128G66 is a vision controller with an Intel Celeron G4900 (128G SSD and 2T HDD storage). You also get 8 GB of memory and a network interface of 6 x Intel GigE ports.
VM6200Pro license.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Final sale Hikrobot products cannot be returned or exchanged; a defective or wrong item is covered by the warranty. Return policy
CertificationsCEKC
Specifications
General
| Model | MV-VC3102H-128G66 |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
|---|---|
| Digital I/O | 8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable) |
| Network interface | 6 × Intel GigE ports |
| USB Interface | USB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1 |
| Serial Port | 2× full-function RS-232, RS-485/RS-422 switchable |
| Light interface | 4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 150 W |
| Extended interface | 1× PCIe 3.0 x16 slot |
Environment and compliance
| Temperature | 0 to 50 °C |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Celeron® G4900 |
|---|---|
| Memory | 8 GB |
| Storage | 128G SSD and 2T HDD, 1 × mSATA expansion slot |
| GPU | Intel® HD Graphics 610 |
| Operating system | Windows 10 64-bit, Not activated |
| Encryption method | Includes VM6200Pro encryption |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 95 W |
Mechanical
| Dimension | 161.4 mm × 208.5 mm × 105.5 mm |
|---|---|
| Weight | Approx. 2.1 kg |
| Shipping weight (estimated) | 3.04 kg |
Downloads
Size
To scale, from the printed dimensionsFeatures
- The same series also comes with Celeron G6900, Celeron G7400, i3 and 9 more
- Draws up to 95 W: about 4 A from its 24 V supply
- Weighs about 2.1 kg
- Desktop-class 8th-gen Intel CPU for powerful computing performance
- GPIO support; outputs switchable between NPN and PNP
- PCIe 3.0 x16 interface
- Optional built-in USB port for easy on-site deployment and maintenance
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
The MV-VC3102H-128G66 at a glance
CPUIntel Celeron G4900
GPUIntel HD Graphics 610
Storage128G SSD and 2T HDD
Light outputs4 × 24 V DCconstant voltage; max. 72 W per channel
Compatible parts
Fits with this part
Checked against the PC's printed camera ports: GigE cameras on its LAN ports, USB3 cameras on its USB 3 ports, 10GigE cameras only on a printed 10 GbE port.
Cameras for this PC's ports
Plugs into one of its 4 USB 3 ports
Hikrobot MV-CS050-10UC 5 MP Area Scan Camera, USB3.0, IMX264, 2nd Gen., Color
MV-CS050-10UC
- Resolution 2448 × 2048
- Sensor CMOS, global shutter
$859.00
Not available in the United States
Plugs into one of its 4 USB 3 ports
Hikrobot MV-CL042-91GC 4K GigE Line Scan Camera, Color
MV-CL042-91GC
- Resolution 4096 × 2
- Sensor CMOS
$1,459.00
Not available in the United States
Plugs into one of its 6 GigE ports
Hikrobot MV-CH100-60GC 10 MP Area Scan Camera, GigE, Color
MV-CH100-60GC
- Resolution 4096 × 2460
- Sensor CMOS, global shutter
$1,139.00
Not available in the United States
Plugs into one of its 6 GigE ports
Hikrobot HK-SX-05KMG-H 5 MP 2/3" CMOS Gigabit Ethernet industrial area scan camera
HK-SX-05KMG-H
- Resolution 2448 × 2048
- Sensor CMOS, global shutter
$819.00
Not available in the United States
Plugs into one of its 6 GigE ports
Hikrobot MV-CT1CG0200/R/NN/NN 20 MP Area Scan Camera, 3rd Gen., GigE, Color, PRO
MV-CT1CG0200/R/NN/NN
- Resolution 5472 × 3648
- Sensor CMOS, rolling shutter
$1,409.00
Not available in the United States
Plugs into one of its 6 GigE ports
Before you buy
Questions about the MV-VC3102H-128G66
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What can the MV-VC3102H-128G66 connect to?
The network interface is 6 × Intel GigE ports. The USB interface is USB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1. The serial port is 2× full-function RS-232, RS-485/RS-422 switchable. The digital I/O is 8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable).
Can the MV-VC3102H-128G66 drive lights directly?
Yes - the light interface is 4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 150 W.
What comes installed in the MV-VC3102H-128G66?
The operating system is Windows 10 64-bit, Not activated.
What power supply does the MV-VC3102H-128G66 need?
It runs on 24 VDC and draws 95 W.
What temperature range is the MV-VC3102H-128G66 rated for?
Its rated temperature range is 0 to 50 °C.
Learn
Guides for this part
Engineering guides picked for the MV-VC3102H-128G66: how to choose it, set it up and get a better image.
Vision queue conveyor speed control for continuous pickingVision queue conveyor speed control adjusts belt speed from valid, unpicked target occupancy rather than raw camera detections.
Gripper rotation between pick and place: diagnose full turnsUnnecessary gripper rotation between pick and place can come from angle representation, an intermediate target, or a different joint configuration—not the detected part angle alone.
Dual suction cup sequencing for conveyor vision pickingDual suction cup sequencing needs a gripper state machine that assigns each target to a cup, controls cylinders separately from vacuum, and verifies pickup and retraction before advancing.
Other models in the VC3000 series Vision Controller series
See all 113 models in the seriesHow this model compares
- Same specifications as MV-VC3101H-128G66 except the storage row.
- Compared with MV-VC3201H-128G66: CPU Intel® Celeron® G4900 here, Intel® Celeron® G5400 there.
Swipe to see all columns
| Model | Processor | Memory | Network | Size | Encryption method | Price | Availability | Link |
|---|---|---|---|---|---|---|---|---|
| MV-VCC3101H-128G60 | Intel® Celeron® G4900 | 8 GB | 6 × Intel GigE ports | G4900, 8GB+128G SSD | $2,079.00 | Ships in 2-3 weeks | View | |
| MV-VCC3102H-128G60 | Intel® Celeron® G4900 | 8 GB | 6 × Intel GigE ports | G4900, 8GB+128G SSD+2T HDD | $2,079.00 | Ships in 2-3 weeks | View | |
| MV-VC3101H-128G66 | Intel® Celeron® G4900 | 8 GB | 6 × Intel GigE ports | G4900, 8GB+128G SSD | Includes VM6200Pro encryption | $2,319.00 | Ships in 2-3 weeks | View |
| MV-VC3102H-128G66This model | Intel® Celeron® G4900 | 8 GB | 6 × Intel GigE ports | G4900, 8GB+128G SSD+2T HDD | Includes VM6200Pro encryption | $2,319.00 | Ships in 2-3 weeks | |
| MV-VC3201H-128G66 | Intel® Celeron® G5400 | 8 GB | 6× Gigabit Ethernet ports | G5400, 8GB+128G SSD | Includes VM6200Pro encryption | $2,319.00 | Ships in 2-3 weeks | View |
| MV-VC3202H-128G66 | Intel® Celeron® G5400 | 8 GB | 6× Gigabit Ethernet ports | G5400, 8GB+128G SSD+2T HDD | Includes VM6200Pro encryption | $2,319.00 | Ships in 2-3 weeks | View |
| MV-VC3501H-128G66 | Intel® Core i5-8500 | 8 GB | 6× Gigabit Ethernet ports | I5-8500, 8GB+128G SSD | Includes VM6200Pro encryption | $3,209.00 Quote | Ships in 2-3 weeks | View |
| MV-VC3701H-128G66 | Intel® Core i7-8700 | 8 GB | 6× Gigabit Ethernet ports | I7-8700, 8GB+128G SSD | Includes VM6200Pro encryption | $4,069.00 Quote | Ships in 2-3 weeks | View |
| MV-VC3704H-128G66 | Intel® Core i7-8700 | 8 GB×2 | 6× Gigabit Ethernet ports | I7-8700, 16GB+128G SSD+2T HDD | Includes VM6200Pro encryption | $4,069.00 Quote | Ships in 2-3 weeks | View |
