Hikrobot MV-VC2140-128G40-NN VC2100 Vision Controller, N97, 8GB+128G SSD
  • Hikrobot MV-VC2140-128G40-NN VC2100 Vision Controller, N97, 8GB+128G SSD
  • MV-VC2140-128G40-NN dimensions (mm)

Vision controllers

Hikrobot MV-VC2140-128G40-NN VC2100 Vision Controller, N97, 8GB+128G SSD

Model MV-VC2140-128G40-NNHikrobot

  • ProcessorIntel® Processor N97
  • Memory8 GB
  • Storage128 GB SSD
  • NetworkGigE interface × 4
  • GPUIntel® UHD Graphics
$1,499.00

Ships in 2-3 weeks

2.9 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Vision controllers

lumaspecvision.com/products/lumaspec-mv-vc2140-128g40-nn

This vision controller has 8 GB of memory (166 x 206 mm-housing, 128 GB SSD storage) (MV-VC2140-128G40-NN), one of the two memory sizes in its series, for lighter jobs.

Its serial ports (RS-232 × 1, supports switching to RS-485 or RS-422) connect PLCs and other line equipment. At 166 x 205.6 x 86 mm and about 2 kg, mount it on a rigid bracket. Rated 0 to 50 °C, it suits an indoor factory floor.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Final sale Hikrobot products cannot be returned or exchanged; a defective or wrong item is covered by the warranty. Return policy

CertificationsCEKC

Specifications

General

ModelMV-VC2140-128G40-NN
BrandHikrobot

Interfaces and I/O

Video outputHDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/OOpto-isolated input × 8; Opto-isolated output × 8
Light interfaceLight interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
Network interfaceGigE interface × 4
USB InterfaceUSB 2.0 × 2; USB 3.0 × 2
Serial PortRS-232 × 1, supports switching to RS-485 or RS-422

Environment and compliance

TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
CertificationCE, KC

Computing

CPUIntel® Processor N97
Memory8 GB
Storage128 GB SSD
GPUIntel® UHD Graphics
Operating systemUnactivated 64-bit Windows 10 LTSC 21H2
Encryption methodNot support

Electrical

Power supply24 VDC
Power consumptionTyp. 51 W (without light source)

Mechanical

Dimension166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4")
WeightApprox. 2 kg (4.4 lb.)
Shipping weight (estimated)2.90 kg

Features

  • Smaller memory than the 16 GB version
  • 128 GB SSD storage
  • CE and KC compliant
  • Intel® Alder Lake-N processor to provide calculation
  • GPIO function
  • 4-channel light source control
  • GigE interfaces for stable data transmission
  • Built-in USB interface or dongle is optional
  • Draws typically 51 W (without light source)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this partConfigure a systemAsk an engineer

Engineering data

The MV-VC2140-128G40-NN at a glance

CPUIntel N97
GPUIntel UHD Graphics
Light outputs4 × 24 V DCconstant voltage

Compatible parts

Fits with this part

Checked against the PC's printed camera ports: GigE cameras on its LAN ports, USB3 cameras on its USB 3 ports, 10GigE cameras only on a printed 10 GbE port.

Build the full system with this part

Cameras for this PC's ports

Plugs into one of its 4 GigE ports

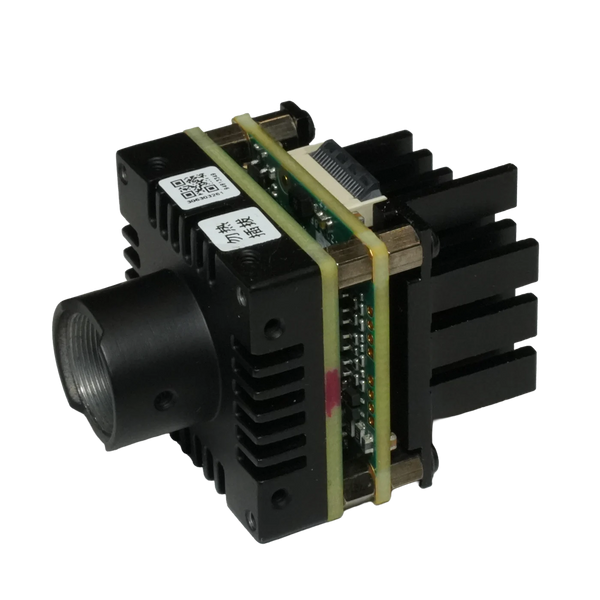

Plugs into one of its 2 USB 3 ports

Plugs into one of its 4 GigE ports

Plugs into one of its 2 USB 3 ports

Plugs into one of its 4 GigE ports

Plugs into one of its 2 USB 3 ports

Before you buy

Questions about the MV-VC2140-128G40-NN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

What can the MV-VC2140-128G40-NN connect to?

The network interface is GigE interface × 4. The USB interface is USB 2.0 × 2; USB 3.0 × 2. The serial port is RS-232 × 1, supports switching to RS-485 or RS-422. The digital I/O is Opto-isolated input × 8; Opto-isolated output × 8.

Can the MV-VC2140-128G40-NN drive lights directly?

Yes - the light interface is Light interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control).

What comes installed in the MV-VC2140-128G40-NN?

The operating system is 64-bit Windows 10 LTSC 21H2 (not activated).

What power supply does the MV-VC2140-128G40-NN need?

It runs on 24 VDC. The power consumption is Typ. 51 W (without light source).

What temperature range is the MV-VC2140-128G40-NN rated for?

Its temperature ratings are working temperature 0 °C to 50 °C (32 °F to 122 °F); storage temperature –30 °C to 70 °C (–22 °F to 158 °F).

Other models in the VC2000 series Vision Controller series

See all 27 models in the series

How this model compares

ModelMemoryStorageEncryption methodPower consumptionPriceAvailabilityLink
MV-VC2140-128G40-NNThis model8GB128 GB SSDNot supportedTyp. 51 W (without light source)$1,499.00 Ships in 2-3 weeks
MV-VC2143-128G40-NN8GB128 GB SSDNot supportedTyp. 71 W (without light source)$1,499.00 Ships in 2-3 weeks View
MV-VC2140-128G46-NN8GB128G SSDIncludes VM6200pro encryptionTyp. 51 W (without light source)$1,499.00 Ships in 2-3 weeks View
MV-VC2140-128G44-NN8GB128G SSDIncludes VM4200 license keyTyp. 51 W (without light source)$1,499.00 Ships in 2-3 weeks View
MV-VC2141-128G40-NN16GB128G SSDTyp. 51 W (without light source)$1,569.00 Ships in 2-3 weeks View
MV-VC2141-256G40-NN16GB256G SSDTyp. 51 W (without light source)$1,609.00 Ships in 2-3 weeks View
MV-VC2140-128G40-1T8GB128 GB SSD + 1 TB HDDNot supportedTyp. 51 W (without light source)$1,679.00 Ships in 2-3 weeks View
MV-VC2143-128G40-1T8GB128 GB SSD + 1 TB HDDNot supportedTyp. 71 W (without light source)$1,679.00 Ships in 2-3 weeks View
MV-VC2140-128G46-1T8GB128 GB SSD + 1 TB HDDIncludes VM6200pro encryptionTyp. 51 W (without light source)$1,679.00 Ships in 2-3 weeks View
