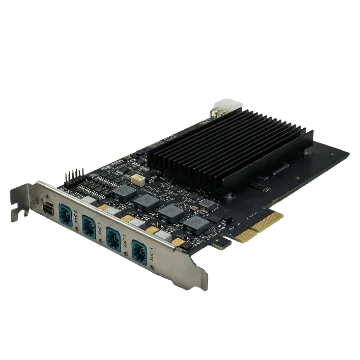

Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version
  • Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version

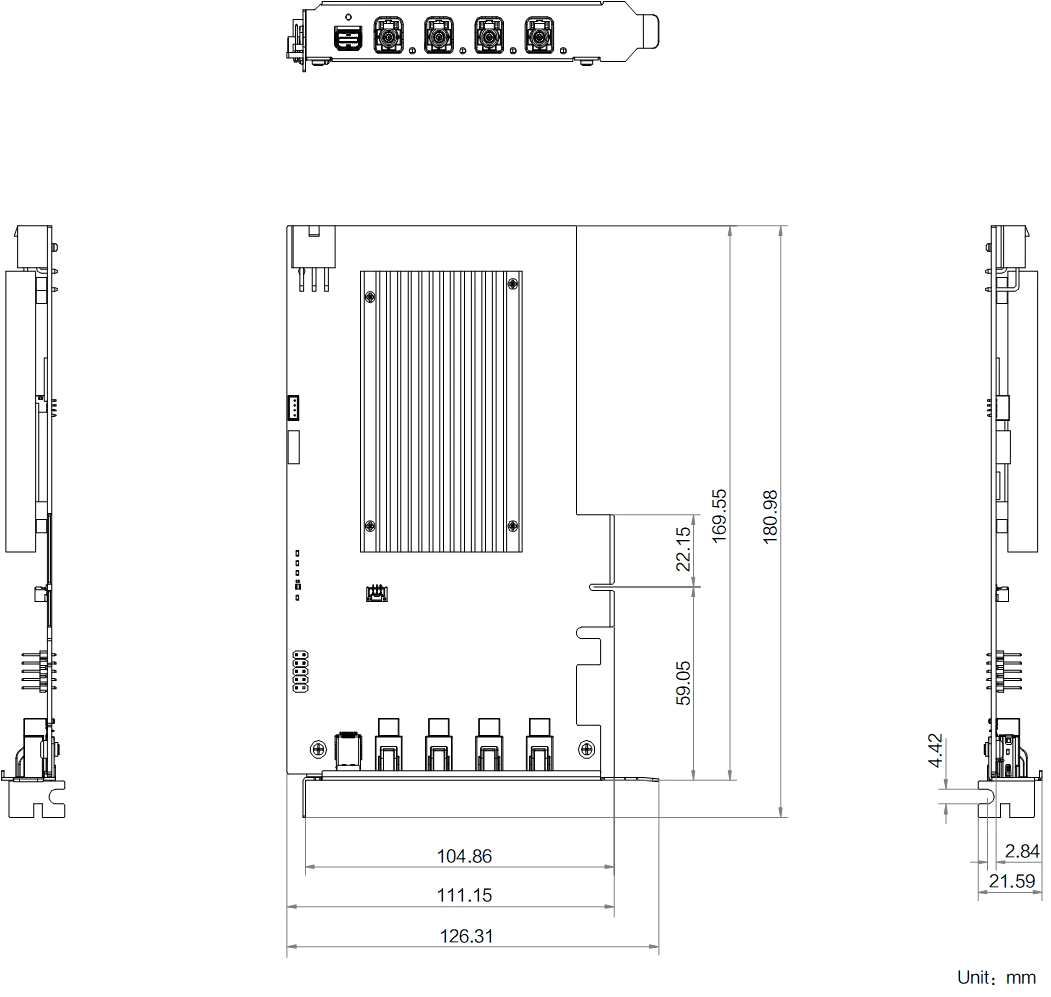

  • MV-GA1004 dimensions (mm)

Frame grabbers

Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version

Model MV-GA1004Hikrobot

  • InterfacePCI-E gen3 × 4
  • Size181 mm × 126.3 mm × 21.6 mm
  • Ports4 ports
  • On-board memory1 GB DDR4-RAM
$1,949.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version. Supports the XoCLink coaxial transmission protocol, up to 6.4 Gbps per channel PoXoC power, up to 13 W per channel

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelMV-GA1004
BrandHikrobot
InterconnectPCI-E gen3 × 4
Bus indicator1
StandardXoCLink
Camera type supportedXoCLink industrial camera
Camera quantity supported4 at most
Camera connection speed6.4 Gbps
Stream4
Stream indicator4

Sensor and imaging

Pixel formatMono 8/10/12/16; Bayer 8/10/12/16; RGB 8, BGR 8

Interfaces and I/O

Interface4 × MiniFAKRA
I/O Type11 configurable inputs/outputs, Single-ended/differential compatible, multi-card cascading supported; Bracket I/O: Line 0 to 7, 3.3 V to 24 V input/output; Pin-header I/O: Line 8 to 10, 3.3 V to 12 V input, 3.3 V output
ConnectorI/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes)
Client softwareMVS

Environment and compliance

TemperatureWorking temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity10% RH to 95% RH (no condensation)
CertificationRoHS, CE, KC

Computing

On-board memory1 GB DDR4-RAM
Operating systemWindows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux

Electrical

Power outputPoC, Up to 13 W @ 24 VDC per channel
Power consumption9.7 W (excluding PoC)

Mechanical

Delivery bandwidth3900 MB/s (peak bandwidth); 3350 MB/s (sustained bandwidth)
Dimension181 mm × 126.3 mm × 21.6 mm
Shipping weight (estimated)0.38 kg
