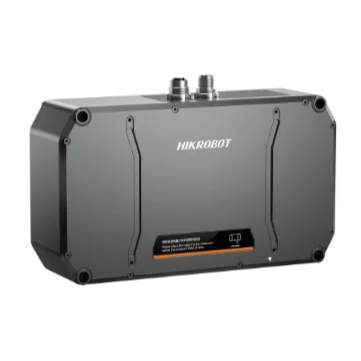

Hikrobot MV-DS5040-02H 3D structured-light sensor
Model MV-DS5040-02HHikrobot
- Resolution2472 × 2064
- InterfaceGige Ethernet
- TypeLaser profiler
- Reference distance100 mm
Price on request
Ships in 2-3 weeks
2.76 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DS5040-02H 3D structured-light sensor. Phase-shift structured-light encoding/decoding with sub-micron precision Multi-core asynchronous hardware processing architecture, frame rate up to 9 fps
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DS5040-02H |
|---|---|
| Brand | Hikrobot |
| Reference distance | 100 mm |
| Measurement range (Z-axis) | ±5 mm @ reference distance |
| Repeatability (Z-axis)* | <0.1 μm |
Optics
| Field of view | 38.4 mm × 32.1 mm @ near FOV; 40 mm × 33.4 mm @ reference FOV; 41.6 mm × 34.7 mm @ far FOV |
|---|
Sensor and imaging
| Image resolution | 2472 × 2064 |
|---|---|
| Full-cycle frame rate | 3 fps @ 5.1 M; 9 fps @ 1.3 M |
| Pixel pitch | 0.016 mm |
Interfaces and I/O
| Data interface | Gige Ethernet |
|---|---|
| Digital I/O | 12-pin circular connector provides power and I/O: 1 opto-isolated input, 1 differential inputs, 1 differential outputs |
| Client software | 3DMVS, VM3D and other third-party 3D software |
Light
| Light source type | Blue LED |
|---|---|
| Light source wavelength | 450 nm |
Environment and compliance
| Ingress protection | IP67 |
|---|---|
| Temperature | Operating temperature: 0 °C to 45 °C; Storage temp.: -10 °C to 60 °C |
| Humidity | 20% to 85% (non-condensing) |
| Certification | CE, RoHS |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits (8G RAM, i5 processor) |
|---|
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 25 W@24 VDC |

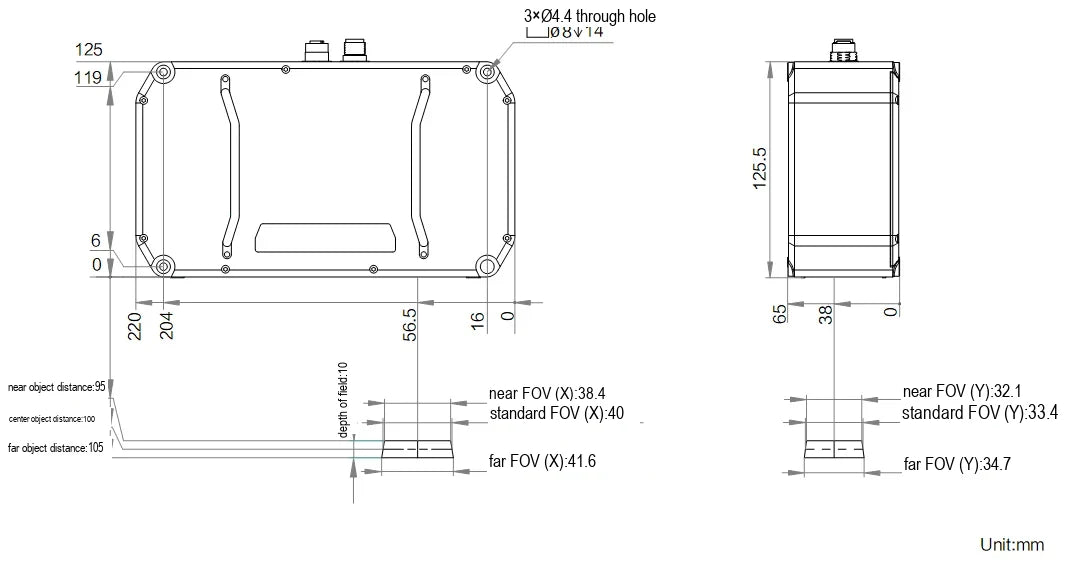

Mechanical
| Dimension | 220 mm × 125.5 mm × 65 mm |
|---|---|
| Weight | 1.9 kg |
| Shipping weight (estimated) | 2.76 kg |
