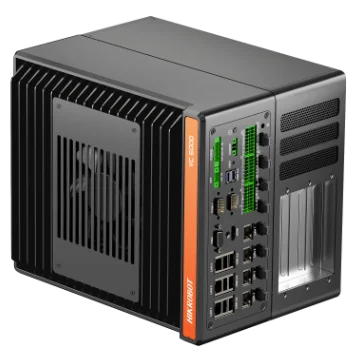

Hikrobot MV-AIBOX26 Series AI Vision Controller
Model MV-AIBOX26Hikrobot
- Memory32 GB
- Storage256 GB SSD and 2T HDD
- OSWindows 11
- LAN ports5+ LAN ports
$4,849.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
10.6 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-AIBOX26 Series AI Vision Controller. Adopts 12th generation Intel® CPU to offer strong performance. Provides PCIe expansion slot to connect to image frame grabber or graphics card.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-AIBOX26 |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same; time Max. resolution 1920 × 1080 @ 60 Hz; Max. resolution 1920 × 1080 @ 60 Hz |
|---|---|
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 12 ( supports NPN/PNP switching), digital-isolated low-side driver; output × 8 Non-isolated bi-directional differential I/O × 4 |
| Network interface | GigE interface × 7, including interface for PoE × 4 |
| USB Interface | USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1 |
| Serial Port | RS-232 × 2 by default, supports switching to RS-485 and RS-422 |
| Light interface | 24 VDC constant voltage × 8; (Max. power consumption of single channel is 72 W, total max. power consumption 190 W) |
| Extended interface | SATA 3.0 interface × 2, M.2 NVME interface × 1; PCIe × 16 extended interface × 1, PCIe × 8 extended interface × 1, PCIe × 4 extended interface × 2 (When the PCIe × 8 extended interface is used, the PCIe × 16 will only provide half of the bandwidth.), Lighting controller expansion module |
Environment and compliance
| Temperature | Graphics card used: 0 °C to 45 °C (32 °F to 113 °F); Graphics card not used: 0 °C to 50 °C (32 °F to 122 °F); Graphics card not used: 0 °C to 50 °C (32 °F to 122 °F) |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Core™ i7-12700 (12 cores- 20 threads, 3.6Ghz) |
|---|---|
| Memory | 32 GB |
| Storage | 256 GB SSD and 2T HDD |
| GPU | Intel® UHD Graphics 770, Render GPU supported |
| Operating system | Windows 11 |
| Chip | Q670 Industrial |
Electrical
| Power supply | 24 VDC (4-pin interface for system power supply); 24 VDC (2-pin interface for graphics card power supply) |
|---|---|
| Power consumption | Typ. 384 W(4-pin interface for system power supply); Typ. 228 W (2-pin interface for graphics card power supply) |
Mechanical
| Dimension | 302.3 mm × 248 mm × 210 mm (11.9" × 9.8" × 8.3") |
|---|---|
| Weight | Approx. 7.5 kg (16.5 lb.) |
| Shipping weight (estimated) | 10.60 kg |
