Telecentric lenses

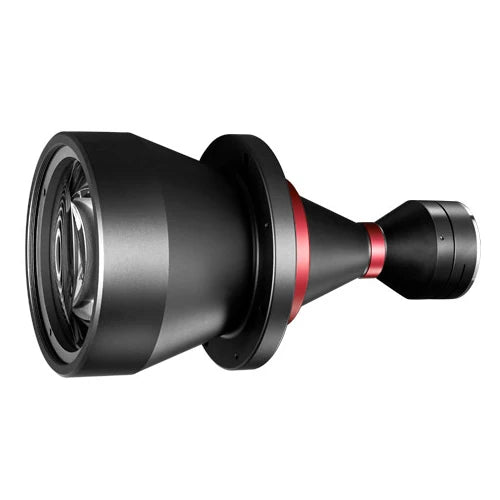

Bi-telecentric lens, 0.291x, WD 238 mm, 1.75", F-mount (LS-TCL-2654)
Model LS-TCL-2654
- MountF-mount
- Sensor1.75"
- Working distance238 ± 3
- Field of view77.4x58.0
$3,149.00
Ships in 2-3 weeks
4.68 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-TCL-S81 Series F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2654 |
|---|---|
| Mag. | 0.291x |
| FOV | 100mm |
Optics
| Working distance (mm) | 238 ± 3 |
|---|---|
| Best Aperture (F/#) | 8.5 |
| MTF30 (lp/mm) | >85 |
| Depth of field (mm) | ±4 |
| Field of view with CMV12000 (22.53x16.9 sensor) (mm x mm) | 77.4x58.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 29 ( 1.75") |
|---|
Interfaces and I/O
| Length of I/O (mm) | 580.8 |
|---|

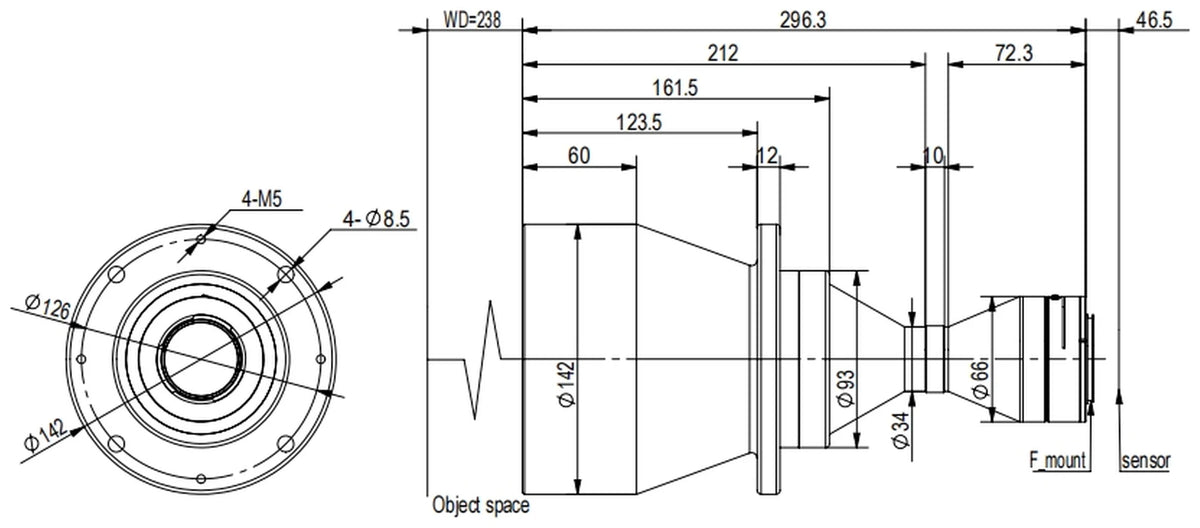

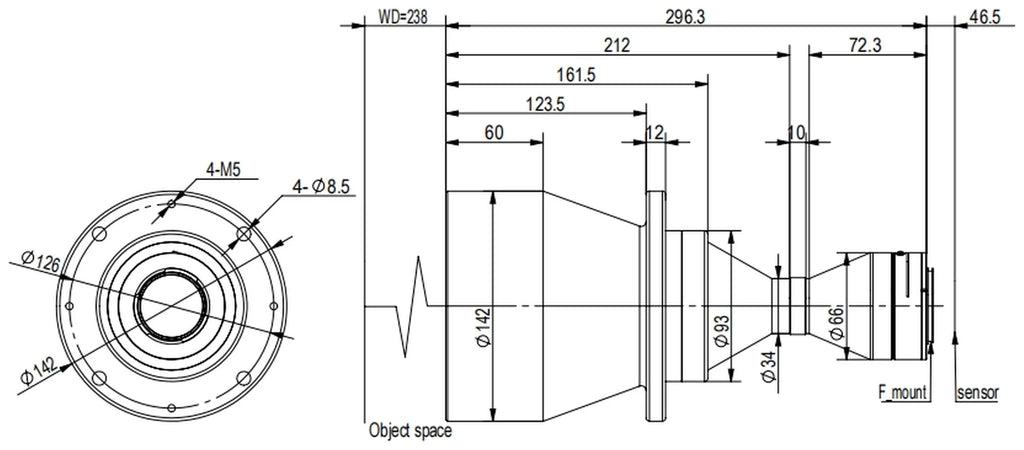

Mechanical
| Mount | F |
|---|---|
| Length (mm) | 296.3 |
| Weight (kg) | 3.27 |
