Standard 5 MP telecentric lens
  • Standard 5 MP telecentric lens

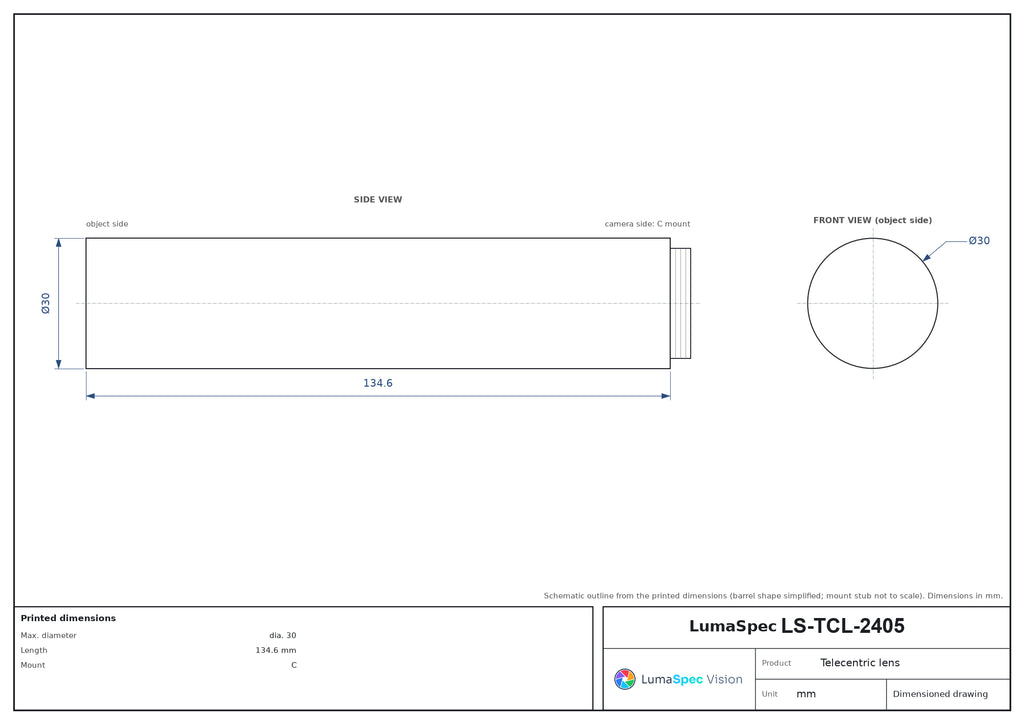

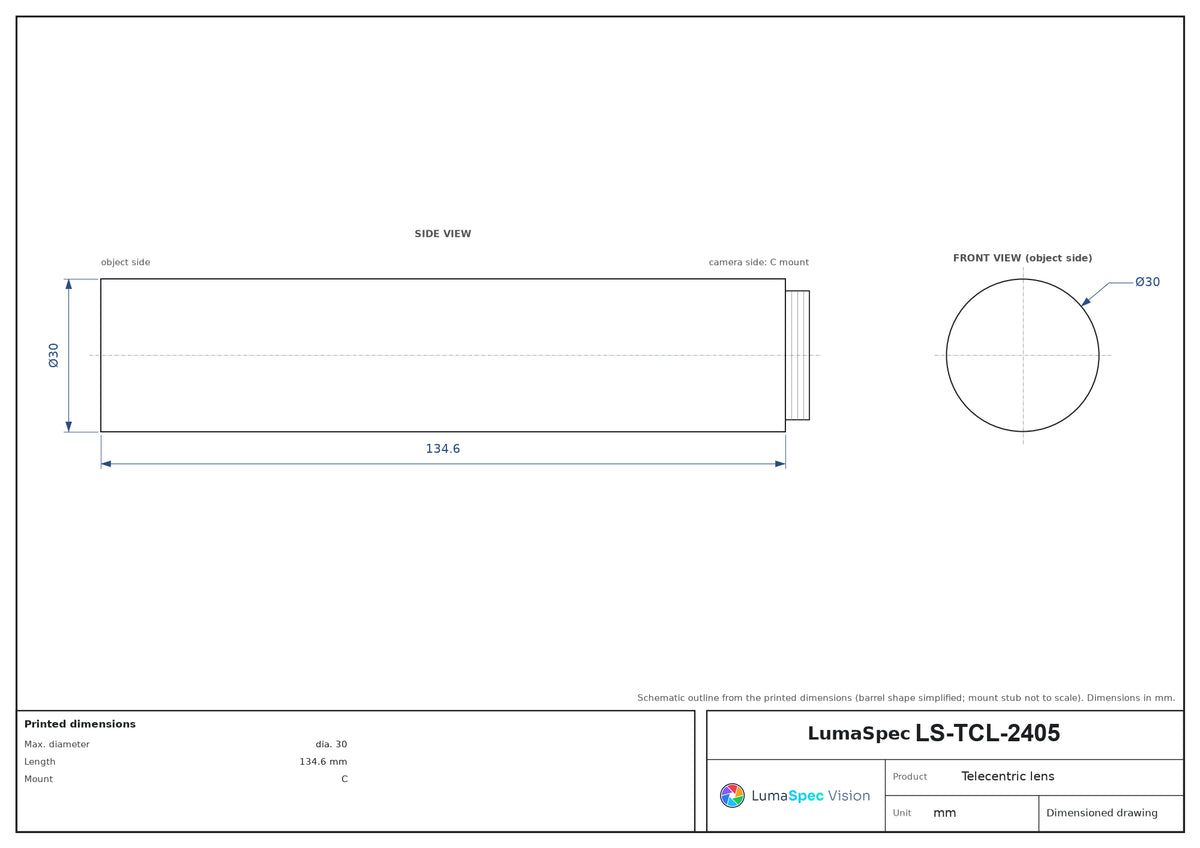

  • LS-TCL-2405 dimensions (mm)

Telecentric lenses

Standard 5 MP telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 134.6 mm long (LS-TCL-2405)

Model LS-TCL-2405

  • Magnification1x
  • MountC-mount
  • Sensor2/3"
  • Working distance110 mm
  • Aperture1:11
  • Resolution5 MP
$1,239.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard 5 MP telecentric lens, 1x, WD 110 mm, 2/3", C-mount, 134.6 mm long (LS-TCL-2405)LS-TCL-2405

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Standard 5 million pixel telecentric lenses with low distortion (< 0.02%), 16mm outer diameter compact options for narrow spaces, and magnifications 2.0X, 1.5X, 1.0X, 0.8X and 0.5X.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2405
WD (mm)110
Max. supporting target surface2/3"

Optics

Magnification (x)1
Aperture F/#1:11
Distortion (%)<0.1
Telecentricity (deg.)<0.05
Depth of field @40um+/-0.1mm
Coaxial illuminationno
Working distance (mm)110

Sensor and imaging

Resolution5 MP
Image space resolution (μm)5
Sensor format2/3"

Mechanical

MountC
Max. diameter (mm)dia. 30
Length (mm)134.6
Weight (kg)0.149

Photo shows several lenses of this series; see the specifications for this model's working distance.

Other models in the Standard 5 MP telecentric lens (LS-TCL-S67) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2404 0.8x, WD 110 mm, 2/3", C-mount $1,199.00 Ships in 2-3 weeks View
LS-TCL-2399 0.8x, WD 110 mm, 2/3", C-mount $1,199.00 Ships in 2-3 weeks View
LS-TCL-2407 2x, WD 40 mm, 1/1.8", C-mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2402 2x, WD 40 mm, 1/1.8", C-mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2400 1x, WD 110 mm, 2/3", C-mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2403 0.5x, WD 110 mm, 2/3", C-mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2398 0.5x, WD 110 mm, 2/3", C-mount $1,309.00 Ships in 2-3 weeks View
LS-TCL-2406 1.5x, WD 40 mm, 1/1.8", C-mount $1,359.00 Ships in 2-3 weeks View
LS-TCL-2401 1.5x, WD 40 mm, 1/1.8", C-mount $1,359.00 Ships in 2-3 weeks View
