Telecentric lenses
0.14x, WD 190 mm, 1/2.5", C-mount Telecentric Lens (LS-TCL-2271)
Model LS-TCL-2271
- Magnification0.14x
- MountC-mount
- Sensor1/2.5"
- Working distance190 mm
- Aperture8
$2,699.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.14x, WD 190 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.14x; working distance 190 mm; max sensor size 7.2 mm (1/2.5"); object-side resolution 38.1 µm; image-side f/# 8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2271 |
|---|
Optics
| Magnification (x) | 0.14 |
|---|---|
| Working distance (mm) | 190 |
| Image-side F/# | 8 |
| Image-side MTF30 (lp/mm) | >100 |
| Theoretical depth of field (mm) | ±16.3@F8 |
| Object-side resolution (um) | 38.1 |
| Numerical aperture NA | 0.0088 |
| Image-side distortion (% max) | <0.2 |
| Object-side telecentricity (deg max) | <0.1 |

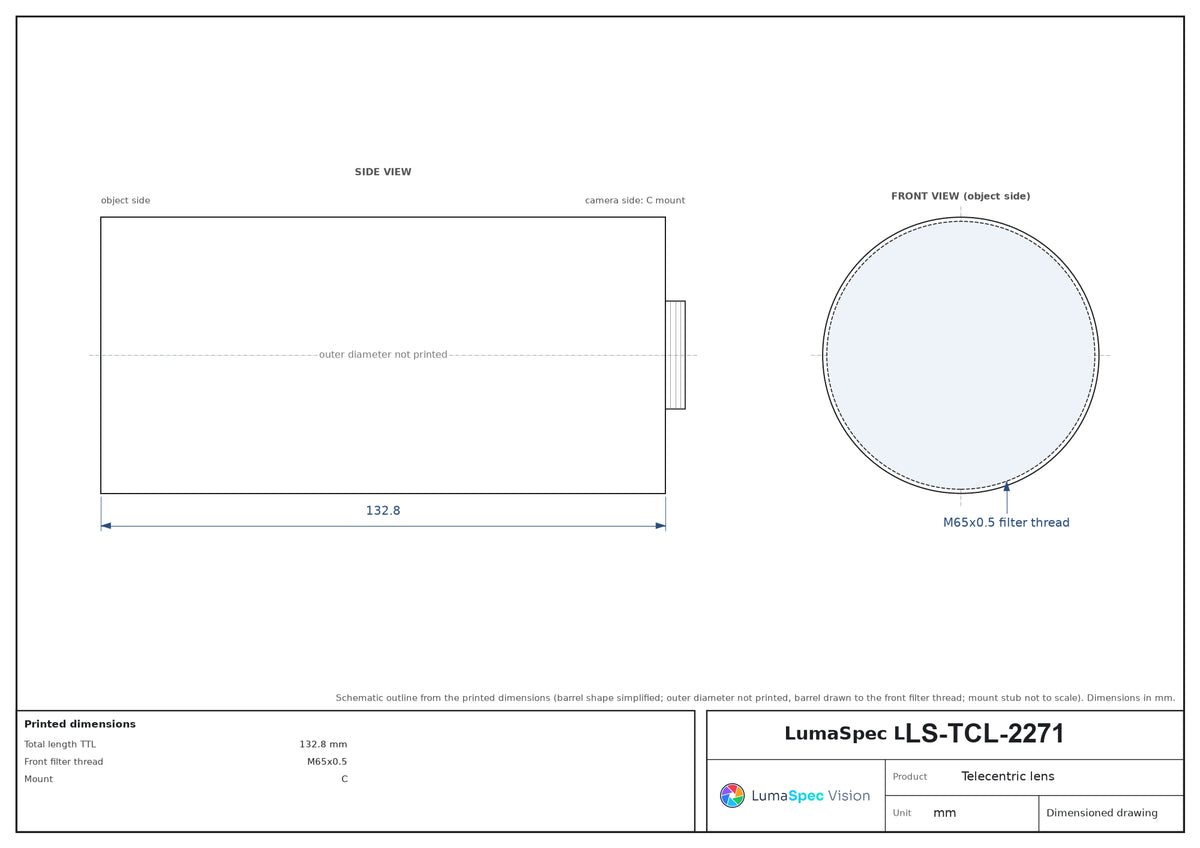

| Total length TTL (mm) | 132.8 |
| Coaxial illumination | No |
| Front filter thread | M65x0.5 |
| Measured depth of field as shipped (mm) | 7 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 1.10 kg |
Photo shows a representative model of this series; see the specifications for this model.
