0.367x, WD 220 mm, 1", C-mount Telecentric Lens (LS-TCL-2221)
Model LS-TCL-2221
- Magnification0.367x
- MountC-mount
- Sensor1"
- Working distance220 mm
- Aperture8
$1,809.00
Ships in 2-3 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.367x, WD 220 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.367x; working distance 220 mm; max sensor size 16.0 mm (1"); object-side resolution 14.6 µm; image-side f/# 8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2221 |
|---|
Optics
| Magnification (x) | 0.367 |
|---|---|
| Working distance (mm) | 220 |
| Image-side F/# | 8 |
| Image-side MTF30 (lp/mm) | >115 |
| Theoretical depth of field (mm) | ±4.7@F16 |
| Object-side resolution (um) | 14.6 |
| Numerical aperture NA | 0.023 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |

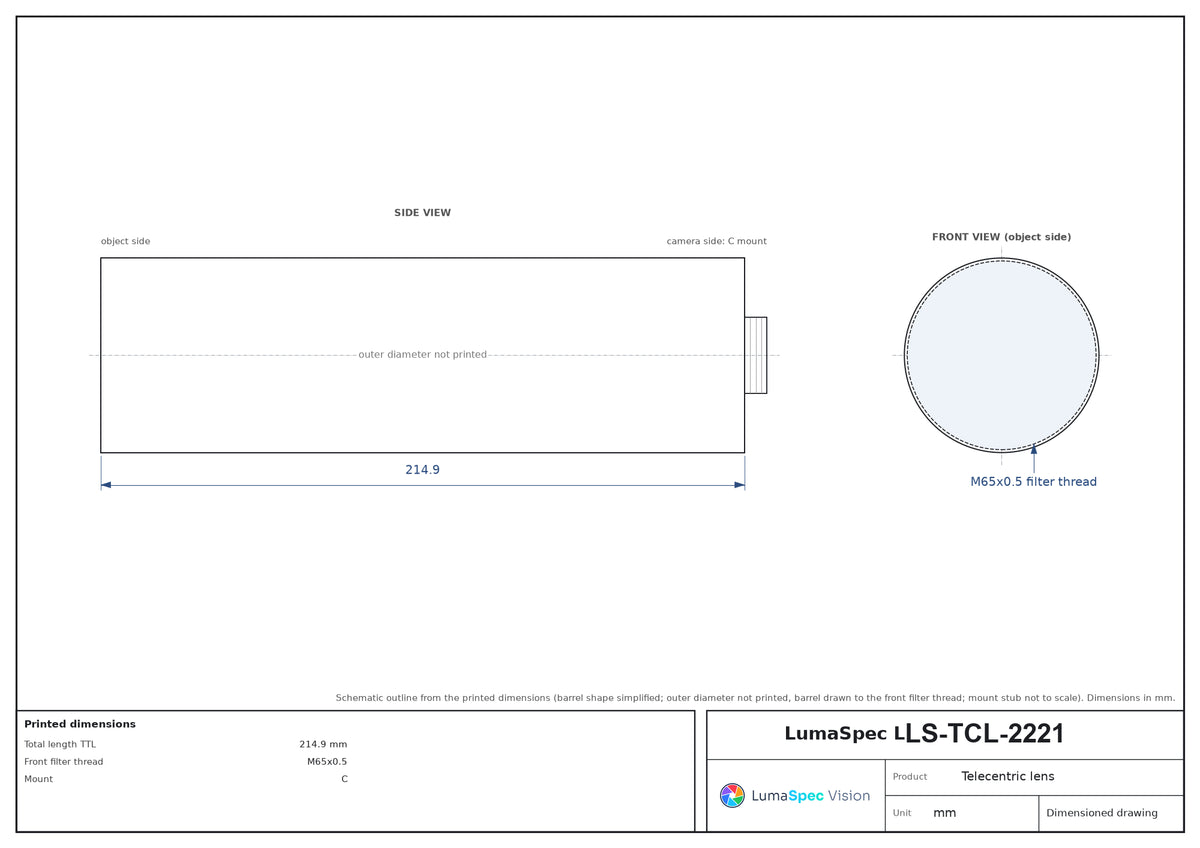

| Total length TTL (mm) | 214.9 |
| Coaxial illumination | No |
| Front filter thread | M65x0.5 |
| Measured depth of field as shipped (mm) | 2.2 |
Sensor and imaging
| Max sensor size (dia. mm) | 16.0(1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 1.00 kg |
Photo shows a representative model of this series; see the specifications for this model.
