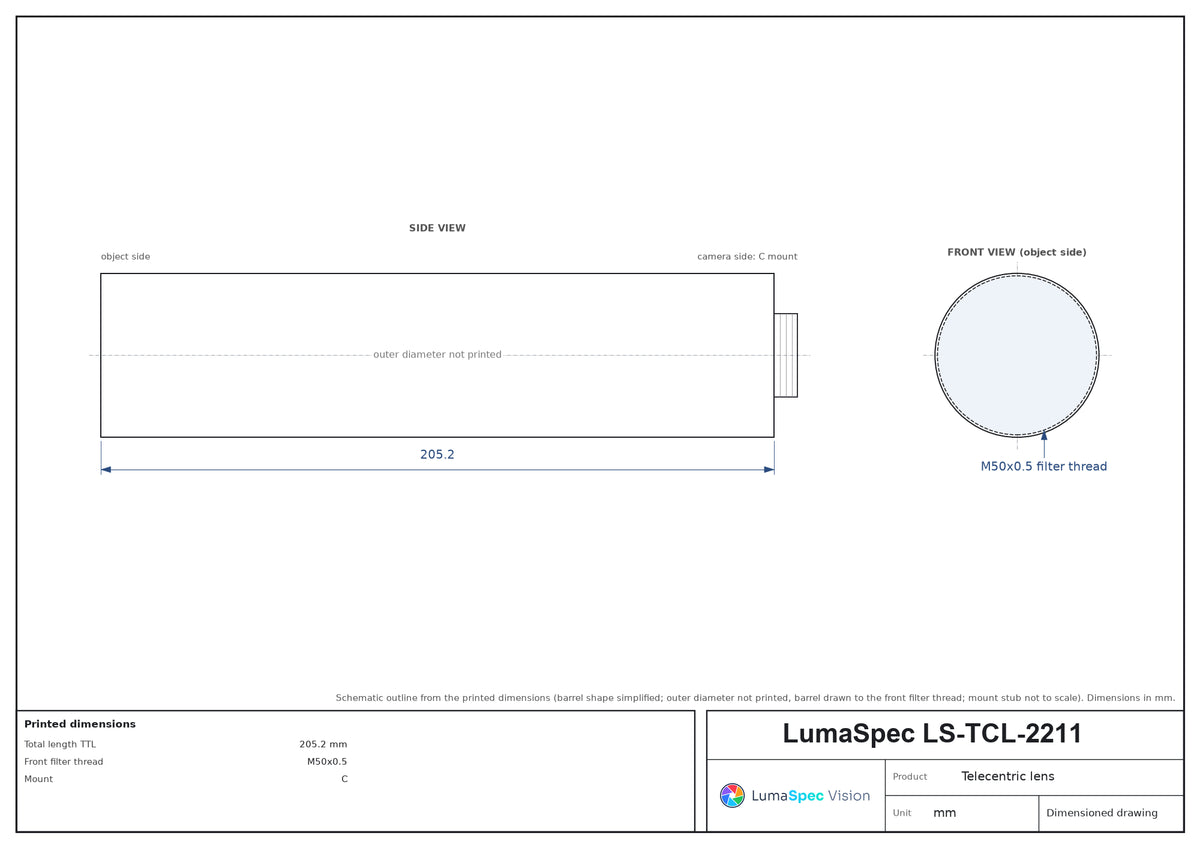

  • LS-TCL-2211 dimensions (mm)

Telecentric lenses

0.46x, WD 220 mm, 1", C-mount Telecentric Lens (LS-TCL-2211)

Model LS-TCL-2211

  • Magnification0.46x
  • MountC-mount
  • Sensor1"
  • Working distance220 mm
  • Aperture11.6
$1,599.00

Ships in 2-3 weeks

0.89 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.46x, WD 220 mm, 1", C-mount Telecentric Lens (LS-TCL-2211)LS-TCL-2211

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.46x, WD 220 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.46x; working distance 220 mm; max sensor size 16.0 mm (1"); object-side resolution 16.8 µm; image-side f/# 11.6.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2211

Optics

Magnification (x)0.46
Working distance (mm)220
Image-side F/#11.6
Image-side MTF30 (lp/mm)>80
Theoretical depth of field (mm)±2.2@F11.6
Object-side resolution (um)16.8
Numerical aperture NA0.01997
Image-side distortion (% max)<0.25
Object-side telecentricity (deg max)<0.1
Total length TTL (mm)205.2
Coaxial illuminationYes
Front filter threadM50x0.5
Measured depth of field as shipped (mm)3

Sensor and imaging

Max sensor size (dia. mm)16.0(1")

Mechanical

MountC
Shipping weight (estimated)0.89 kg

Photo shows a representative model of this series; see the specifications for this model.
