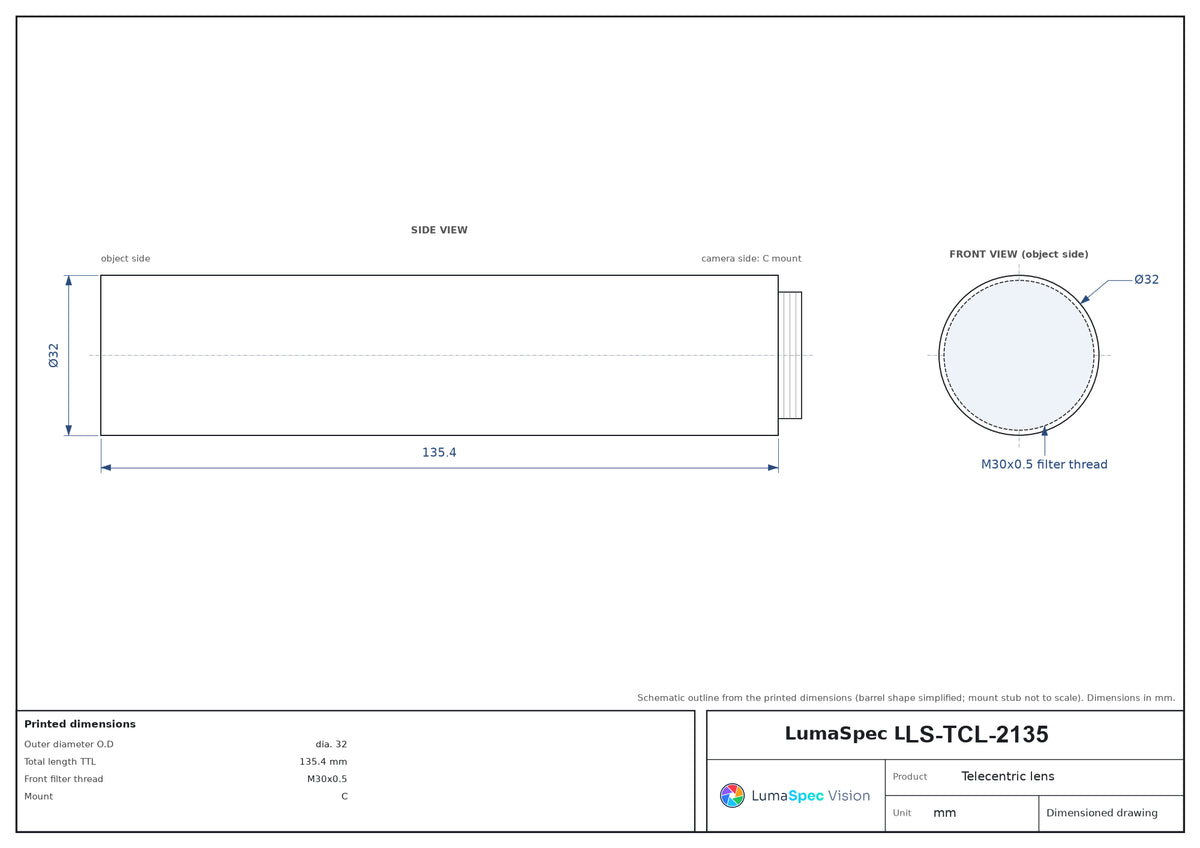

  • LS-TCL-2135 dimensions (mm)

Telecentric lenses

4x, WD 108 mm, 2/3", C-mount Telecentric Lens, length 135.4 mm (LS-TCL-2135)

Model LS-TCL-2135

  • Magnification4x
  • MountC-mount
  • Sensor2/3"
  • Working distance108±2
  • Aperture19.4
$1,239.00

Ships in 2-3 weeks

0.48 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4x, WD 108 mm, 2/3", C-mount Telecentric Lens, length 135.4 mm (LS-TCL-2135)LS-TCL-2135

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4x, WD 108 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 4x; working distance 108±2 mm; max sensor size 11.0 mm (2/3"); object-side resolution 3.4 µm; image-side f/# 19.4.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2135

Optics

Magnification (x)4
Working distance (mm)108±2
Image-side F/#19.4
Object-side telecentricity (deg max)<0.10
Image-side distortion (% max)<0.1
Numerical aperture NA0.1
Object-side resolution (um)3.4
Object-side depth of field (mm)0.1
Image-side MTF30 (lp/mm)43
Front filter threadM30x0.5
Total length TTL (mm)135.4

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")

Mechanical

MountC
Outer diameter O.D (mm)dia. 32
Shipping weight (estimated)0.48 kg

Photo shows a representative model of this series; see the specifications for this model.
