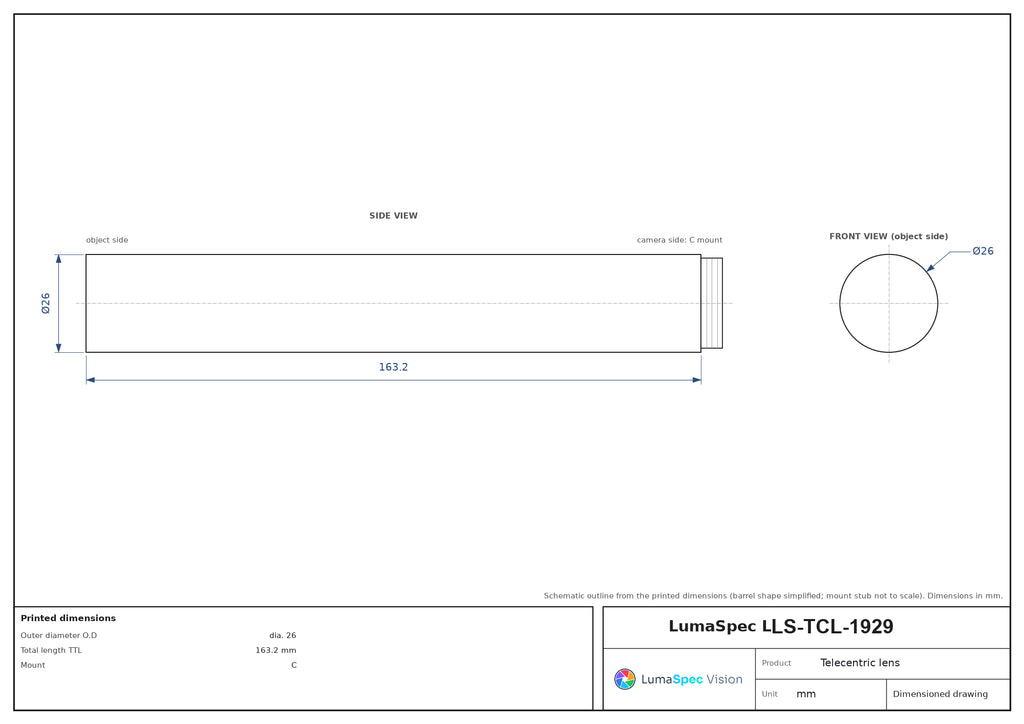

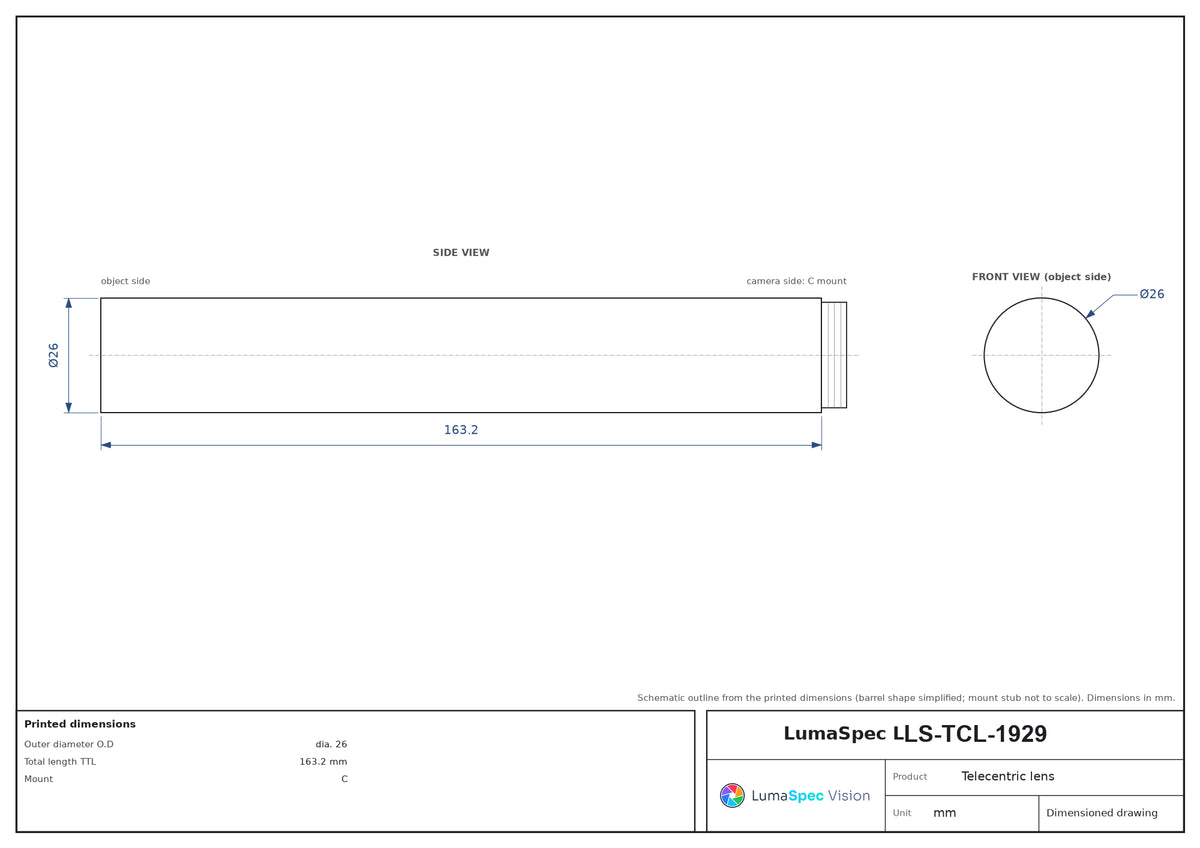

  • LS-TCL-1929 dimensions (mm)

Telecentric lenses

0.5x, WD 465 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1929)

Model LS-TCL-1929

  • Magnification0.5x
  • MountC-mount
  • Sensor1/2"
  • Working distance465 mm
  • Aperture10.3
$1,179.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.5x, WD 465 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1929)LS-TCL-1929

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.5x, WD 465 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.5x; working distance 465 mm; max sensor size 8 mm (1/2"); object-side resolution 13.9 µm; image-side f/# 10.3.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1929

Optics

Magnification (x)0.5
Working distance (mm)465
Image-side F/#10.3
Object-side telecentricity (deg max)Non-telecentric
Image-side distortion (% max)0.3
Numerical aperture NA0.02419
Object-side resolution (um)13.9
Theoretical depth of field (mm)3.3
Image-side MTF30 (lp/mm)67
Total length TTL (mm)163.2
Front filter threadM25x0.5 after removing the front lens retaining ring

Sensor and imaging

Max sensor size (dia. mm)8(1/2")

Mechanical

MountC
Outer diameter O.D (mm)dia. 26
Shipping weight (estimated)0.65 kg

Photo shows a representative model of this series; see the specifications for this model.
