Telecentric lenses
0.113x, WD 158 mm, 1/2.5", C-mount Telecentric Lens (LS-TCL-1767)
Model LS-TCL-1767
- Magnification0.113x
- MountC-mount
- Sensor1/2.5"
- Working distance158±3
- Aperture4.2
- Field of view64
$2,699.00
Ships in 2-3 weeks
1.23 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.113x, WD 158 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.113x; working distance 158±3 mm; max sensor size 7.2 mm (1/2.5"); object field of view 64 mm; image-side f/# 4.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1767 |
|---|
Optics
| Object field of view (dia. mm) | 64 |
|---|---|
| Magnification (x) | 0.113 |
| Working distance (mm) | 158±3 |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >200 |
| Theoretical depth of field (mm) | ±34.8@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 333±3 |

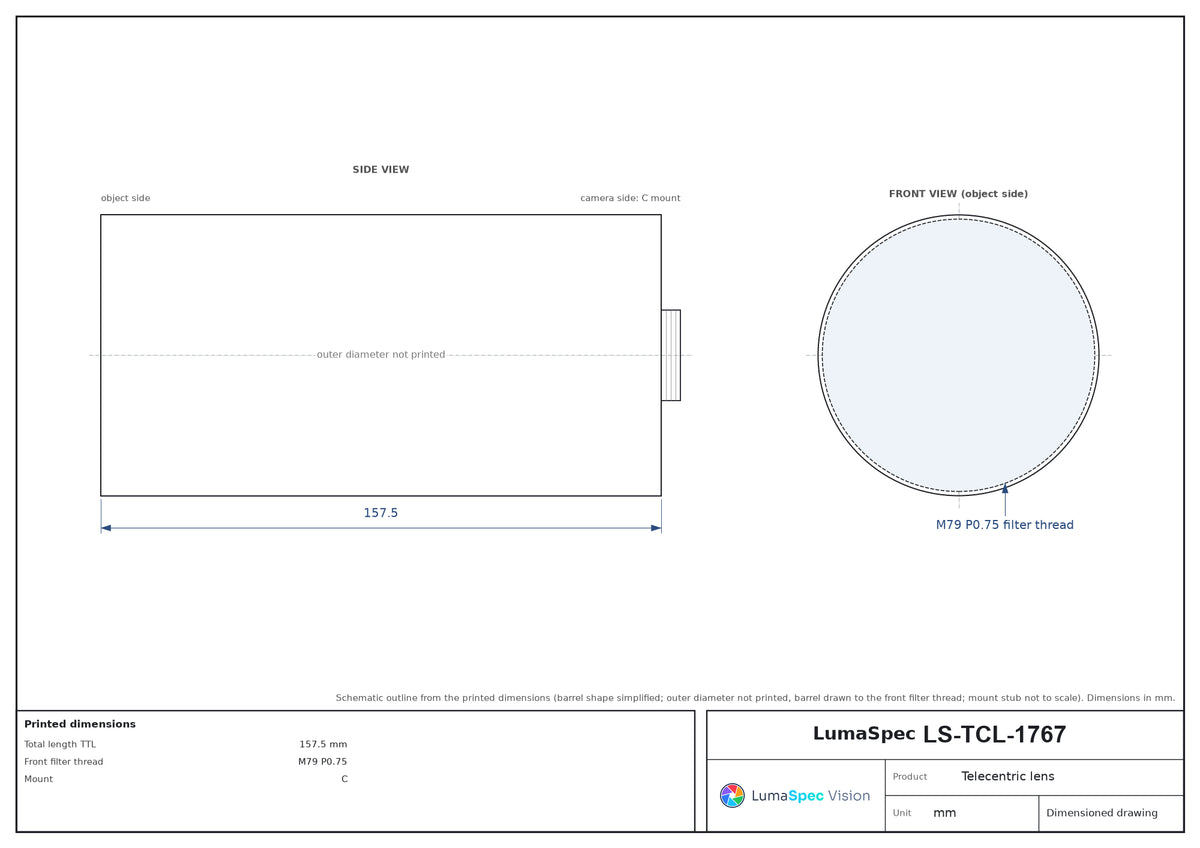

| Total length TTL (mm) | 157.5 |
| Front filter thread | M79 P0.75 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.806 |
| Shipping weight (estimated) | 1.23 kg |
Photo shows a representative model of this series; see the specifications for this model.
