Telecentric lenses
0.171x, WD 118 mm, 1/2.5", C-mount Telecentric Lens (LS-TCL-1760)
Model LS-TCL-1760
- Magnification0.171x
- MountC-mount
- Sensor1/2.5"
- Working distance118±3
- Aperture4.2
- Field of view42
$2,139.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.171x, WD 118 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.171x; working distance 118±3 mm; max sensor size 7.2 mm (1/2.5"); object field of view 42 mm; image-side f/# 4.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1760 |
|---|
Optics
| Object field of view (dia. mm) | 42 |
|---|---|
| Magnification (x) | 0.171 |
| Working distance (mm) | 118±3 |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >200 |
| Theoretical depth of field (mm) | ±15.0@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 244±3 |

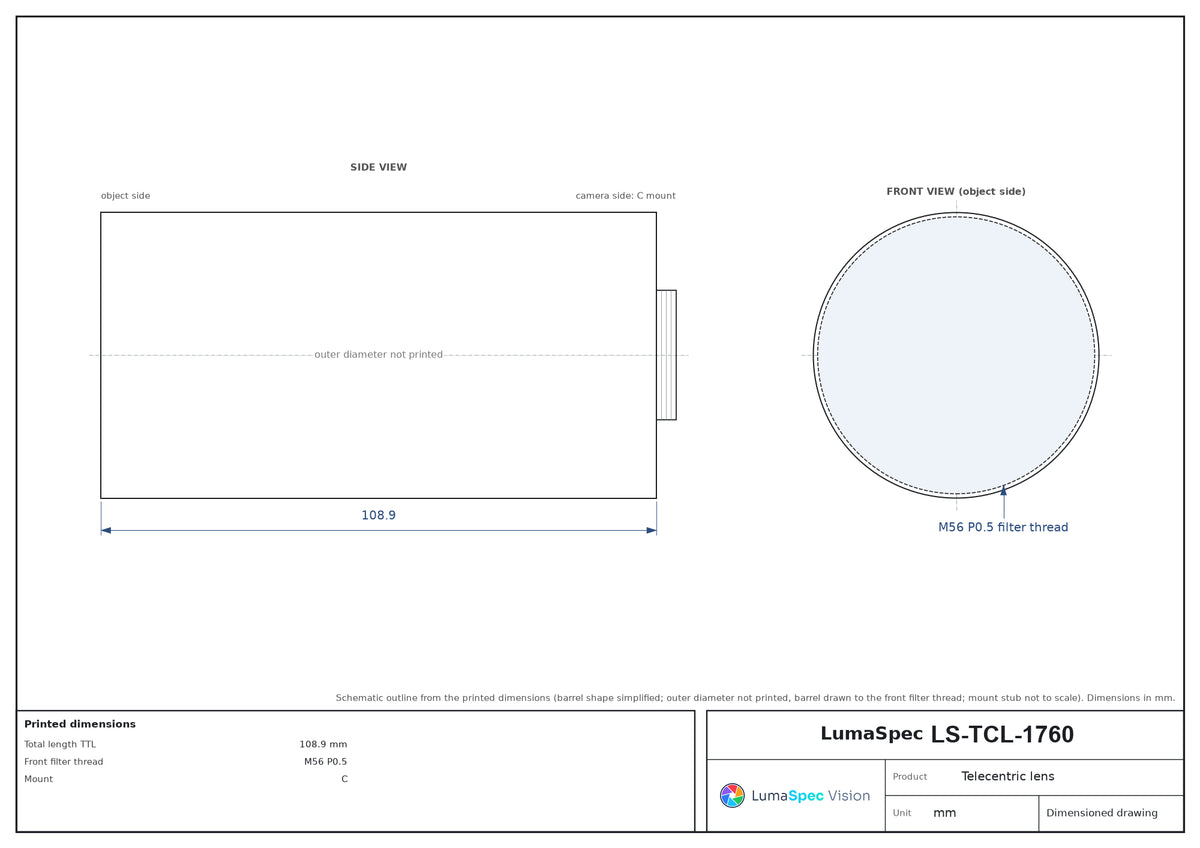

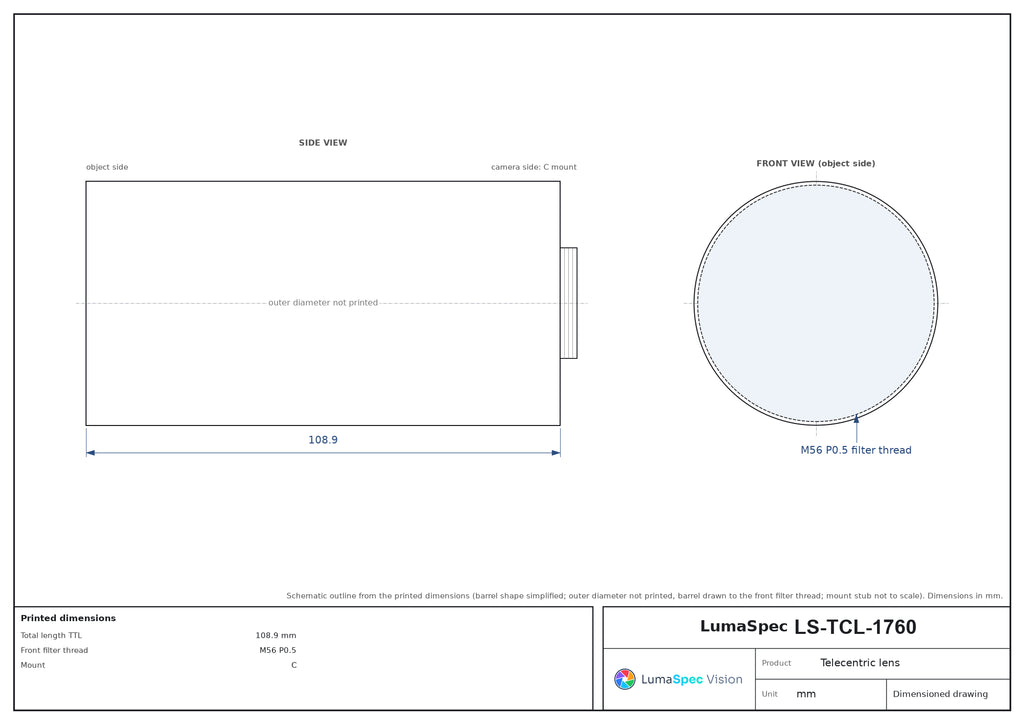

| Total length TTL (mm) | 108.9 |
| Front filter thread | M56 P0.5 |
| Measured depth of field as shipped (mm) | 3 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.4 |
| Shipping weight (estimated) | 0.66 kg |
Photo shows a representative model of this series; see the specifications for this model.
