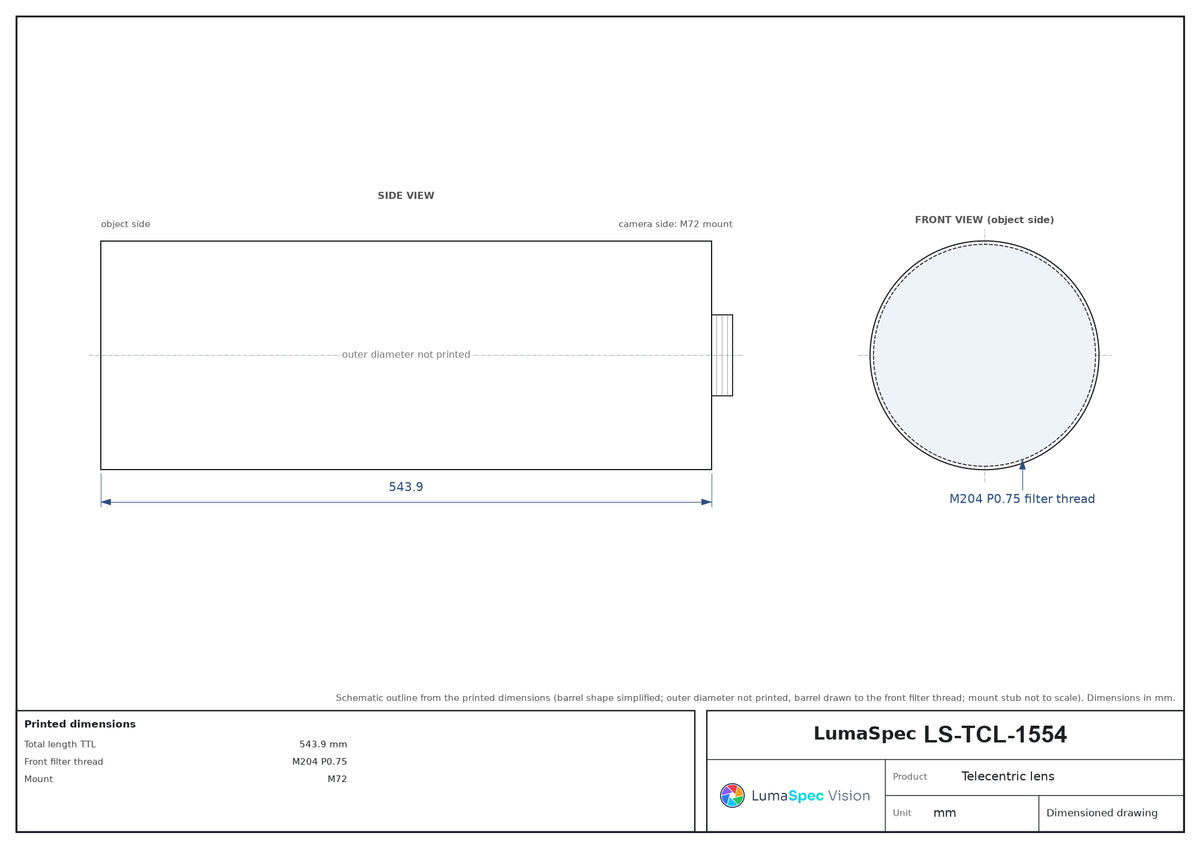

  • LS-TCL-1554 dimensions (mm)

Telecentric lenses

0.347x, WD 318 mm, M72-mount Telecentric Lens (LS-TCL-1554)

Model LS-TCL-1554

  • Magnification0.347x
  • MountM72
  • SensorLarge format
  • Working distance318±5
  • Aperture8.7
  • Field of view170
$4,849.00

Ships in 2-3 weeks

11.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.347x, WD 318 mm, M72-mount Telecentric Lens (LS-TCL-1554)LS-TCL-1554

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.347x, WD 318 mm, M72-mount Telecentric Lens. At a glance: magnification 0.347x; working distance 318±5 mm; max sensor size 59 mm; object field of view 170 mm; image-side f/# 8.7.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1554

Optics

Object field of view (dia. mm)170
Magnification (x)0.347
Working distance (mm)318±5
Image-side F/#8.7
Image-side MTF30 (lp/mm)>90
Theoretical depth of field (mm)±5.3@F16
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)874±5
Total length TTL (mm)543.9
Front filter threadM204 P0.75

Sensor and imaging

Max sensor size (dia. mm)59

Mechanical

MountM72
Net weight (kg)7.961
Shipping weight (estimated)11.25 kg

Photo shows a representative model of this series; see the specifications for this model.
