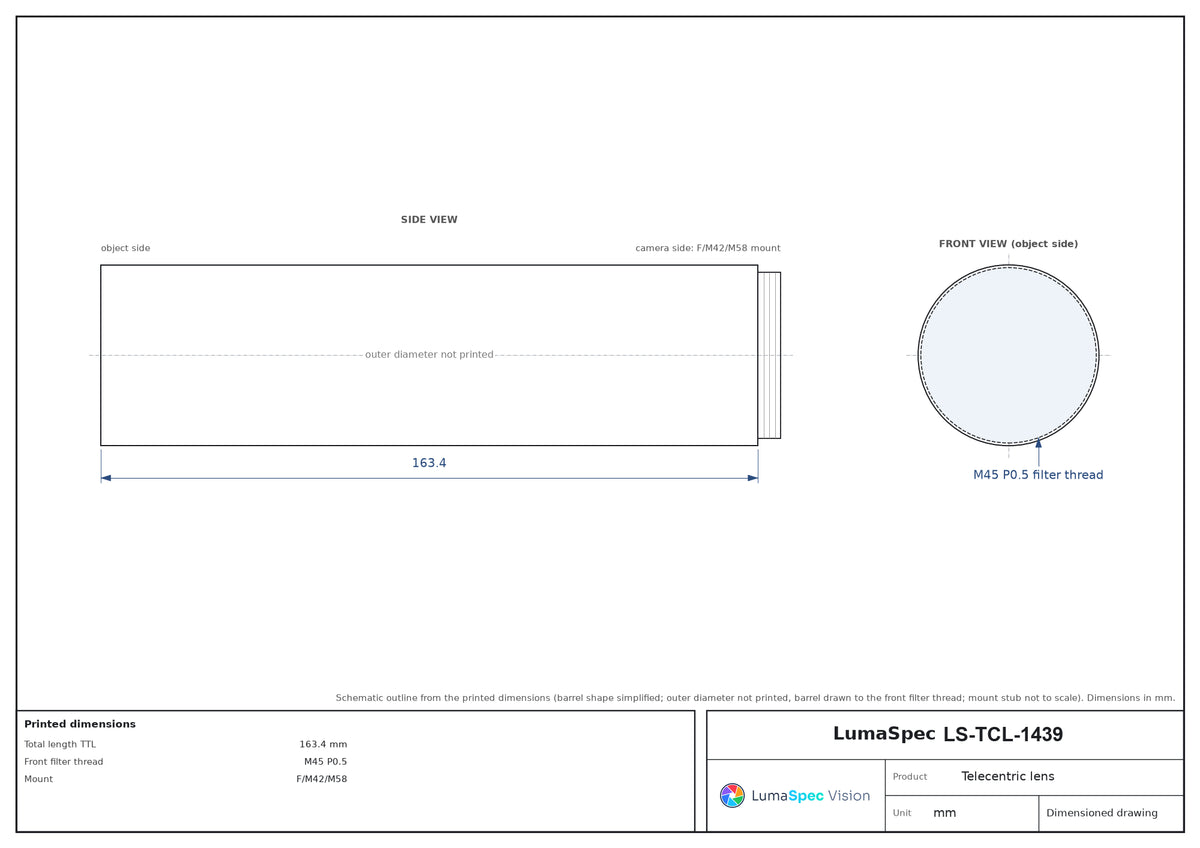

  • LS-TCL-1439 dimensions (mm)

Telecentric lenses

1x, WD 48 mm, 2" Telecentric Lens (LS-TCL-1439)

Model LS-TCL-1439

  • Magnification1x
  • MountF-mount
  • SensorAPS-H
  • Working distance48±1
  • Aperture7.8
  • Field of view33
$1,569.00

Ships in 2-3 weeks

1.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x, WD 48 mm, 2" Telecentric Lens (LS-TCL-1439)LS-TCL-1439

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1x, WD 48 mm, 2" Telecentric Lens. At a glance: magnification 1x; working distance 48±1 mm; max sensor size 33 mm (2"); object field of view 33 mm; image-side f/# 7.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1439

Optics

Object field of view (dia. mm)33
Magnification (x)1
Working distance (mm)48±1
Image-side F/#7.8
Image-side MTF30 (lp/mm)>100
Theoretical depth of field (mm)±0.6@F16
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)258±1
Total length TTL (mm)163.4
Front filter threadM45 P0.5

Sensor and imaging

Max sensor size (dia. mm)33(2")

Mechanical

MountF/M42/M58
Net weight (kg)0.9
Shipping weight (estimated)1.36 kg

Photo shows a representative model of this series; see the specifications for this model.
