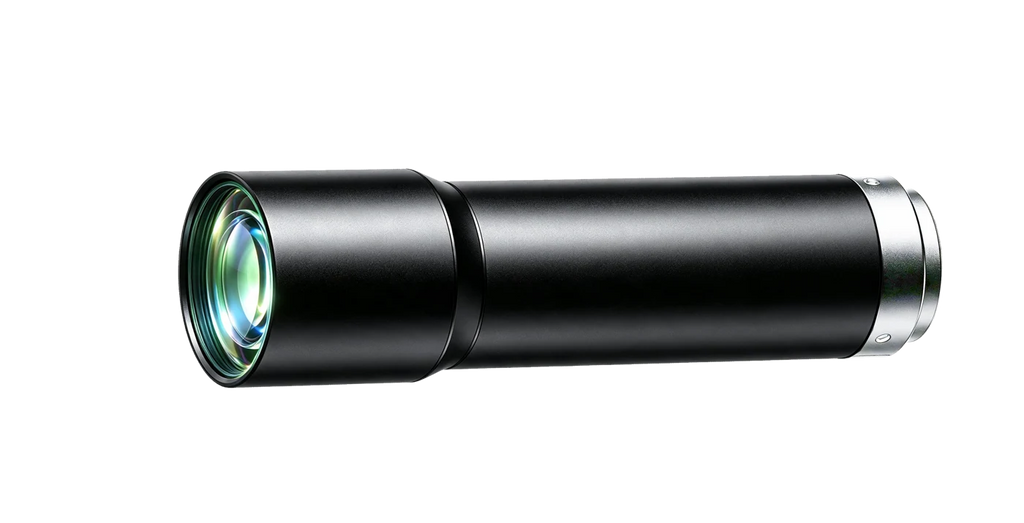

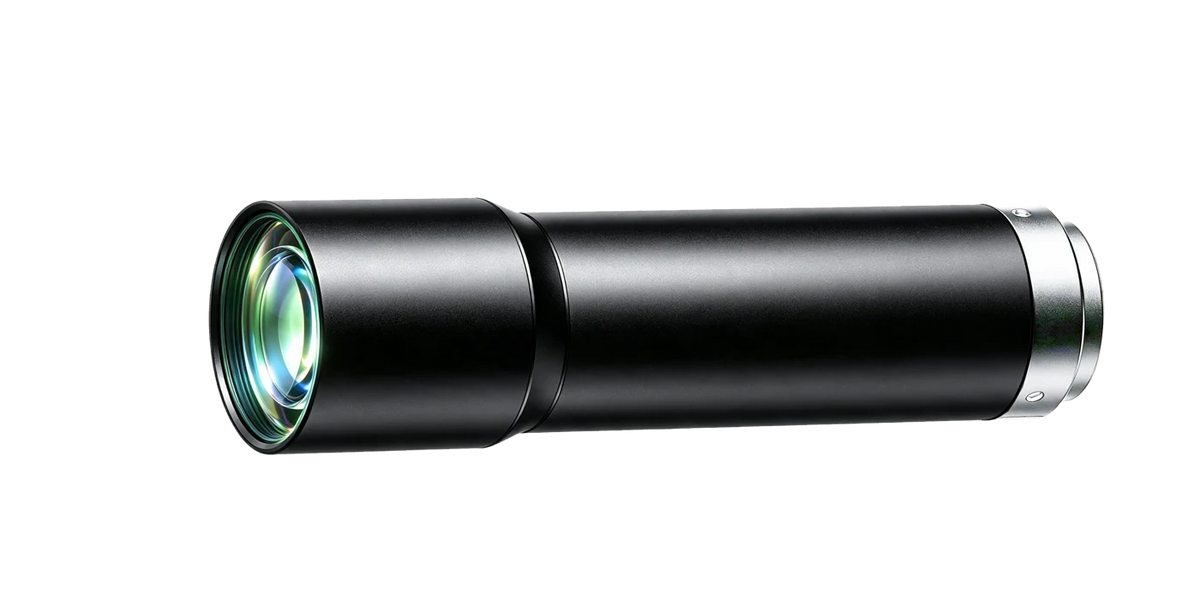

Quasi-Telecentric Lens, 0.45x, 610 mm WD, 1.1" (LS-TCL-0593)
  • Quasi-Telecentric Lens, 0.45x, 610 mm WD, 1.1" (LS-TCL-0593)

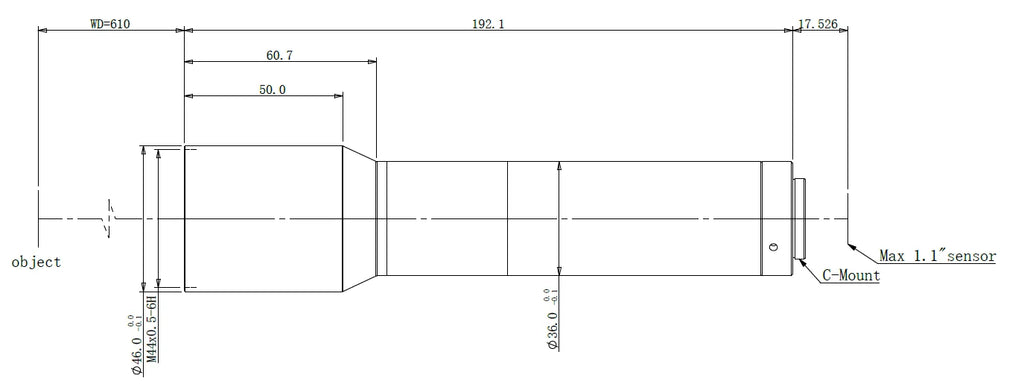

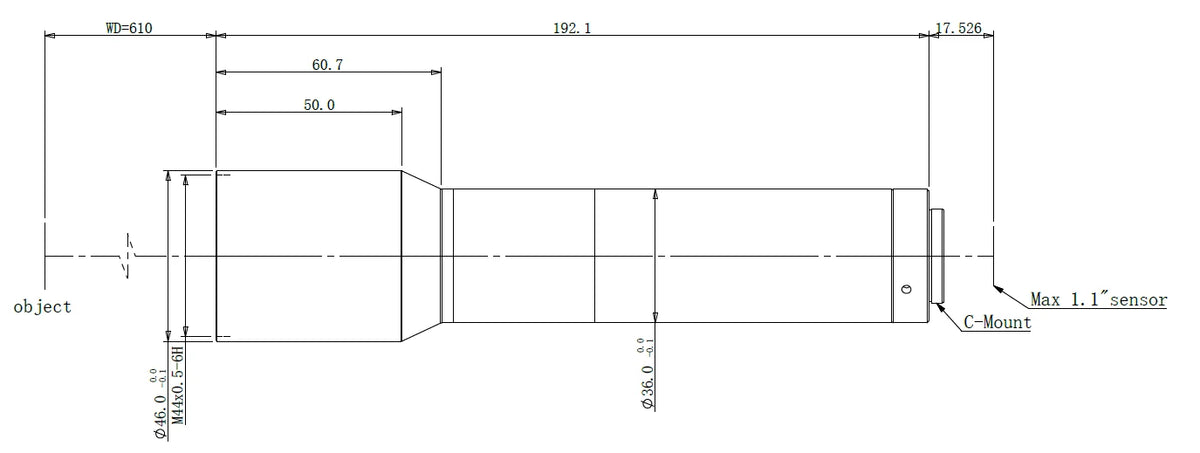

  • LS-TCL-0593 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.45x, 610 mm WD, 1.1" (LS-TCL-0593)

Model LS-TCL-0593

  • Magnification0.45
  • MountC-mount
  • Sensor1.1"
  • Working distance610 mm
  • ApertureF8
$829.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Quasi-Telecentric Lens, 0.45x, 610 mm WD, 1.1" (LS-TCL-0593)LS-TCL-0593

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.45x, 610 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0593

Optics

Magnification0.45
Working distance610 mm
Image size1.1"
F-numberF8
Depth of field3.2 mm
Distortion≤ 0.3656%
Object-side resolution11.9 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension192.1 mm × Φ46 mm
Shipping weight (estimated)0.66 kg
