Telecentric lenses

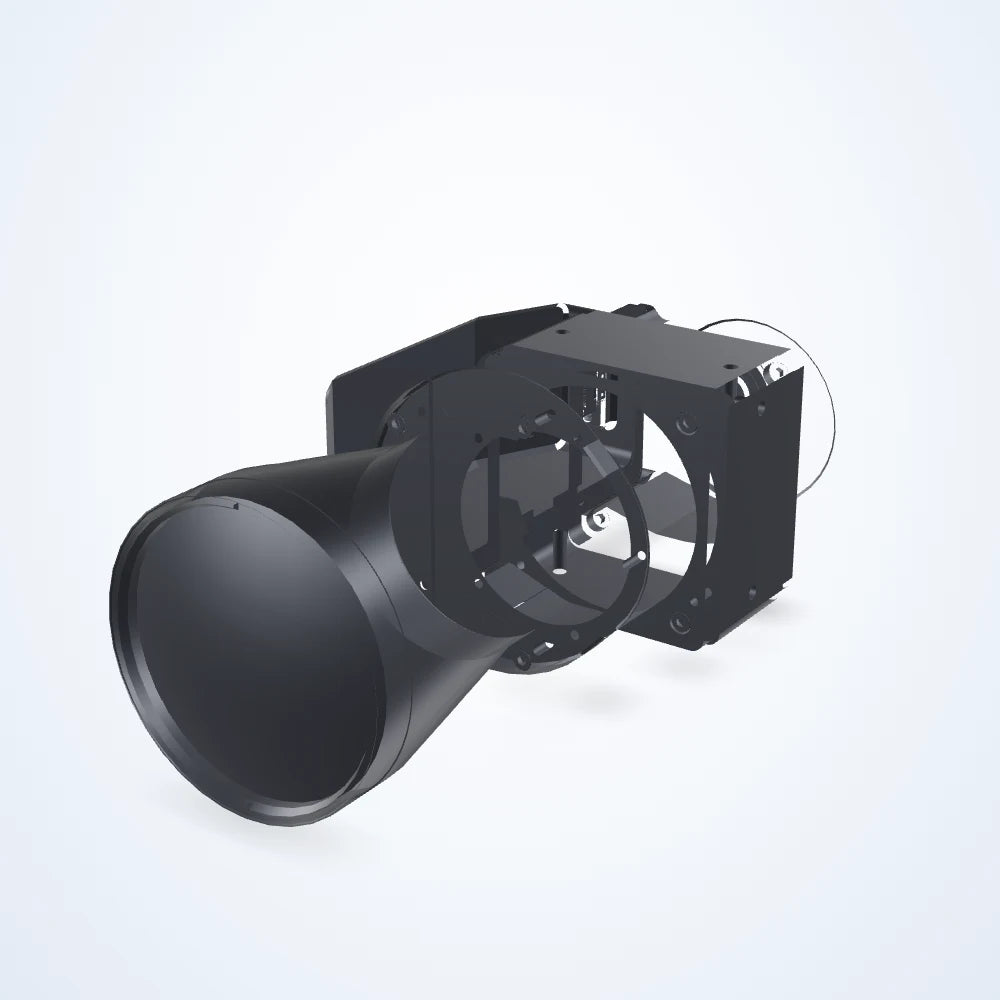

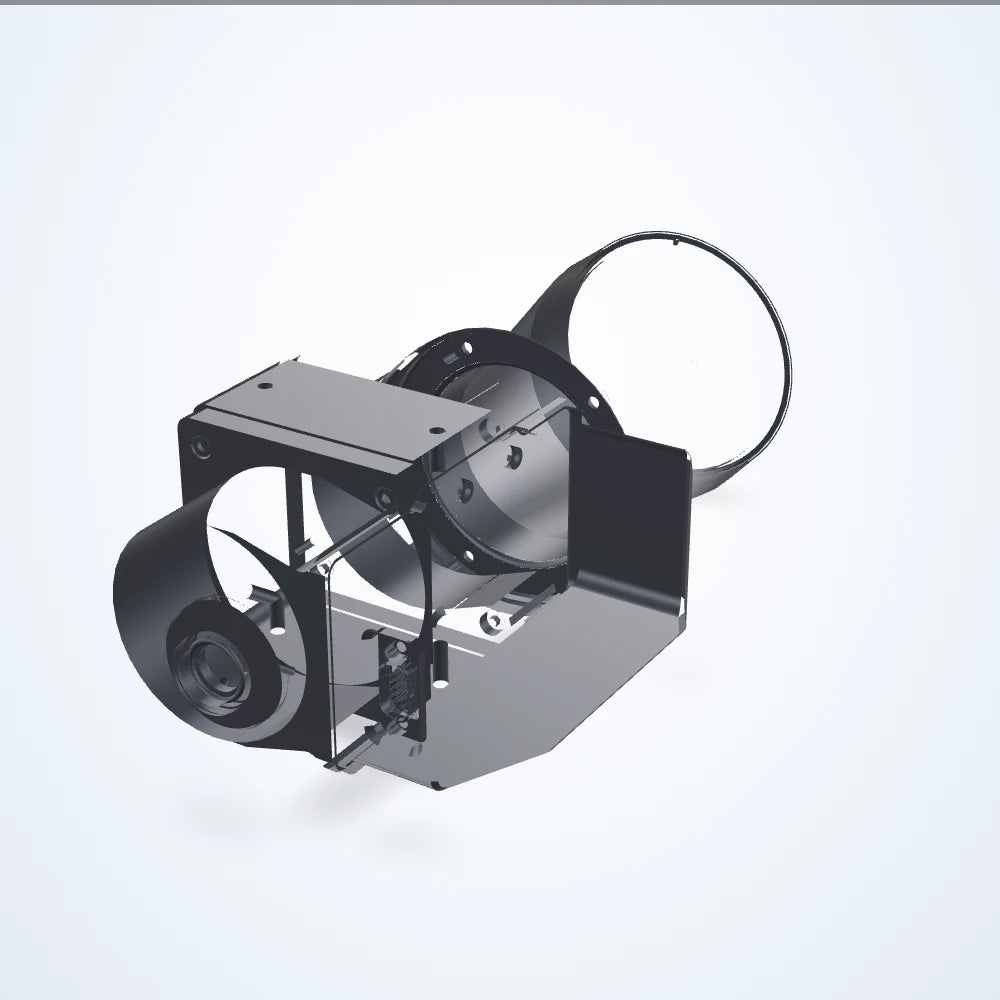

0.125× telecentric lens, 2/3", C-mount (LS-TCL-0450)
Model LS-TCL-0450
- Magnification0.125×
- MountC-mount
- Sensor2/3"
- Working distance157.8 mm
- Resolution10 μm
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: db15hd male; working distance 157.8 mm; depth of field 13.2 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0450 |
|---|---|
| FOV @ 1/1.8″ | 57.04 x 42.64 mm 28.52 x 21.32 mm 14.26 x 10.66 mm 7.13 x 5.33 mm |
| Fov @ 1/2.0″ | 51.20 x 38.40 mm 25.60 x 19.20 mm 12.80 x 9.60 mm 6.40 x 4.80 mm |
| Fov @ 1/2.5″ | 45.60 x 34.24 mm - 22.80 x 17.12 mm - 11.40 x 8.56 mm - 5.70 x 4.28 mm |
| FOV @ 1/2″ | 51.20 x 38.40 mm 25.60 x 19.20 mm 12.80 x 9.60 mm 6.40 x 4.80 mm |
| Fov @ 1/3.0″ | 038.40 x 028.80 mm - 019.20 x 014.40 mm - 009.60 x 007.20 mm - 004.80 x 003.60 mm |
| FOV @ 2/3″ | 68.00 x 56.72 mm 34.00 x 28.36 mm 17.00 x 14.18 mm 8.50 x 7.09 mm |
| Interpolation | 500 |
| Lens type | Telecentric |
| Motor to encoder ratio | 2.56 |
| Number of encoders | 1 |
| Number of magnetic poles | 120 |
| Number of motors | 1 |
| Poles pitch | 2 mm |
| Pulses per revolution | 60000 |
| Reference point repeatability | < 6 μm < 5 μm < 2 μm < 4 μm |
| Steps per revolution | 200 |
| Working ƒ/n | f/16 |
Optics
| Magnification | 0.125× |
|---|---|
| Working distance | 157.8 mm |
| Depth of field | 13.2 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Max image displacement between magnification changes | 350 μm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Time for magnification change maximum | 2 Seconds |
| Time for magnification change minimum | 1.5 Seconds |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 10 μm |
Interfaces and I/O
| Connector | DB15HD Male |
|---|---|
| Interface | RS422 |
Environment and compliance
| IP rating | IP20 |
|---|---|
| Operating relative humidity (%) | 10-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Output signals | A, B, Z (Index) |
|---|---|
| Rms winding current | 600 mA |
| Supply current maximum | 30 mA |
| Supply voltage | 24 Volts |
| Winding voltage | 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|

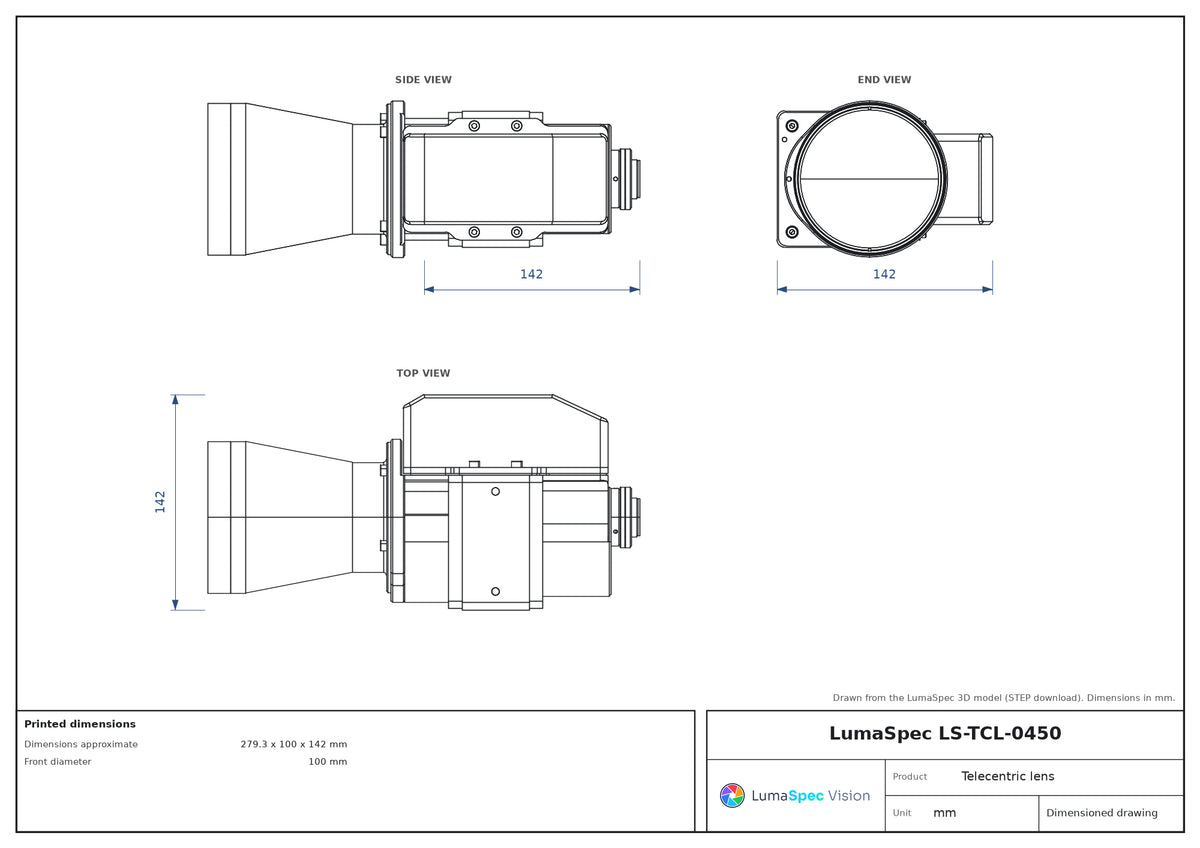

| Dimensions approximate | 279.3 x 100 x 142 mm |
| Front diameter | 100 mm |
| Installation location | Indoor Use Only |
| Weight | 2820 Grams |
LS-TCL-0450
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.125×
- Sensor format
- 2/3"
- Mount
- C-mount
- Working distance
- 157.8 mm
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Telecentric lens series, 2/3", C-mount (S32) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0449 | 0.25× | $9,189.00 Quote | Lead time confirmed with your quote | View |
