0.66× telecentric lens, 2/3", C-mount, wavelength 6000 K (LS-TCL-0394)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.66× telecentric lens, 2/3", C-mount, wavelength 6000 K, WD 132.3 mm (LS-TCL-0394)

Model LS-TCL-0394

Magnification0.66×
MountC-mount
Sensor2/3"
Working distance132.3 mm
Resolution12 μm

$2,689.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 132.3 mm; depth of field 1.4 mm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0394
FOV @ 1/1.8″	10.80 x 8.08 mm
Fov @ 1/2.0″	9.70 x 7.27 mm
Fov @ 1/2.5″	8.64 x 6.48 mm
FOV @ 1/2″	9.70 x 7.27 mm
Fov @ 1/3.0″	7.27 x 5.45 mm
FOV @ 2/3″	12.88 x 10.74 mm
Lens type	Telecentric
Working ƒ/n	f/12

Optics

Magnification	0.66×
Working distance	132.3 mm
Depth of field	1.4 mm
Distortion maximum (%)	< 0.2
Distortion typical (%)	< 0.1
Filter thread	No Filter Threads
Image circle	11 mm
Telecentricity maximum	0.06°
Telecentricity typical	< 0.04°

Sensor and imaging

Sensor format	2/3"
Resolution (pixel size)	12 μm

Interfaces and I/O

Connector	M8

Light

LED current	350 mA
LED voltage	2.8 Volts
Light color	White
Wavelength	6000 K

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	2.5 Watts
Pulse current maximum	2000 mA
Supply voltage	12 - 24 Volts

Mechanical

Mount	C-mount
Dimensions approximate	149.8 x 37.7 x 37.7 mm
Front diameter	37.7 mm
Installation location	Indoor Use Only
Weight	503 Grams

LS-TCL-0394

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

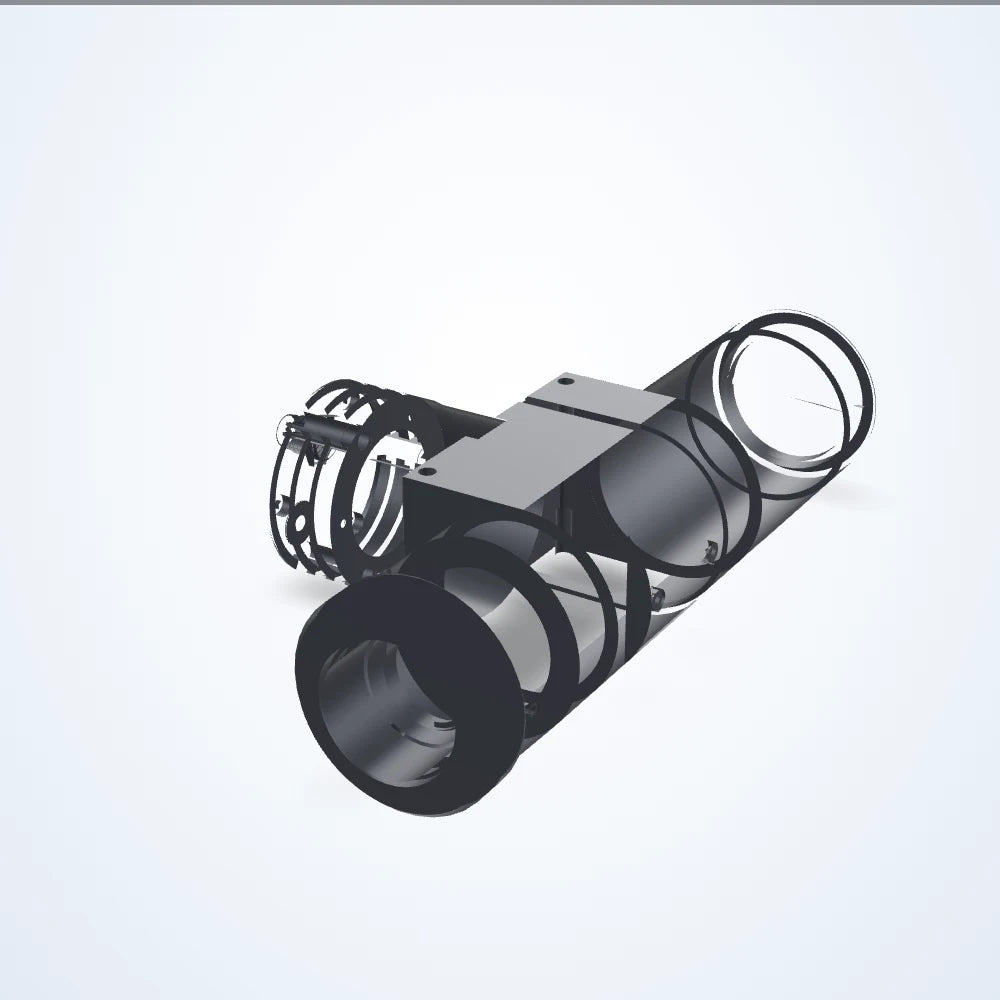

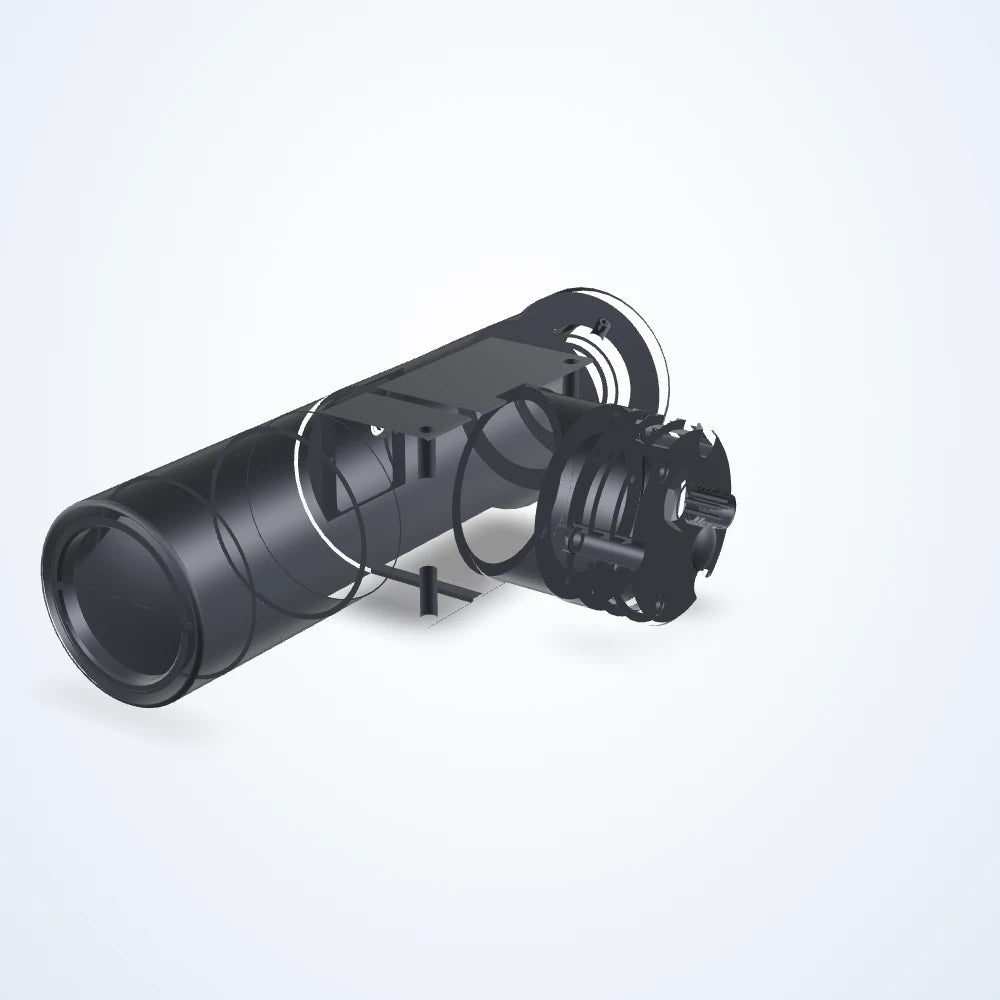

LS-TCL-0394 — Telecentric lenses, View 1

Source CAD

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

Magnification: 0.66×
Sensor format: 2/3"
Mount: C-mount
Working distance: 132.3 mm

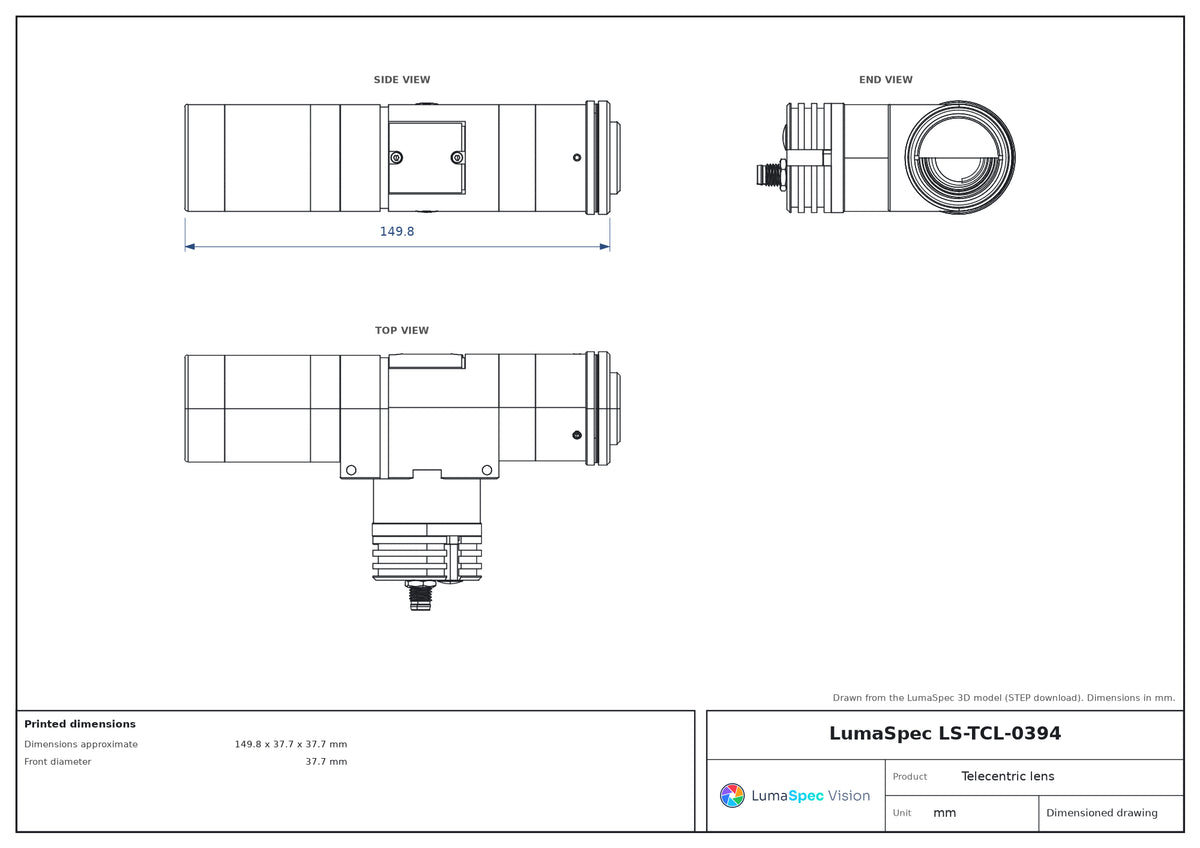

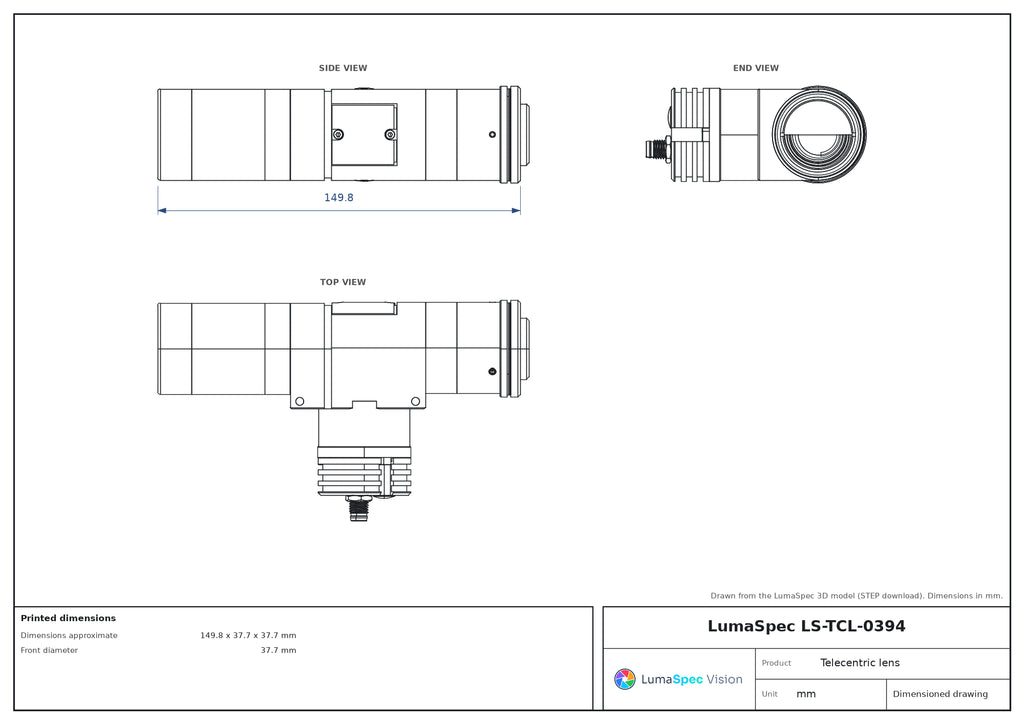

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Telecentric lens series, 2/3", C-mount (S26) series

See all 14 models
