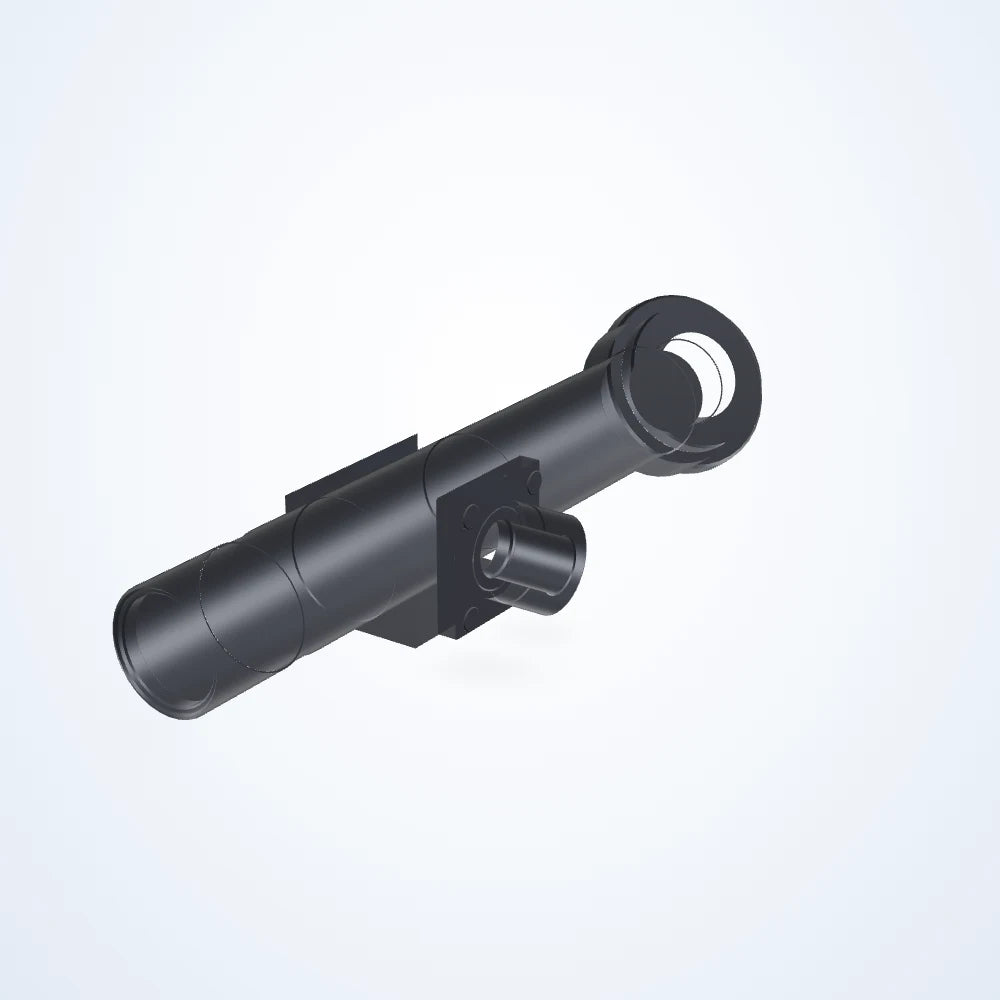

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1× telecentric lens, 2/3", C-mount, WD 110 mm (LS-TCL-0071)
Model LS-TCL-0071
- Magnification1×
- MountC-mount
- Sensor2/3"
- Working distance110 mm
- Resolution11.2 μm
$1,729.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 110 mm; depth of field 1 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0071 |
|---|---|
| FOV @ 1/1.8″ | 7.13 x 5.33 mm |
| Fov @ 1/2.0″ | 6.40 x 4.80 mm |
| Fov @ 1/2.5″ | 5.70 x 4.28 mm |
| FOV @ 1/2″ | 6.40 x 4.80 mm |
| Fov @ 1/3.0″ | 4.80 x 3.60 mm |
| FOV @ 2/3″ | 8.50 x 7.09 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/16.7 |
Optics
| Magnification | 1× |
|---|---|
| Working distance | 110 mm |
| Depth of field | 1 mm |
| Distortion typical (%) | < 0.06 |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 11.2 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

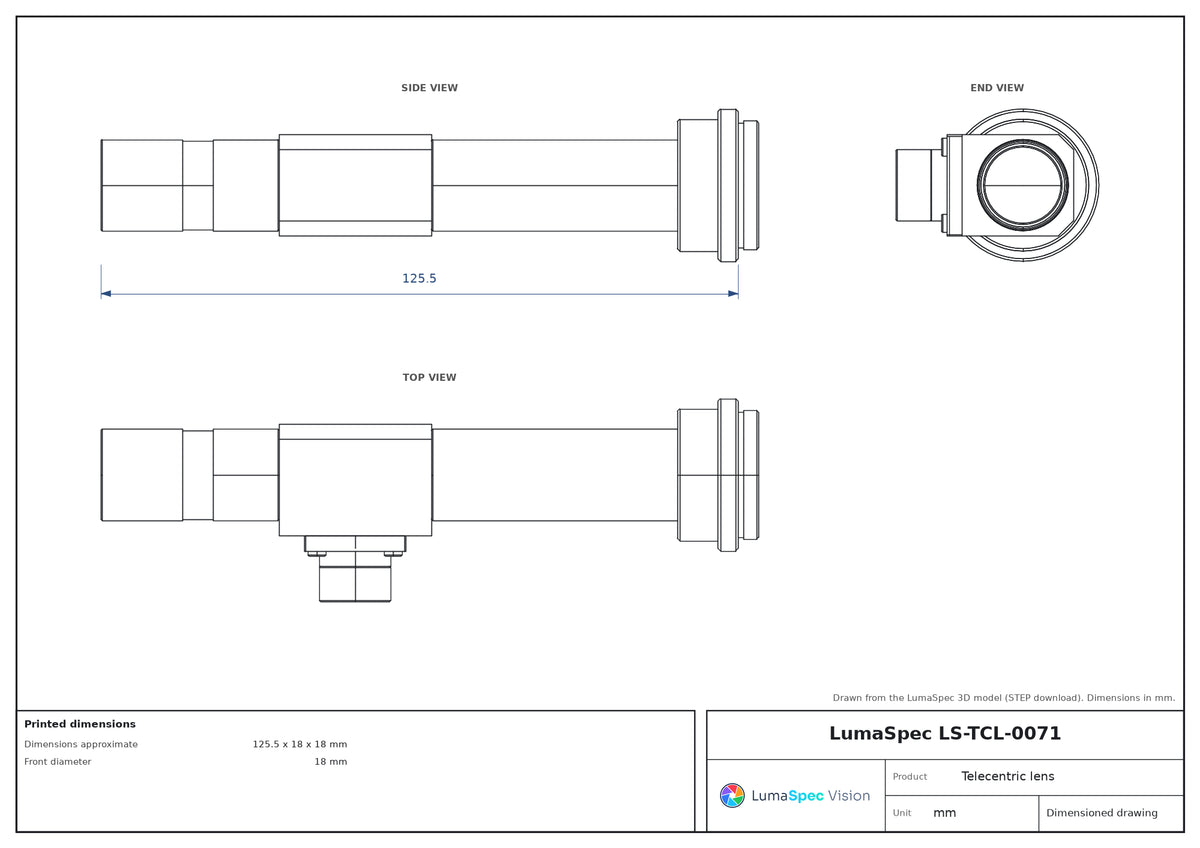

| Dimensions approximate | 125.5 x 18 x 18 mm |
| Front diameter | 18 mm |
| Weight | 78 Grams |

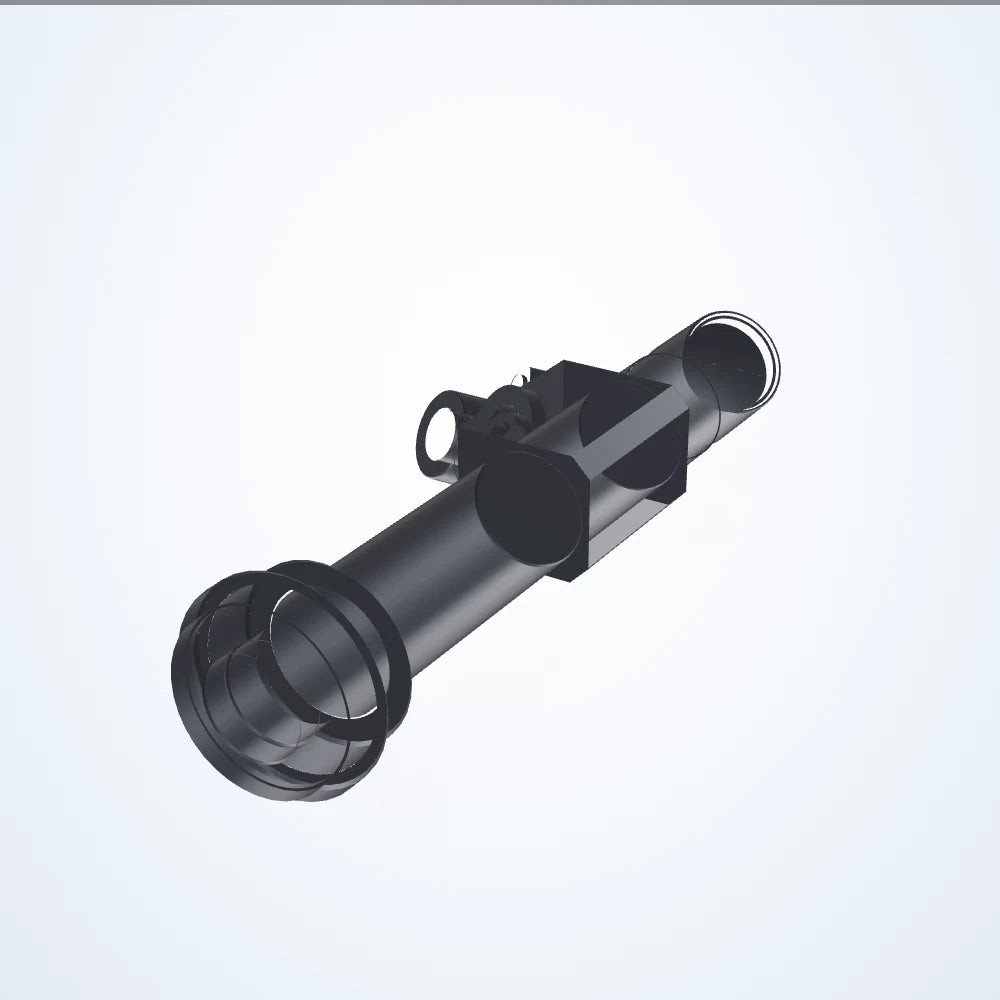

LS-TCL-0071
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 1×
- Sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
