Rendered illustration: the actual product may differ in appearance.
Thermal, SWIR & UV lenses
100 mm SWIR lens, 900-1700 nm, 4/3", F2.1, C-mount (LS-SWL-0255)
Model LS-SWL-0255
- Focal length100 mm
- MountC-mount
- Sensor4/3"
- Working distance0.4 m to infinity
- ApertureF2.1-22
- Field of view14.33° /11.52° /8.72°
$2,100.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
100 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 100 mm; working distance 0.4 m to infinity; covers sensors up to 4/3"; aperture F2.1; corrected for 900-1700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0255 |
|---|---|
| Angle of view | 14.33°/11.52°/8.72° |
Optics
| Focal length | 100 mm |
|---|---|
| Aperture | F2.1-22 |
| Field of view | 14.33° /11.52° /8.72° |
| Working distance | 0.4 m to infinity |
| Back focal length | 25.485 mm |
| Distortion | <0.17% |
| Focus | Manual |
| Filter thread | M49×P0.75 |
Sensor and imaging
| Sensor format | 25.6 mm |
|---|
Light
| Wavelength range | 900-1700 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|

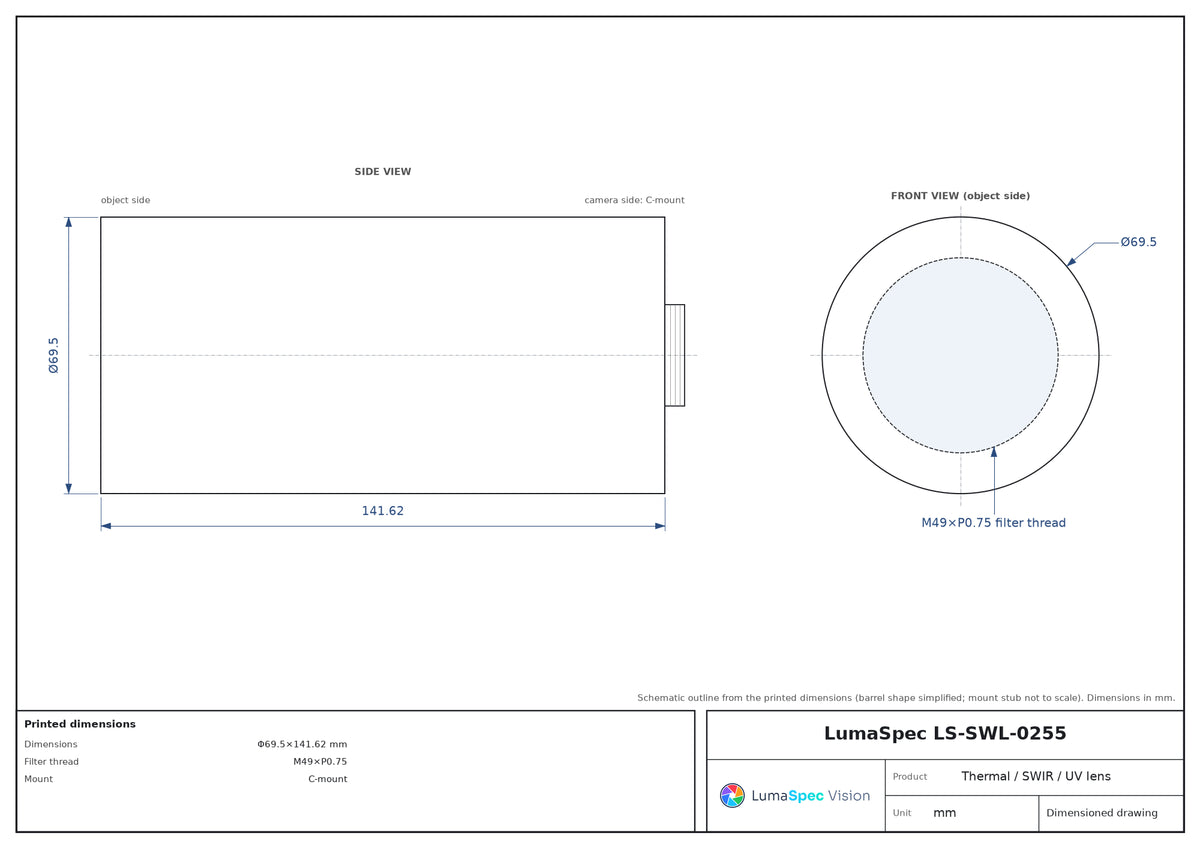

| Dimensions | Φ69.5×141.62 mm |
| Shipping weight | 1.00 kg |
Other models in the SWIR lenses (LS-SWL-S07) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0254 | 35 mm, 4/3", C-mount | $850.00 | Ships in 3-4 weeks | View |
| LS-SWL-0256 | 100 mm, 4/3", F-mount | $2,100.00 | Ships in 3-4 weeks | View |
| LS-SWL-0257 | 100 mm, 4/3", M42 | $2,100.00 | Ships in 3-4 weeks | View |
