Spot lights
7 mm dia. Spot Light (LS-SPT-0189)
Model LS-SPT-0189
- ColourRed, Green, Blue, White
- Emitting area7 mm
- Size27x60 mm
- Voltage5 V
- Power5 W
$239.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
7 mm dia. Spot Light. Spot light used with a coaxial lens for LED die bonding, chip character inspection and mark point location. A special lens combination achieves high-brightness, high-uniformity spot illumination.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0189 |
|---|---|
| Connection dia (mm) | 8 |
Interfaces and I/O
| Cable length | 500 mm (per dimension drawings) |
|---|
Light
| Emitting area (mm) | 7 |
|---|---|
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 5 |
|---|---|
| Power (W) | 5 |
Mechanical
| Outer size ODxH (mm) | 27x60 |
|---|---|
| Shipping weight (estimated) | 0.25 kg |
Mounting and drawing data

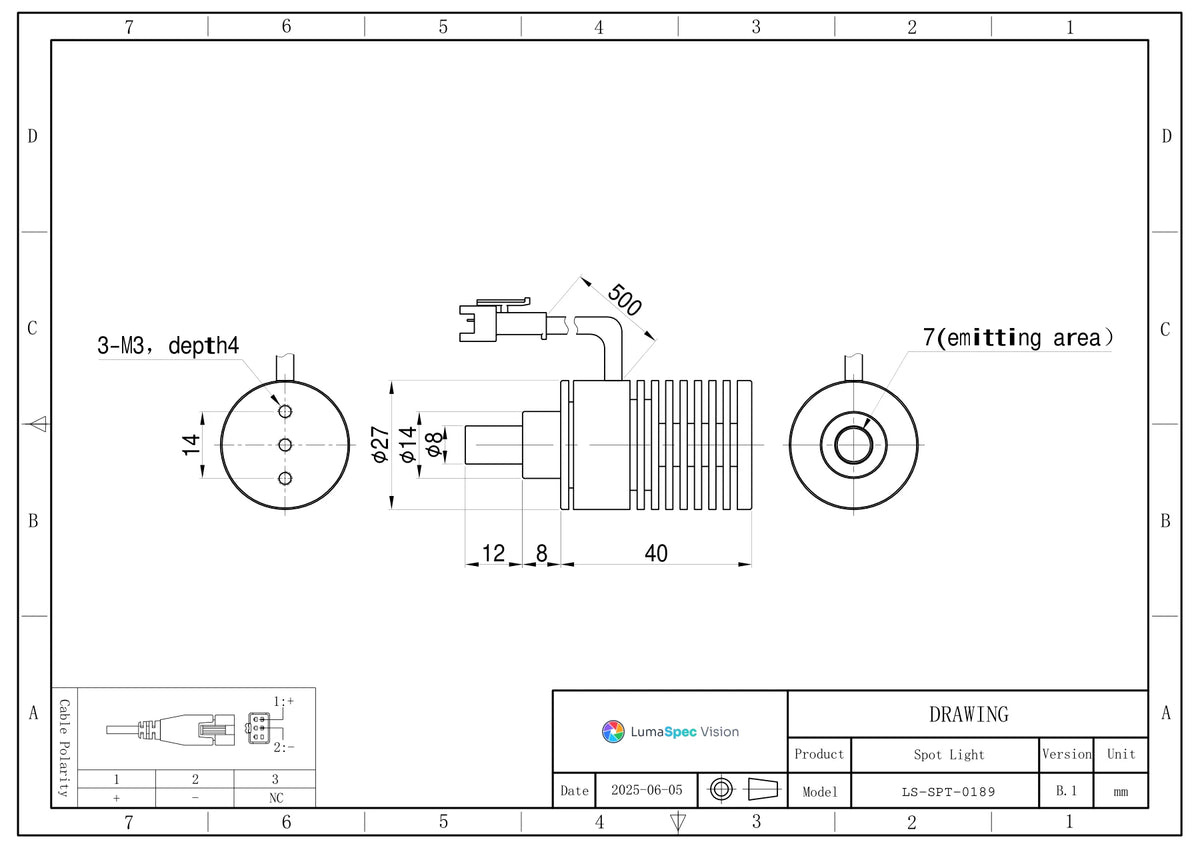

drawing: OD 27, nose dia 14 / 8, lengths 12 + 8 + 40, 3-M3 depth 4 holes at 14 spacing, emitting face dia 7, 500 mm cable
Other models in the Spot light (LS-SPT-S51) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0190 | 7 mm dia. | $239.00 | Ships in 2-3 weeks | View |
| LS-SPT-0191 | 7 mm dia. | $239.00 | Ships in 2-3 weeks | View |
| LS-SPT-0188 | 7 mm dia. | $239.00 | Ships in 2-3 weeks | View |
