Spot lights
8 mm Spot light, 24 mm dia. (LS-SPT-0182)
Model LS-SPT-0182
- ColourRed, Blue, Green, White
- Voltage3 V
- Power3 W
- LED typeSMD
$239.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

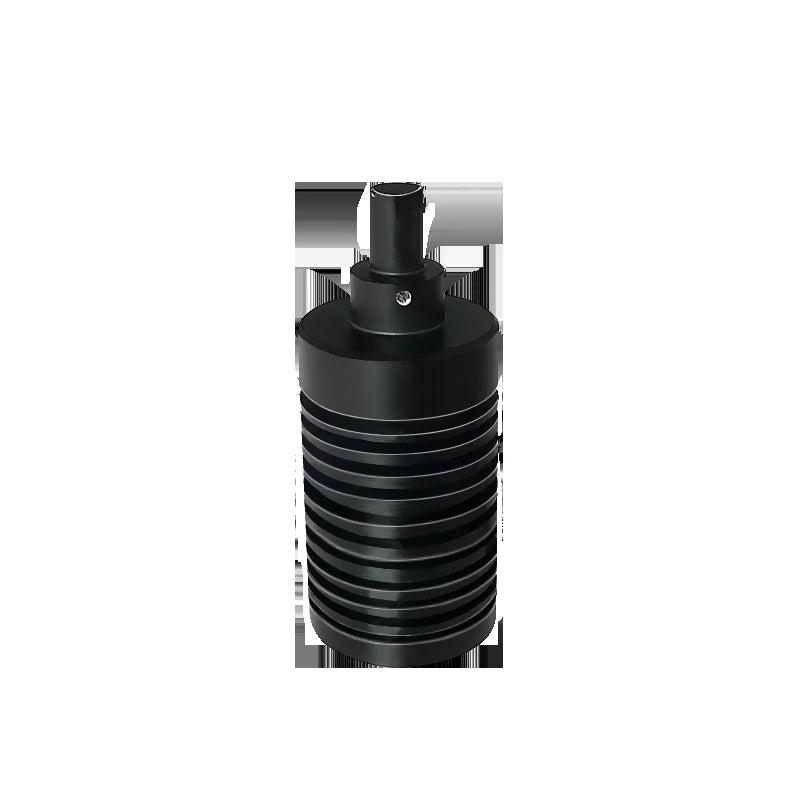

Small high-brightness point (spot) light with a finned heat sink, 3 V / 3 W, for small fields of view with high uniformity requirements; can be used with a coaxial lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0182 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| High (mm) | 69 |
Light
| LED type | SMD |
|---|---|
| Outside diameter of luminous area (mm) | 8 |
| Inside diameter of luminous area (mm) | 6 |
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 3 |
| Power (W) | 3 |

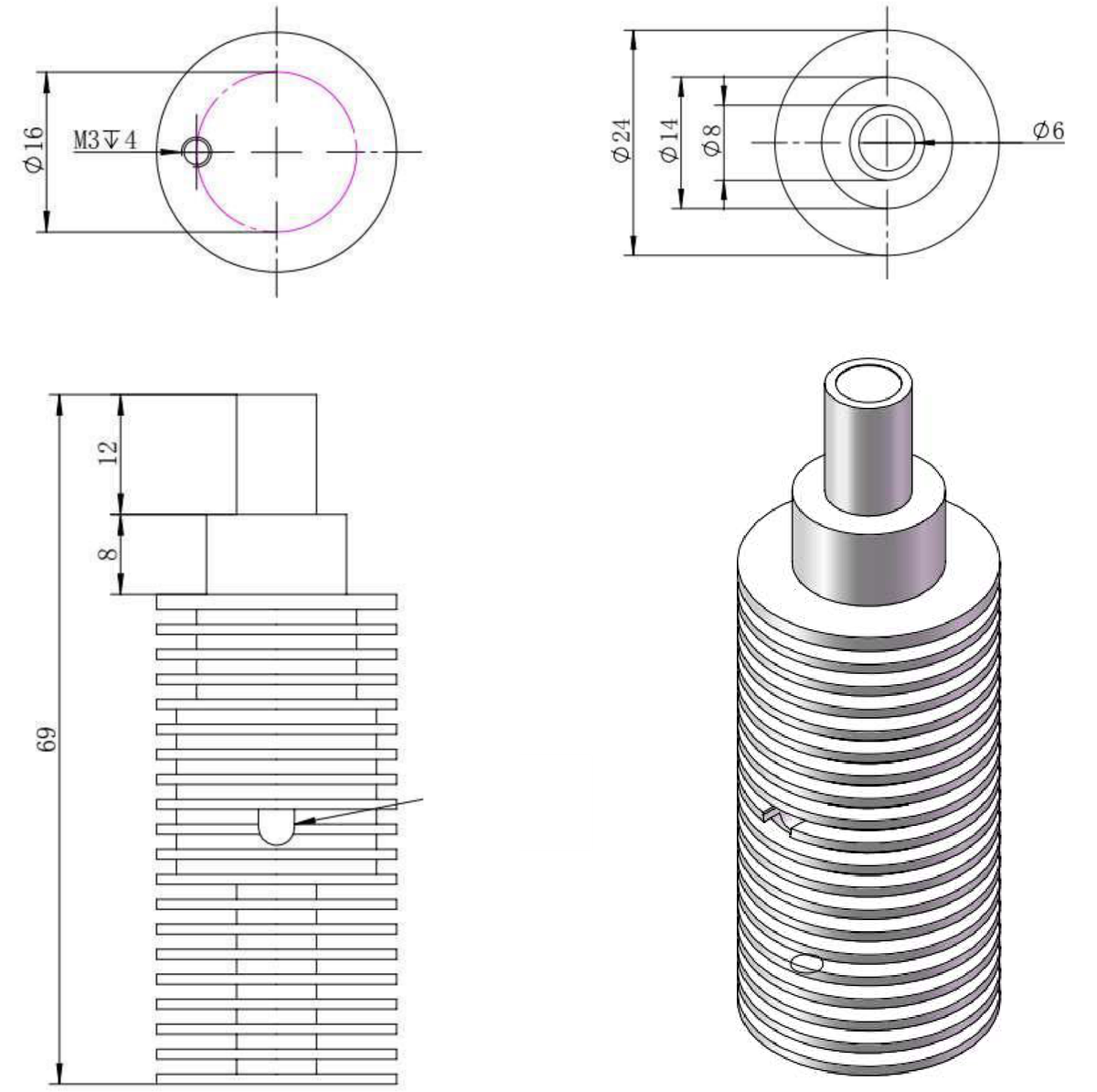

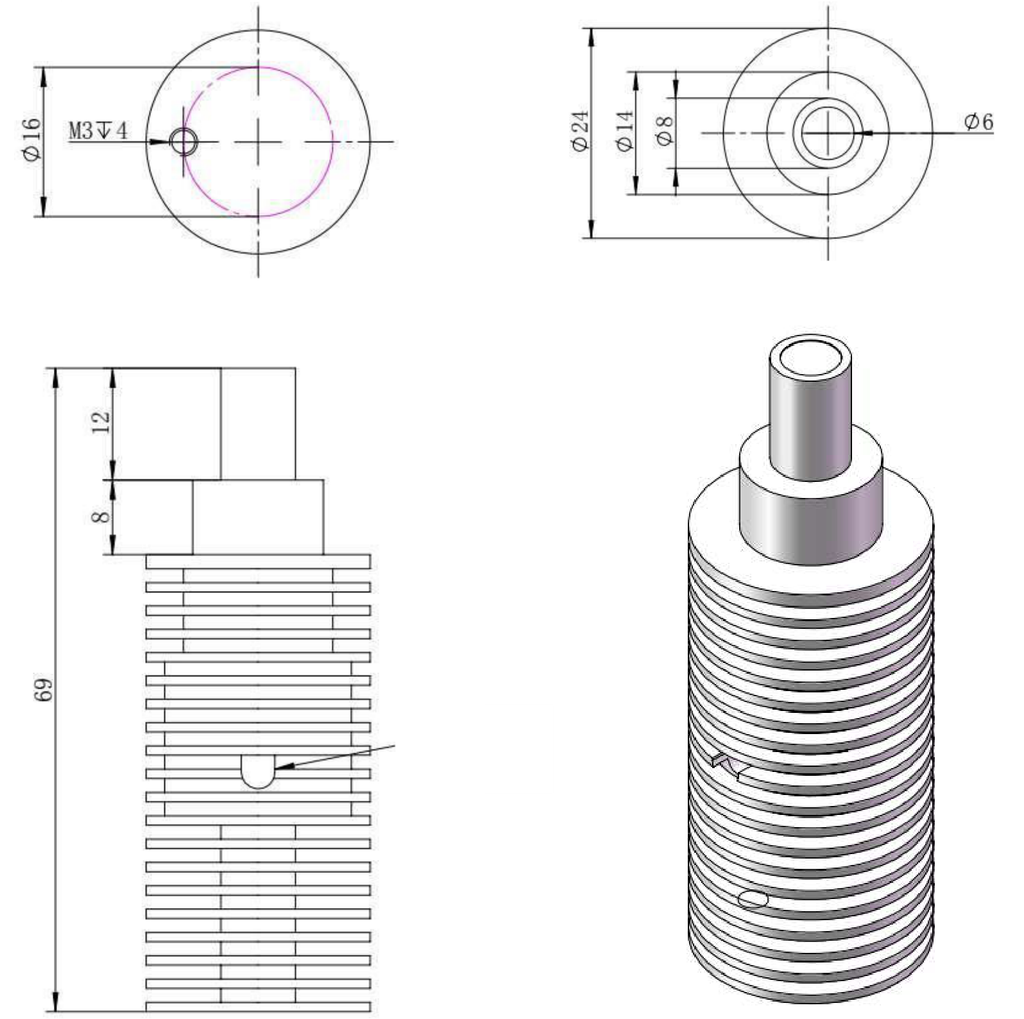

Mechanical
| Outside diameter (mm) | 24 |
|---|---|
| Shipping weight | 0.20 kg |
Other models in the Spot light (LS-SPT-S48) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0181 | 8 mm | $239.00 | Ships in 2-3 weeks | View |
| LS-SPT-0183 | 24 mm | $349.00 | Ships in 2-3 weeks | View |
