Spot lights

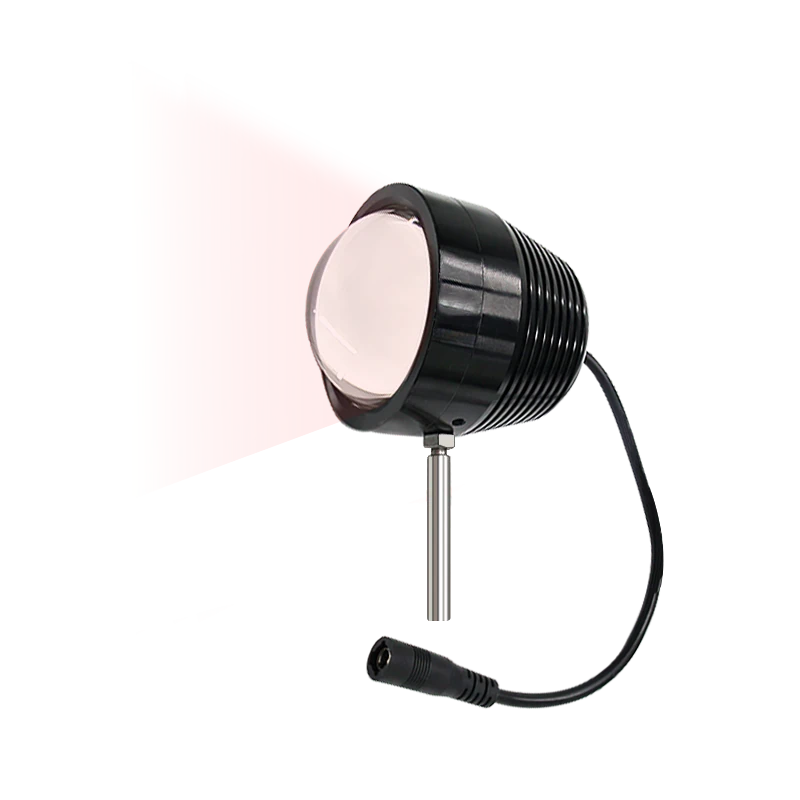

Near infrared light (LS-SPT-0180)
Model LS-SPT-0180
- ColourInfrared
- VoltageDC12-24V
- Power10W
- Wavelength850 nm
$649.00
Ships in 2-3 weeks
0.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Provides stable 850 nm near-infrared light for machine vision systems, with intelligent overtemperature protection, high brightness and uniform light; small size, light weight and easy to install.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0180 |
|---|---|
| Quantity of radiant energy | Po > 2600mW |
| Control mode | Always on, strobe, switch value, level (optional) |
| Structure | Aeronautical aluminum heat dissipation shell + original spherical lens |
| Surface treatment | Anodic oxidation blackening |
| Radiation energy | Po2600mW |
| Category | Near infrared light |
Light
| Light-emitting wafer | Industrial near infrared LED |
|---|---|
| Wavelength | 850 nm |
| Beam mode | 120 |
Environment and compliance
| Operating ambient temperature | -40 °C to 55 °C (refrigeration cover can be installed on high-temperature industrial site) |
|---|
Electrical
| Protection grade | IP67 |
|---|---|
| Voltage (V) | DC12-24V |
| Power (W) | 10W |
| The protection grades | Ip67 |
| Power/CH | 10W |
| Transmission voltage | 24V |

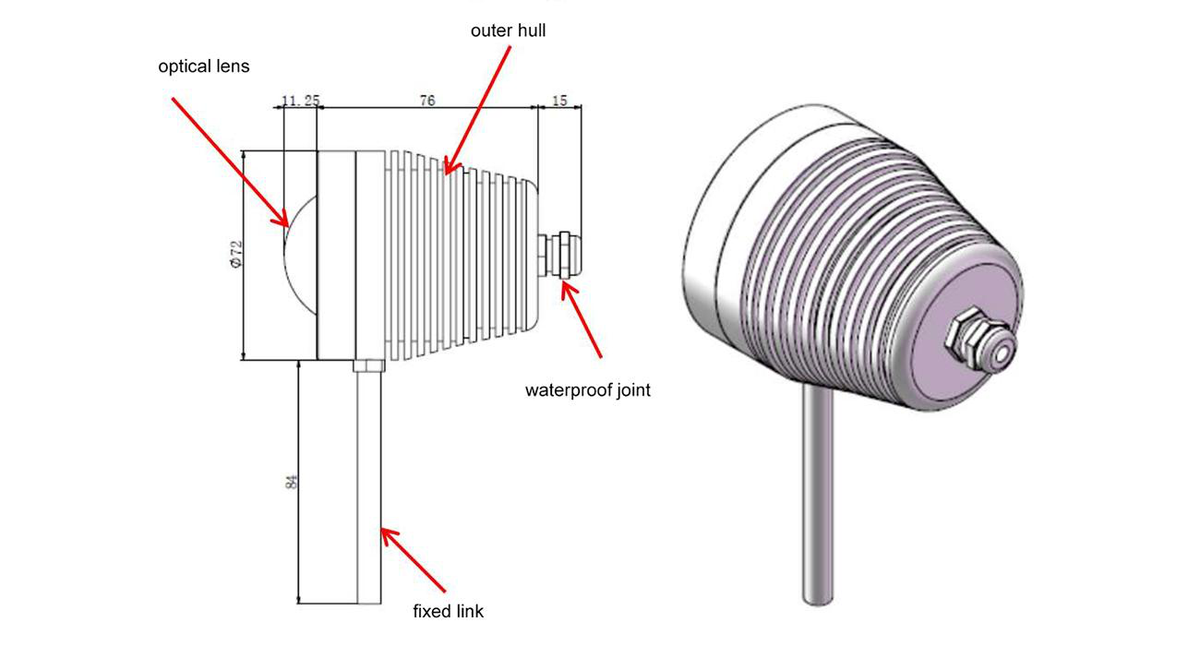

Mechanical
| Weight | 350 g |
|---|---|
| Mounting base | 1/4"-20 |
| Outer diameter | 72mm |
| External dimension | 75mm |
| Dimension | Outer diameter:72mm External dimension:75mm |
