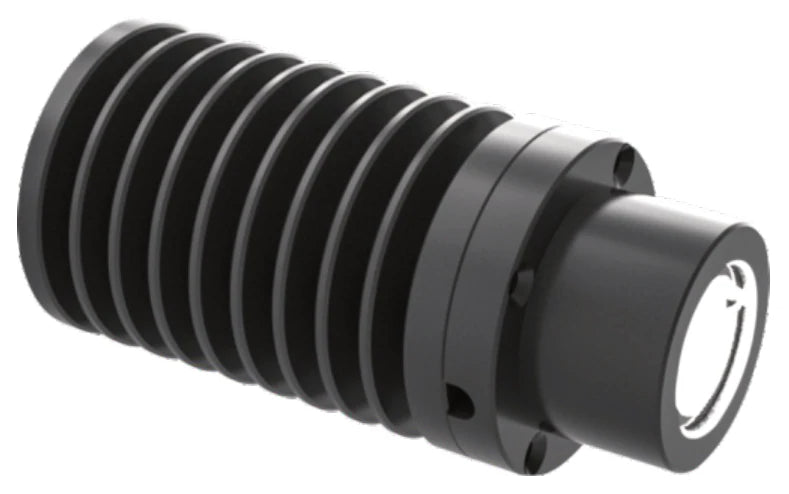

Representative photo of this series
Spot lights
Spot light source, power 4.5 W (LS-SPT-0177)
Model LS-SPT-0177
- ColourBlue
- Power4.5 W
- Voltage24 V
- Wavelength red620-630 nm
$259.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-intensity spot light, three times the brightness of standard spot lights; heat-dissipating design keeps the housing below 45 °C and a special light-guide optic reaches very high intensity with uniformity above 95%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0177 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| OD (mm) | 11 |
| Overall OD (mm) | 29 |
| Overall ID (mm) | 21 |
| Overall H (mm) | 60 |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Illuminance chart reference | LS-SPT-0178; uniformity at LWD 110 mm, FOV 40 x 40 mm (BJQ, RJQ, WDG) |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S32 series (the selected controller should match the power of the light source) |
|---|---|
| Power (W) | 4.5 |
| Recommended controller | LS-CTL-0160 |
| Supply voltage (derived) | 24 V DC, derived: every other LS-SPT-S46 model is rated 24 V |
Mechanical
| Shipping weight | 0.20 kg |
|---|
Other models in the Spot light source (LS-SPT-S46) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0179 | Green · 24 V DC | $239.00 | Ships in 2-3 weeks | View |
| LS-SPT-0178 | White · 5.5 W | $259.00 | Ships in 2-3 weeks | View |
