Representative photo of this series
Spot lights
6 mm High luminance spot light, power 10 W (LS-SPT-0176)
Model LS-SPT-0176
- ColourWhite
- Power10 W
- Adapted controllerConstant current controller

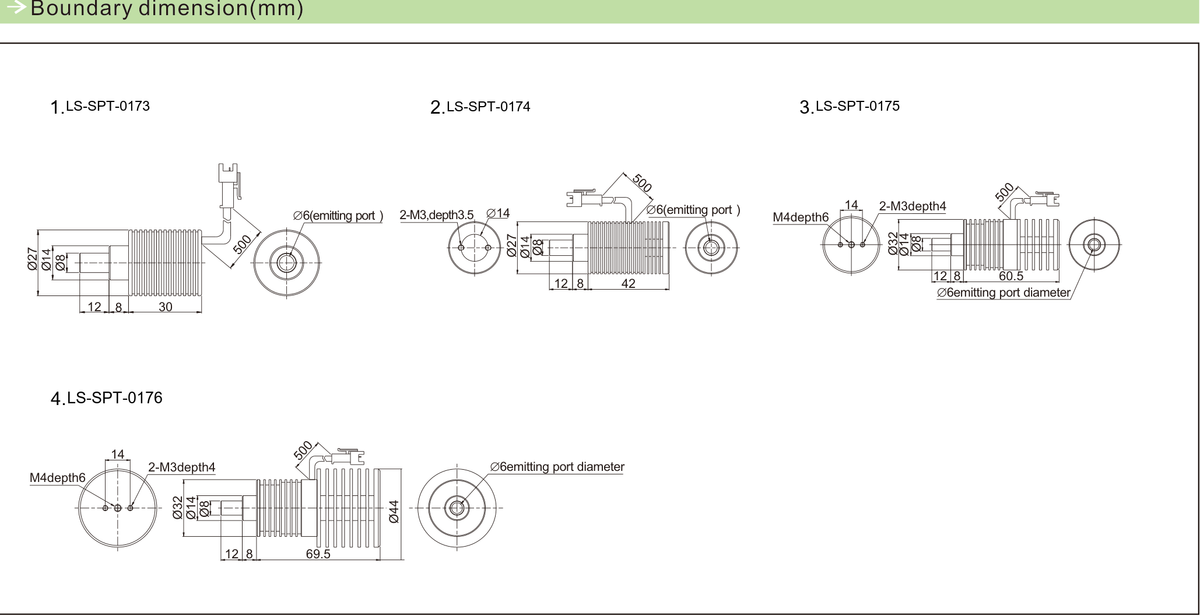

- Cable500 (drawings)
$229.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-power LED spot light with a column lens, used with microscope lenses and telecentric lenses.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0176 |
|---|---|
| Customizable | multi-area control, colour and colour temperature, cable length, installation method, power |
| Max. dia. (mm) | 44 (fins), 32 (body) |
Interfaces and I/O
| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting port dia. (mm) | 6 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | Constant current controller |
|---|---|
| Power (W) | 10 |
Mechanical
| Weight (g) | 122 |
|---|---|
| Length segments (mm) | 12 + 8 + 69.5 |
| Mounting | M4 depth 6, 2-M3 depth 4 |
Other models in the High luminance spot light (LS-SPT-S45) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0173 | 6 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-SPT-0174 | 6 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-SPT-0175 | 6 mm | $229.00 | Ships in 2-3 weeks | View |
