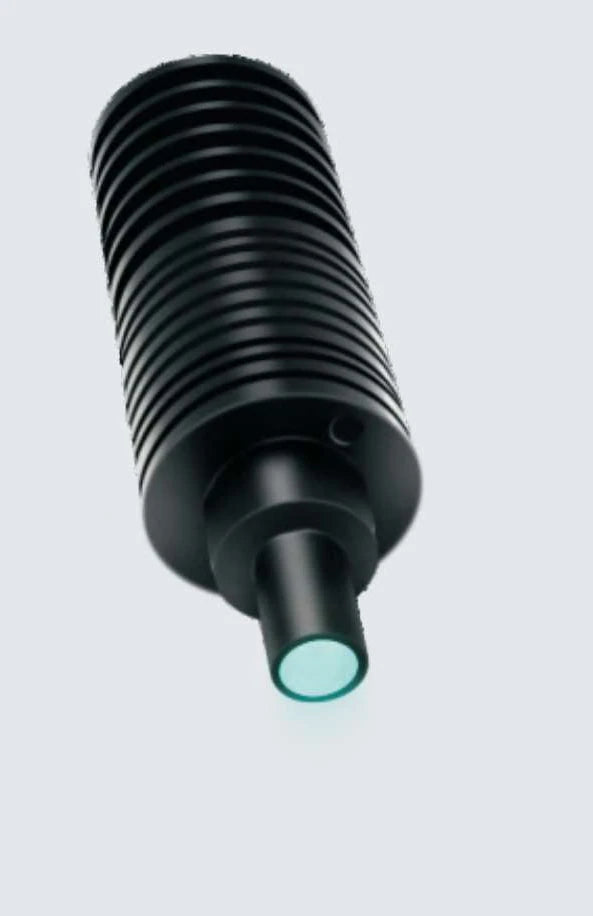

Representative photo of this series
Spot lights
8 mm Spot light, 74.7 mm long (LS-SPT-0146)
Model LS-SPT-0146
- ColourRed, Green, Blue, White
- Emitting areafront port dia. 8
- Power4.5 W
- Recommended controllersLS-CTL-0157 / LS-CTL-0148, -4T
$239.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Spot light with a front-end diameter of 8 mm or 9 mm and a 6 mm emitting diameter; high brightness and a small emitting area. Can be used alone in a machine vision system or with a microscope lens or a telecentric lens with coaxial function.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0146 |
|---|---|
| Expected life | Red, white, blue and white (as printed): 20000 h continuous, decays to 60% (typical one-year decay 10-20%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Body dia. (mm) | 24 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting size (mm) | front port dia. 8 |
|---|---|
| Emitting dia. (mm) | 6 |
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 22 °C, operating temperature within 25 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0157 / LS-CTL-0148, -4T |
|---|---|
| Power (W) | 4.5 |

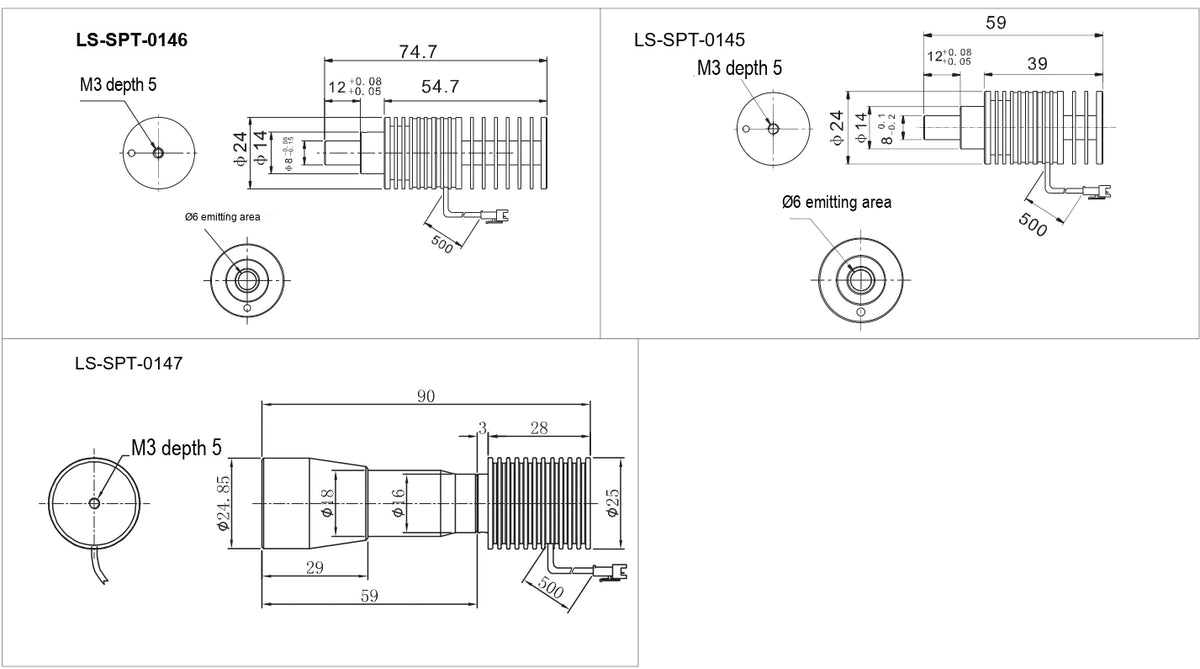

Mechanical
| Length (mm) | 74.7 |
|---|---|
| Shipping weight | 0.20 kg |
Other models in the Spot light (LS-SPT-S37) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0145 | 8 mm | $239.00 | Ships in 2-3 weeks | View |
| LS-SPT-0147 | 8 mm | $239.00 | Ships in 2-3 weeks | View |
