Representative photo of this series

Spot lights

Spot collector light, 94.2 x 24 mm (LS-SPT-0143)

Model LS-SPT-0143

ColourWhite
SizeL94.2xW24(mm)
Power4W
LED colourR(red)/W(white)

$349.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

A condenser lens is used to converge the diffused light into a uniform beam. The beam parallelism and uniformity are better. Can be used as back light to detect liquid impurities.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPT-0143
Note	UV & IR light can be customized as required.
Light spot dia., centre / peripheral, by WD (mm)	WD 50: Ø18 / Ø18; WD 100: Ø28 / Ø32; WD 150: Ø41 / Ø53; WD 200: Ø55 / Ø74; WD 250: Ø75 / Ø96; WD 300: Ø87 / Ø118

Interfaces and I/O

Cable polarity	1: +, 2: -, 3: NC

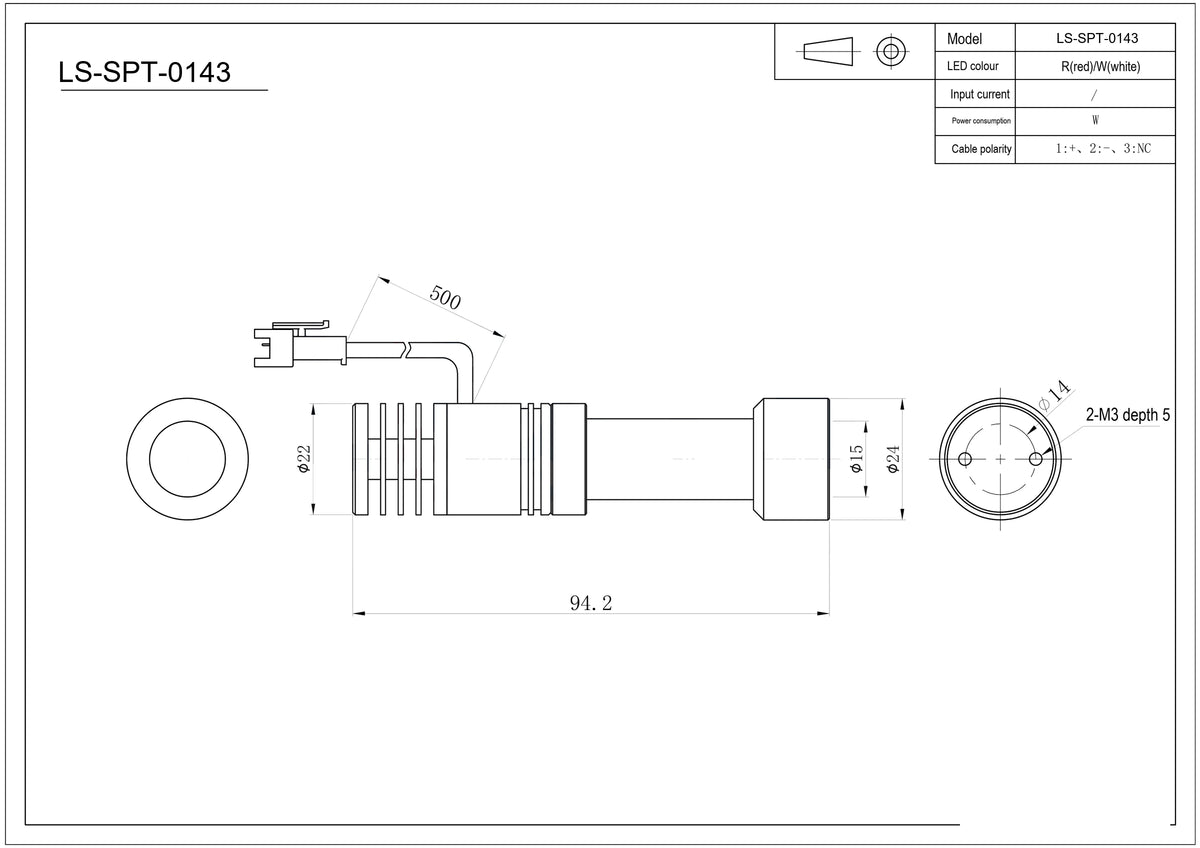

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)

Electrical

Power	4W

Mechanical

Dimension	L94.2xW24(mm)
Mounting holes	2-M3 depth 5
Shipping weight	0.50 kg

Other models in the Spot collector light (LS-SPT-S36) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-SPT-0139	White · L97.2xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0140	White · L97.2xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0141	White · L113.7xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0142	White · L94.2xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0144	White · L110.2xW24(mm)	$349.00	Ships in 2-3 weeks	View
