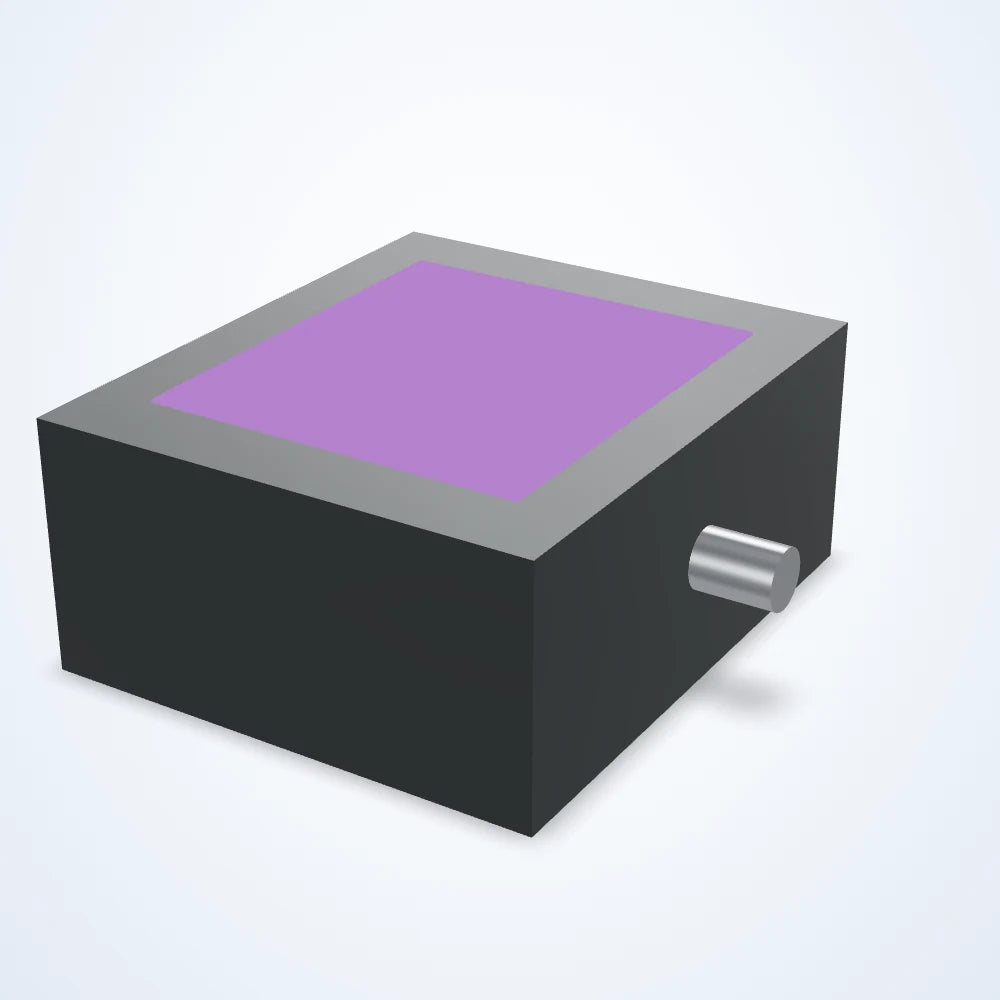

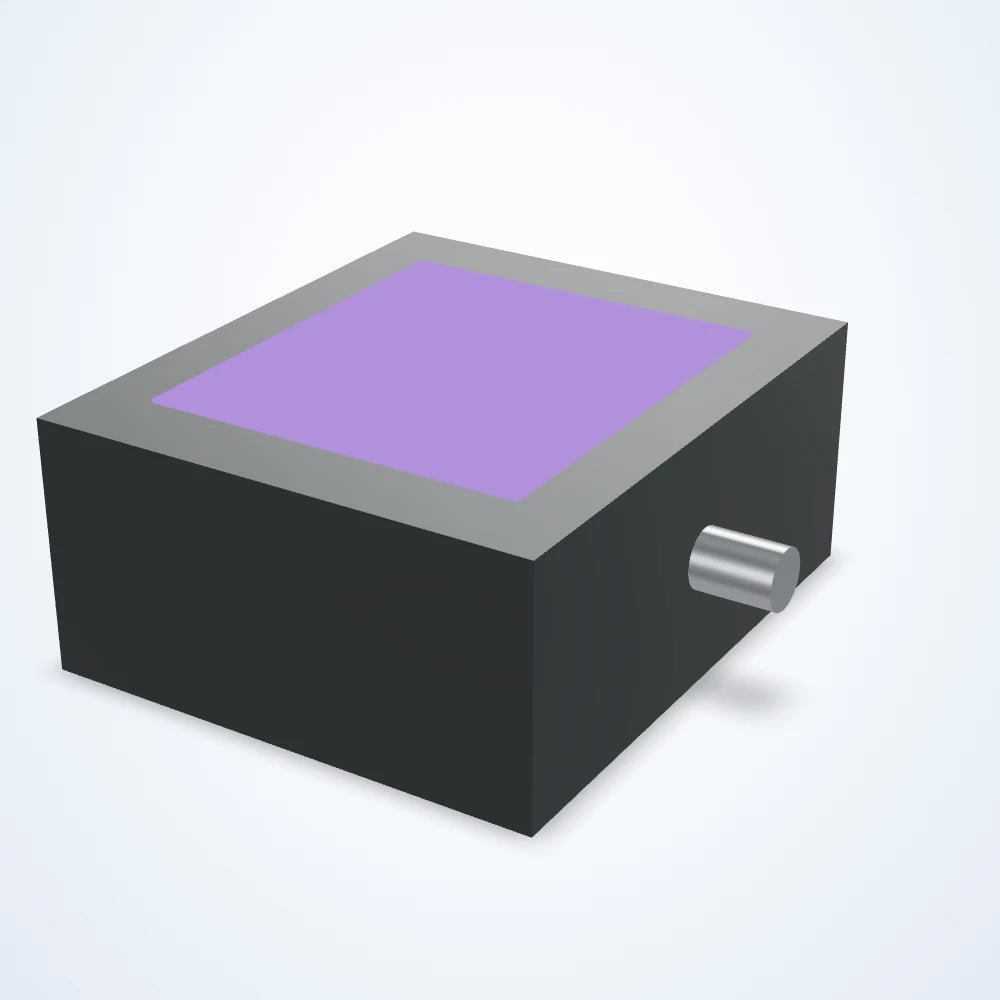

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 76.2 x 85.7 mm lit area, driver included (LS-SPT-0120)
Model LS-SPT-0120
- ColourWhite, Infrared, Red, Green, UV, Blue
- Voltage24 VDC
- Wavelength365 nm, 395 nm, 850 nm, 940 nm
- Lit length76.2 mm
from $1,089.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 40 available
Configuration LS-SPT-0120-01 $1,459.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. Lit area 76.2 x 85.7 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, polarized below (40 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0120 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage, Integrated Potentiometer |
| Operating modes | Constant On, Constant On – Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP68 |
| Storage temperature | -10 to 40 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Maximum constant on current (mA) | 400 |
| Maximum input power constant on (W) | 9.6 |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |

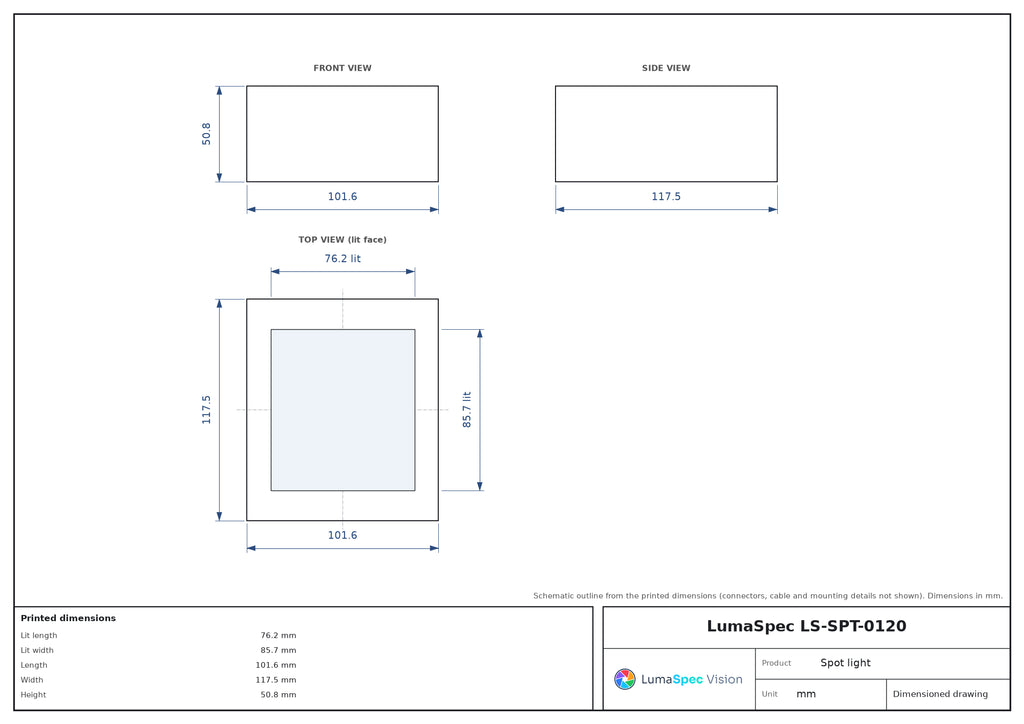

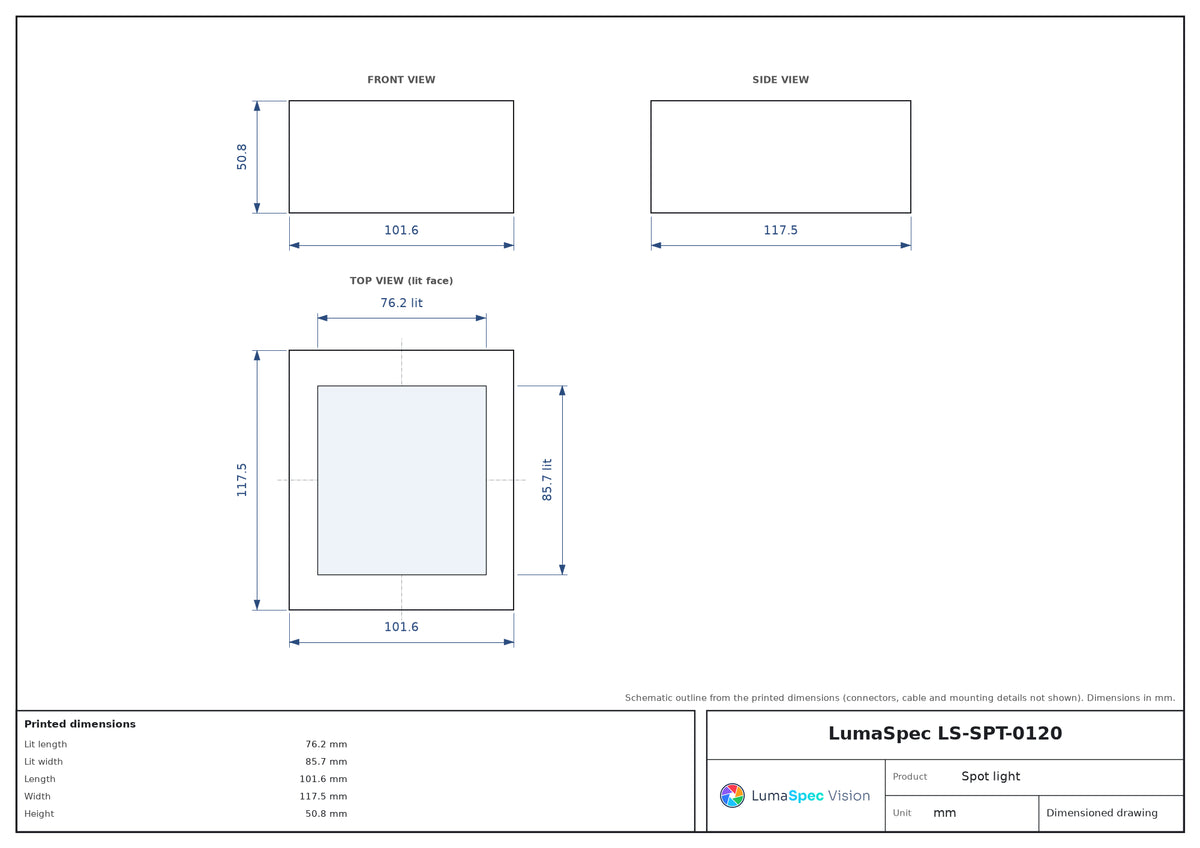

Mechanical
| Lit length (mm) | 76.2 |
|---|---|
| Lit width (mm) | 85.7 |
| Length (mm) | 101.6 |
| Width (mm) | 117.5 |
| Height (mm) | 50.8 |
| Housing | Stainless Steel |
| Mounting | Through Holes |
