Spot lights
Spot light, 46 x 69 mm lit area (LS-SPT-0119)
Model LS-SPT-0119
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- Wavelength850 nm
- Lit length46 mm
from $269.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 18 available
Configuration LS-SPT-0119-01 $269.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. Lit area 46 x 69 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (18 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0119 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -18 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -18 to 40 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Maximum constant on current (mA) | 375 |
| Maximum input power constant on (W) | 9 |
| NPN trigger current (mA) | 15 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 20 |
| PNP trigger voltage (V) | 4-24 VDC |

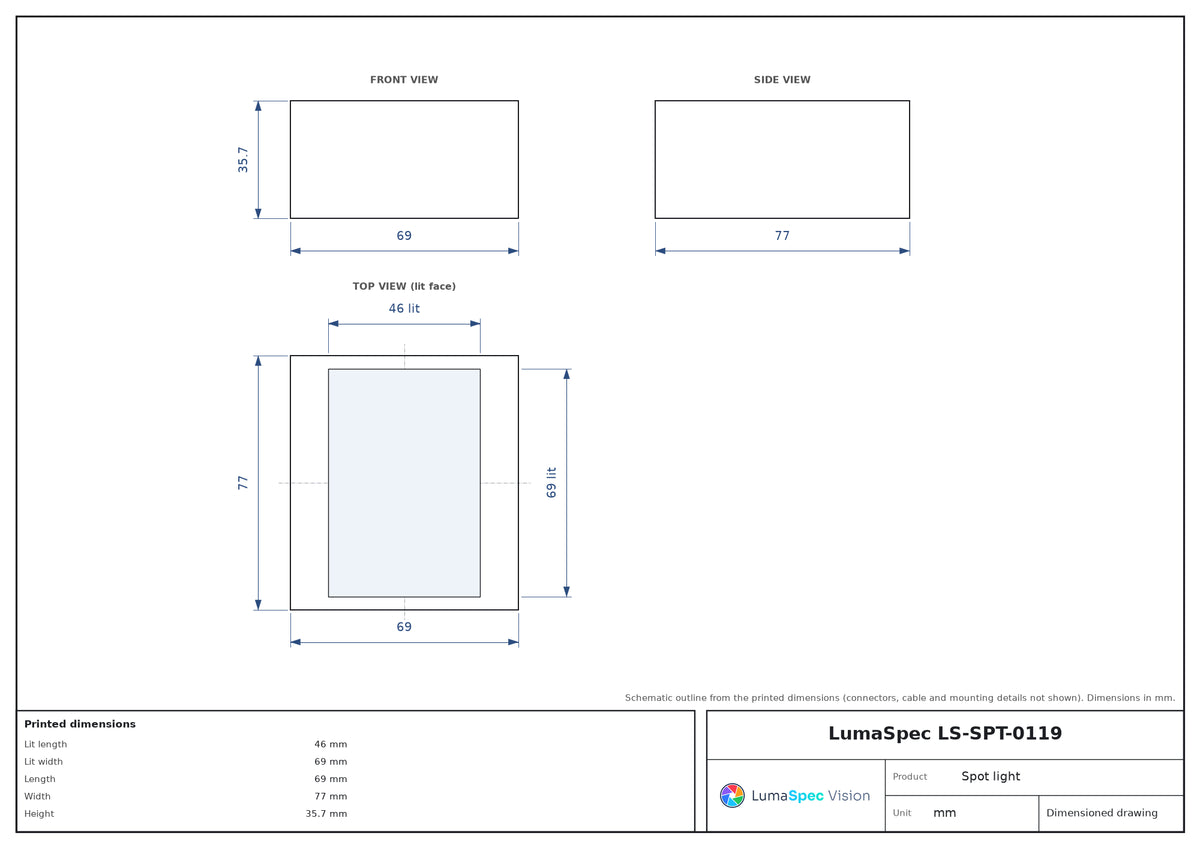

Mechanical
| Lit length (mm) | 46 |
|---|---|
| Lit width (mm) | 69 |
| Length (mm) | 69 |
| Width (mm) | 77 |
| Height (mm) | 35.7 |
| Housing | Plastic |
| Mounting | Through Holes |
