Spot lights
Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112)
Model LS-SPT-0112
- ColourWhite, Infrared, Red, Green, UV, Blue
- Voltage24 VDC
- Wavelength365 nm, 395 nm, 850 nm, 940 nm
- Lit length76.2 mm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 23 available
Configuration LS-SPT-0112-01 $1,389.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. Lit area 76.2 x 85.7 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (23 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0112 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Sold Separately |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 10 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP68 |
| Storage temperature | -10 to 40 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 3000 mA |
| Max overcurrent strobe input power | 72 W |
| Maximum current (overcurrent strobe) (mA) | 3000 |
| Maximum input power overcurrent strobe (W) | 72 |
| Maximum overcurrent strobe duration (ms) | 50 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Minimum overcurrent strobe duration (µs) | 1 |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical
| Lit length (mm) | 76.2 |
|---|---|
| Lit width (mm) | 85.7 |
| Length (mm) | 101.6 |
| Width (mm) | 117.5 |
| Height (mm) | 50.8 |
| Housing | Stainless Steel |
| Mounting | Through Holes |
LS-SPT-0112
See this component from every angle.

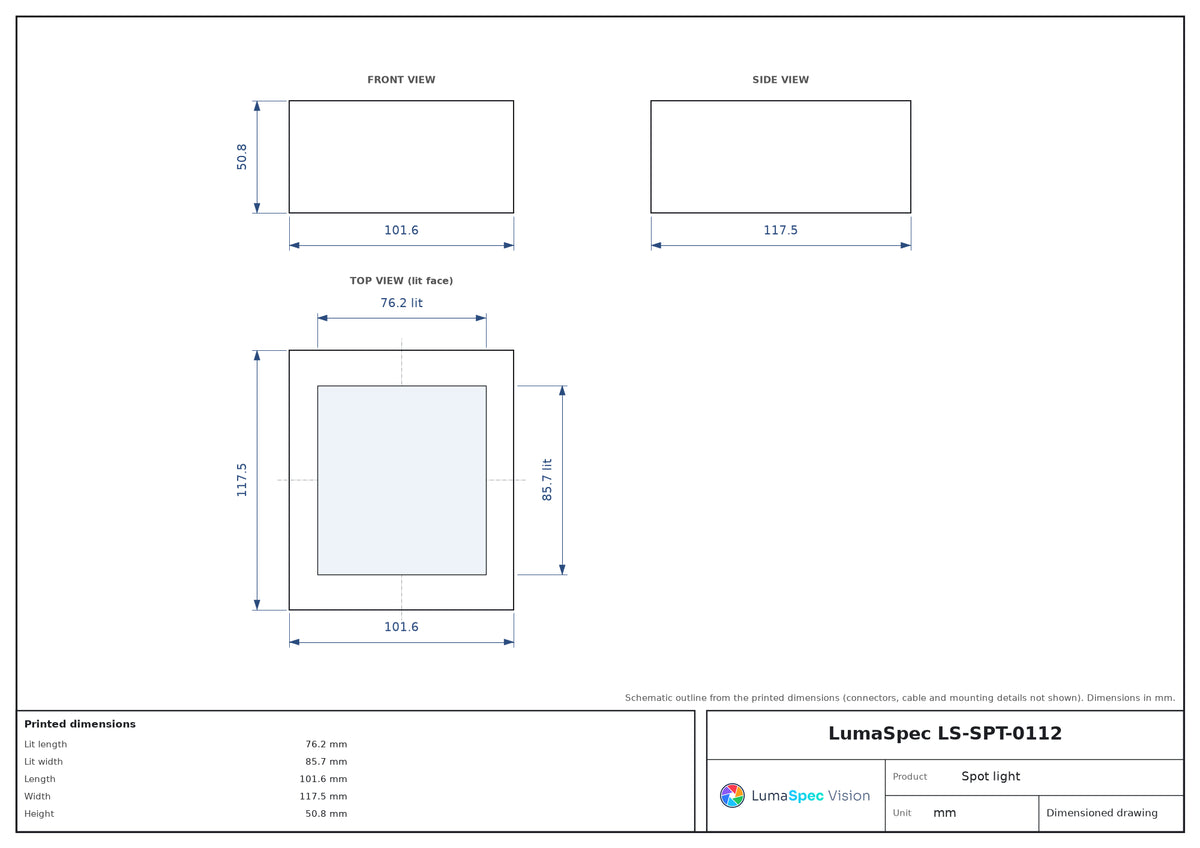

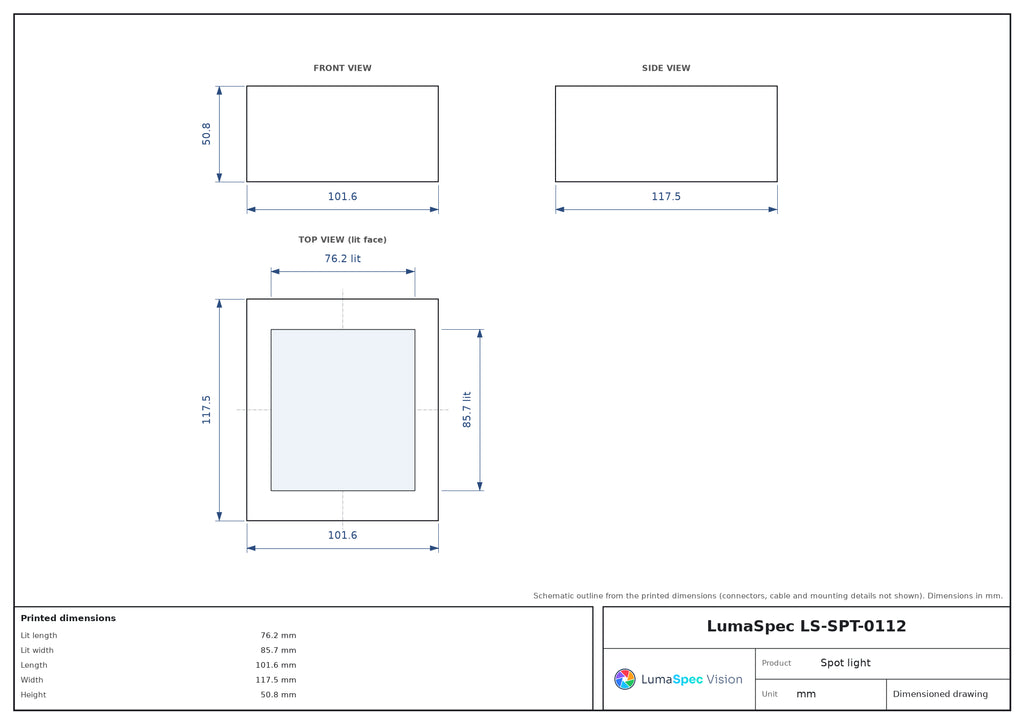

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit length (mm)
- 76.2
- Lit width (mm)
- 85.7
- Voltage
- 24 VDC
- Connector
- 5 Pin M12 Male A-Coded
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
