Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 73.7 x 9.4 mm, 405nm Violet, 405 nm (LS-SPT-0070)

Model LS-SPT-0070

ColourUV
Voltage24 VDC
Wavelength405nm Violet
Lit diameter5.9 mm

$379.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPT-0070
Connection at light	Hardwired
Driver included	Included
Driver location	In Line
Intensity control	Analog Voltage
Operating modes	Constant On
Collimated	Not Collimated
Daisy chain	No
Direct connect	No
Maximum duty cycle (%)	100
Polarized	Not Polarized

Interfaces and I/O

Connector	Flying Leads
Cable length (mm)	2000

Light

Colour	405nm Violet
Diffused	Not Diffused
Wavelength	405nm Violet

Environment and compliance

Operating temperature	up to 60 °C
IP rating	IP67
Compliance	CE
Minimum operating temperature	32 °F (0 °C)

Electrical

Voltage	24 VDC
Strobe trigger input	Constant On Only
Maximum constant on current (mA)	300
Maximum input power constant on (W)	7.2

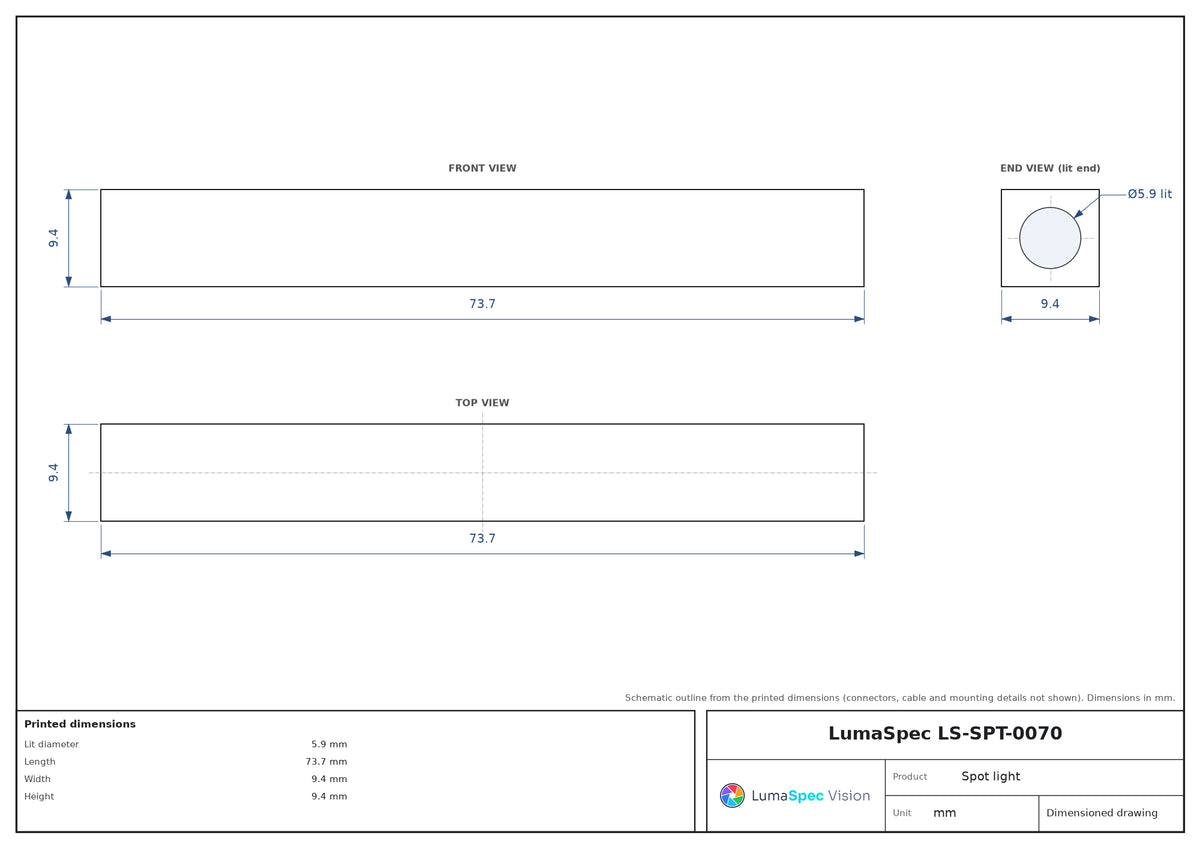

Mechanical

Lit diameter (mm)	5.9
Length (mm)	73.7
Width (mm)	9.4
Height (mm)	9.4
Housing	Aluminum
Mounting	Tapped Holes
