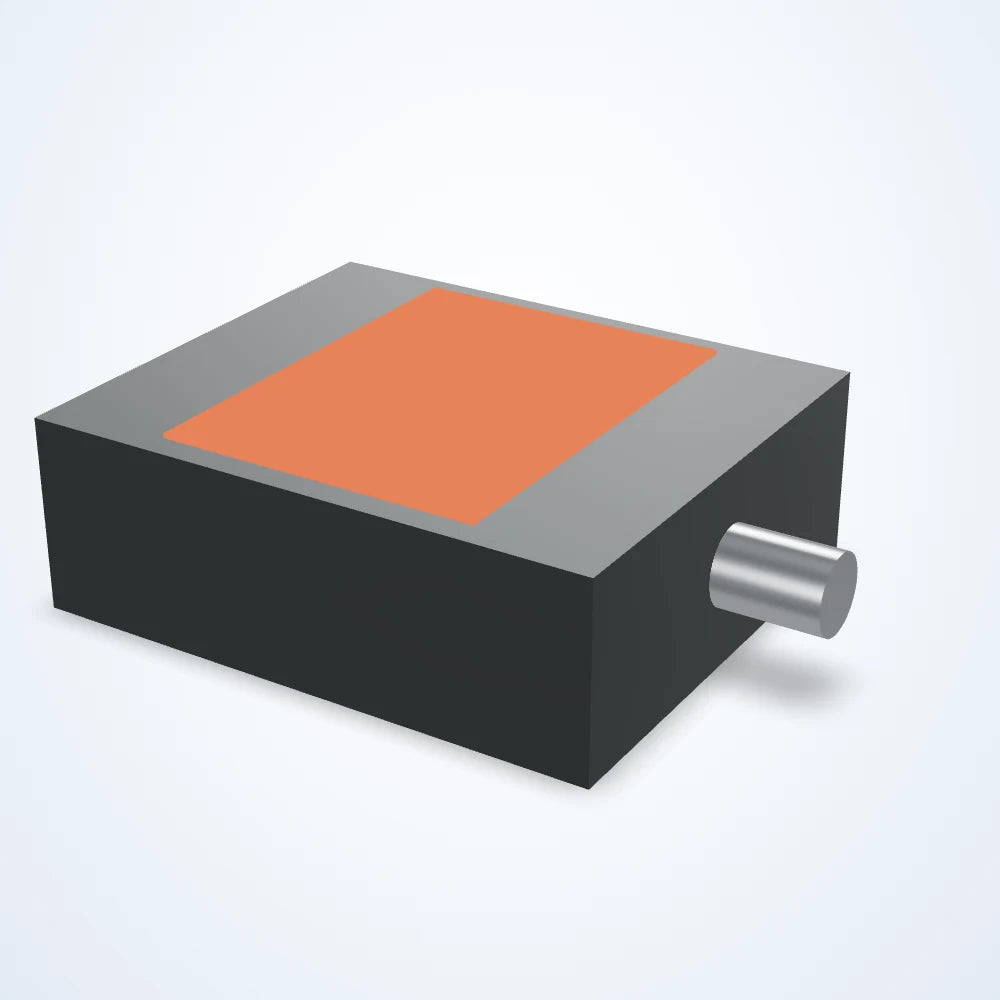

Rendered illustration: the actual product may differ in appearance.
Spot lights
Spot light, 49.9 x 66.6 mm lit area, 625nm Red, 21° lens (LS-SPT-0018)
Model LS-SPT-0018
- ColourRed
- Voltage24 VDC
- Angle21 Degree
- Wavelength625nm Red
$269.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. Lit area 49.9 x 66.6 mm; 24 VDC supply; connection: 5 pin m12 male a-coded.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0018 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | 625nm Red |
|---|---|
| Lens / beam angle | 21 Degree |
| Diffused | Not Diffused |
| Wavelength | 625nm Red |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | PNP Trigger |
| Max overcurrent strobe current | 1350 mA |
| Max overcurrent strobe input power | 6 W |
| Maximum constant on current (mA) | 270 |
| Maximum current (overcurrent strobe) (mA) | 1350 |
| Maximum input power constant on (W) | 6.5 |
| Maximum input power overcurrent strobe (W) | 6 |
| Maximum overcurrent strobe duration (ms) | 5 |
| Maximum overcurrent strobe latency (µs) | 10 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger voltage (V) | 4-24 VDC |

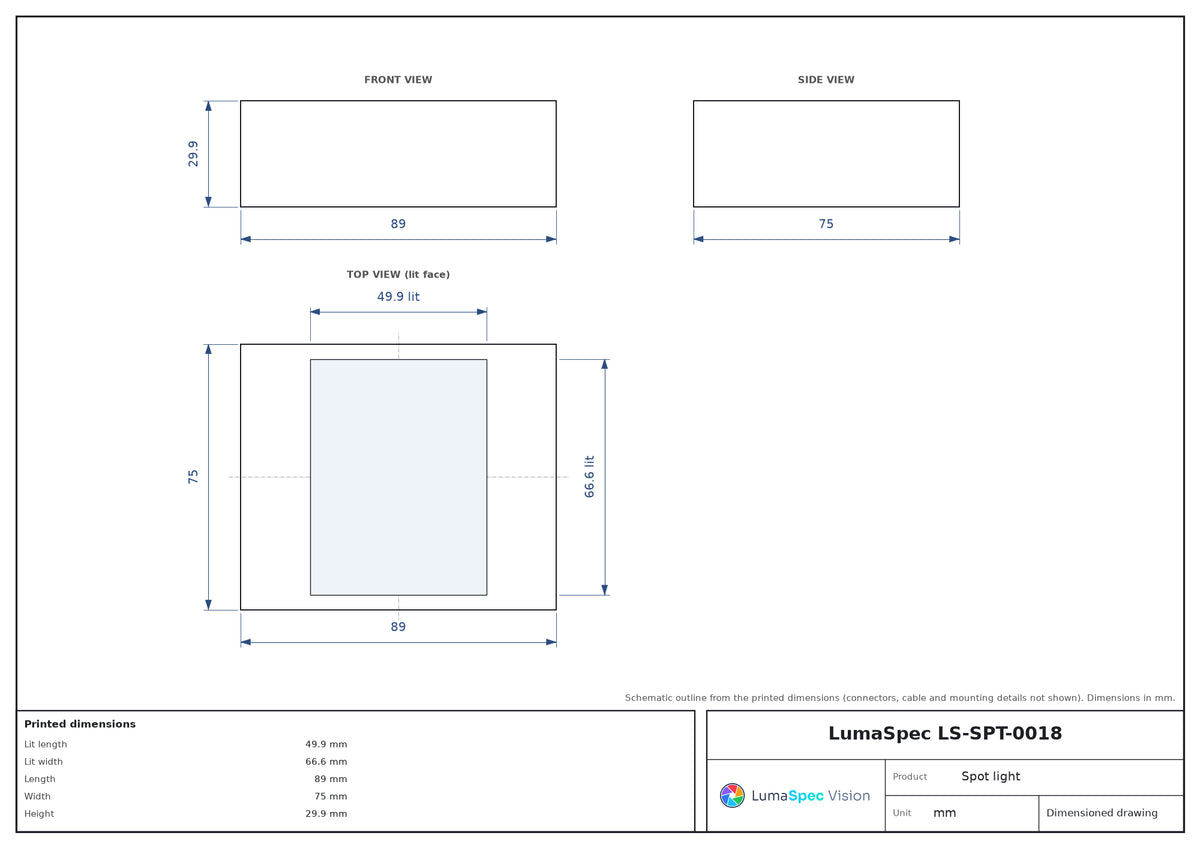

Mechanical
| Lit length (mm) | 49.9 |
|---|---|
| Lit width (mm) | 66.6 |
| Length (mm) | 89 |
| Width (mm) | 75 |
| Height (mm) | 29.9 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
