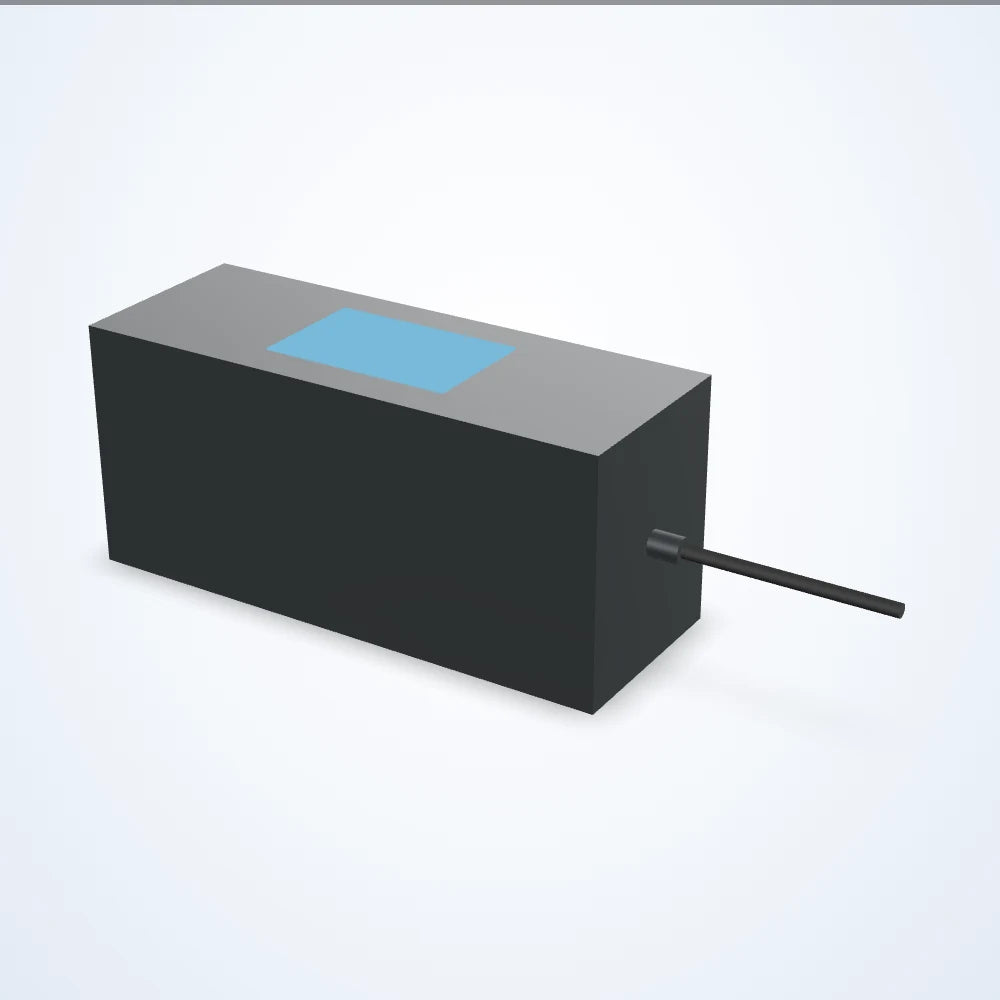

Rendered illustration: the actual product may differ in appearance.
Special lights
Structured light, 216.8 x 80 mm (LS-SPL-0003)
Model LS-SPL-0003
- ColourWhite, Red, Green, Blue
- Voltage24 VDC
- AngleDiffused
- Length216.8 mm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 4 available
Configuration LS-SPL-0003-1 $1,679.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Structured light that projects a pattern for 3D and surface-defect inspection. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (4 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPL-0003 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | -18 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -18 to 40 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 8800 mA |
| Max overcurrent strobe input power | 211 W |
| Maximum constant on current (mA) | 4000 |
| Maximum current (overcurrent strobe) (mA) | 8800 |
| Maximum input power constant on (W) | 96 |
| Maximum input power overcurrent strobe (W) | 211 |
| Maximum overcurrent strobe duration (ms) | 50 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 1 |
| Minimum overcurrent strobe duration (µs) | 10 |
| NPN trigger current (mA) | 15 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 15 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical
| Length (mm) | 216.8 |
|---|---|
| Width (mm) | 80 |
| Height (mm) | 97.5 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |

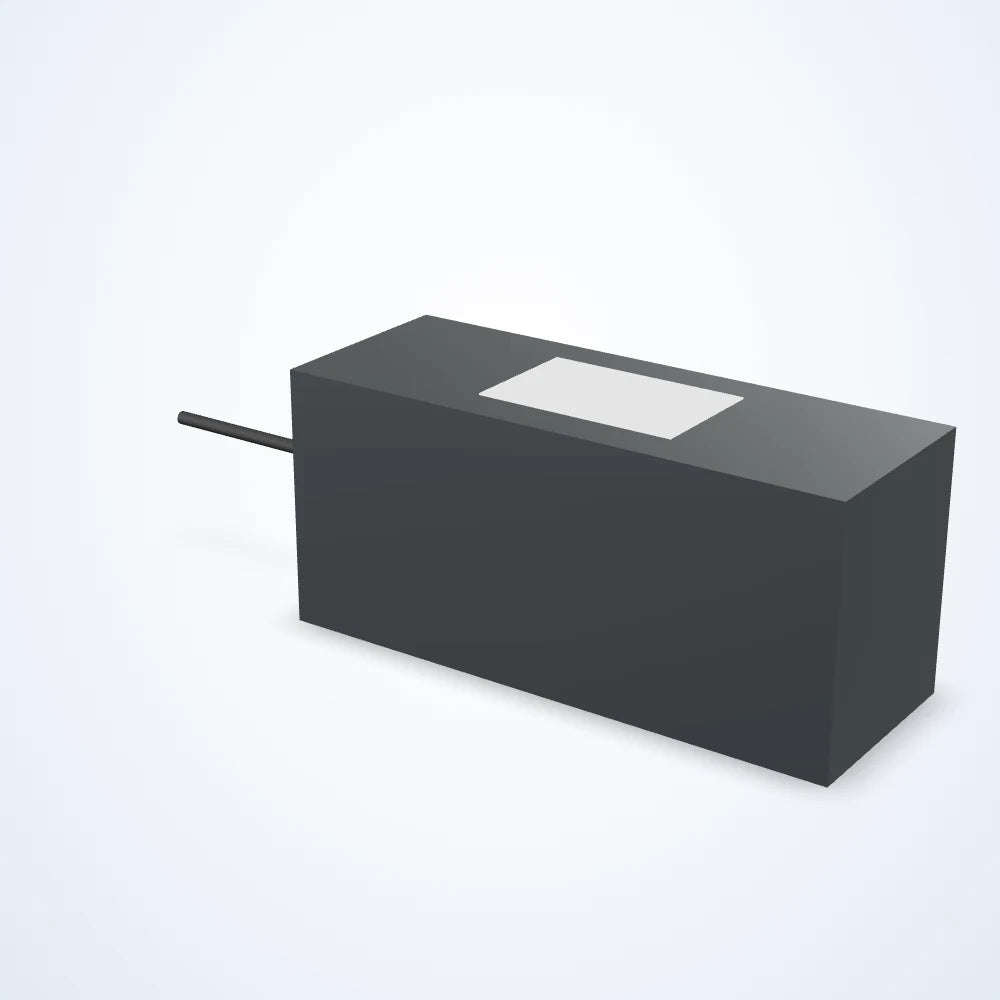

LS-SPL-0003
See this component from every angle.

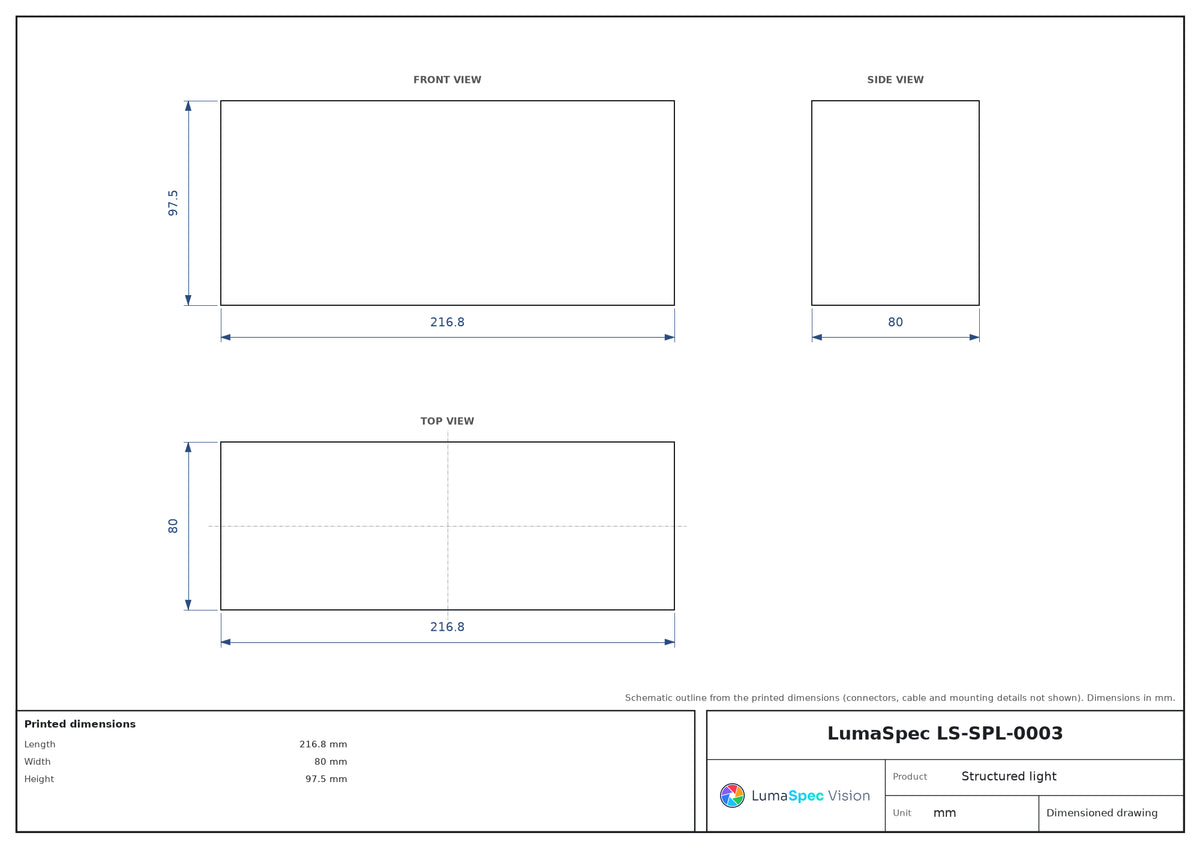

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Voltage
- 24 VDC
- Connector
- 5 Pin M12 Male A-Coded
- Lens / beam angle
- Diffused
- Length (mm)
- 216.8
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
