Representative photo of this series

Special lights

200 mm Multi-angle ring light (LS-SPC-0148)

Model LS-SPC-0148

ColourWhite
SizeOut dia. 225,Inner dia. 35,Height 64mm
Voltage24 V
Power26.6 W

$859.00

Ships in 2-3 weeks

2.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

It adopts high intensity and high brightness LEDs and its brightness can be controlled independently in each angle to inspect scratches, stains and other defects on glass surface accurately.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPC-0148
Customizable	emitting angle, outer and inner diameter, light array quantities, colour and colour temperature, multi-area control, cable length, installation method
Note	UV & IR light can be customized as required.
Outer dia. (mm)	225

Optics

Inner (aperture) dia. (mm)	35

Interfaces and I/O

Extension cable options	PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Custom wavelengths	UV & IR light can be customized as required
Emitting dia. (mm)	200
LED colour	R(red)/W(white)

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory-default luminance)

Electrical

Voltage	24 V
Adapted controller	Strobe controller, analog controller, digital controller
Power (W)	26.6
Power	31.4W
Input voltage	DC 24V (max)

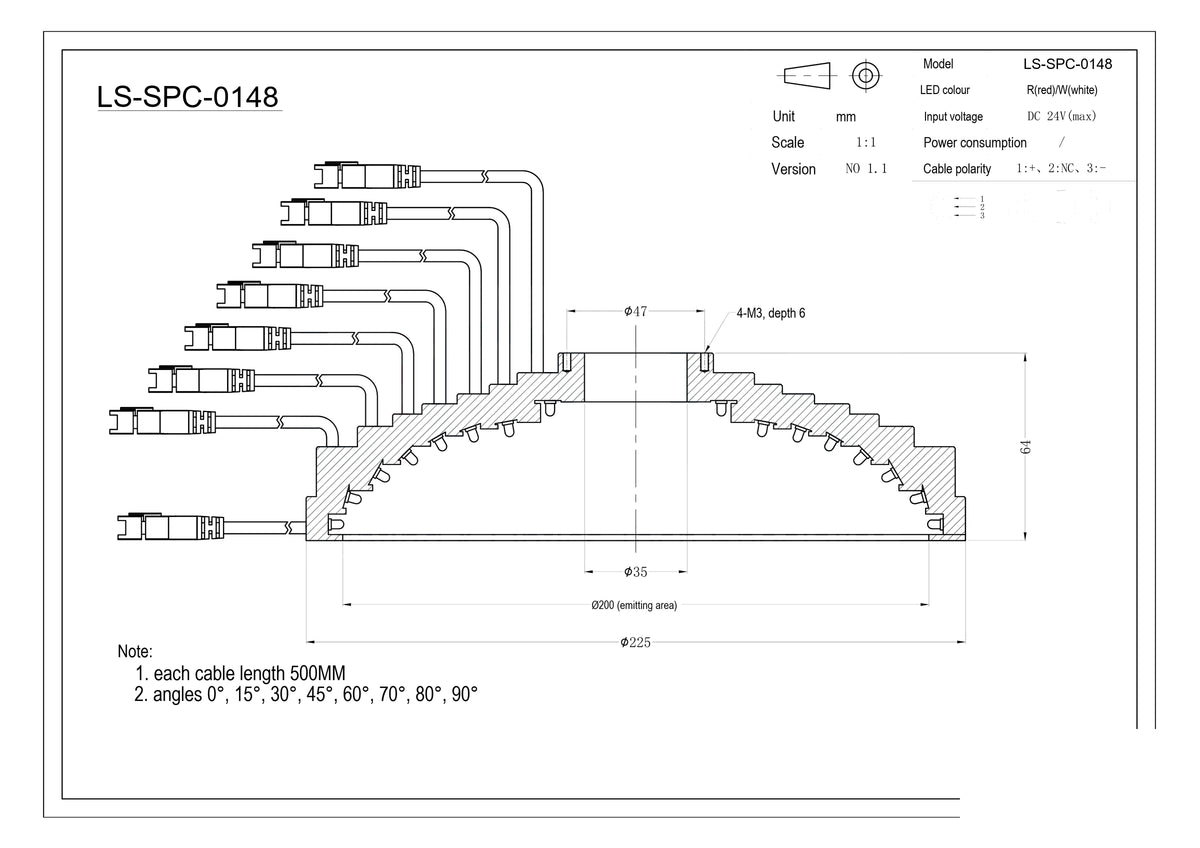

Mechanical

Weight (g)	1689
Height (mm)	64
Mounting	4-M3 depth 6 on dia. 47
Dimension	Out dia. 225,Inner dia. 35,Height 64mm
Mounting holes	4-M3 depth 6

Downloads

Datasheet (PDF)LS-SPC-0148 · 2.6 MB

Features

Multiple angles controlled independently, compact structure
Can be customized for multiple independently controlled colours
Multiple angle can be controlled independently, compact structure
Can customized that multiple color can be controlled independently

Applications

Glass surface scratch inspection
Multiple characteristics under microscope inspection
Imaging example: defect inspection on a rubber gasket (LS-SPC-0148-B)
Glass surface scratch inspection, multiple characteristics of the microscope inspection
Seal ring surface defects inspection
