Representative photo of this series
Special lights
105 mm dia. non-standard custom lights (LS-SPC-0121)
Model LS-SPC-0121
- Emitting area80 x 0.26 mm
- Voltage24 V DC (12 V on request)
- Outer diameter105 mm
- Inner diameter90 mm
$589.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Non-standard (tailor-made) lights listed in the catalog's non-standard series table.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

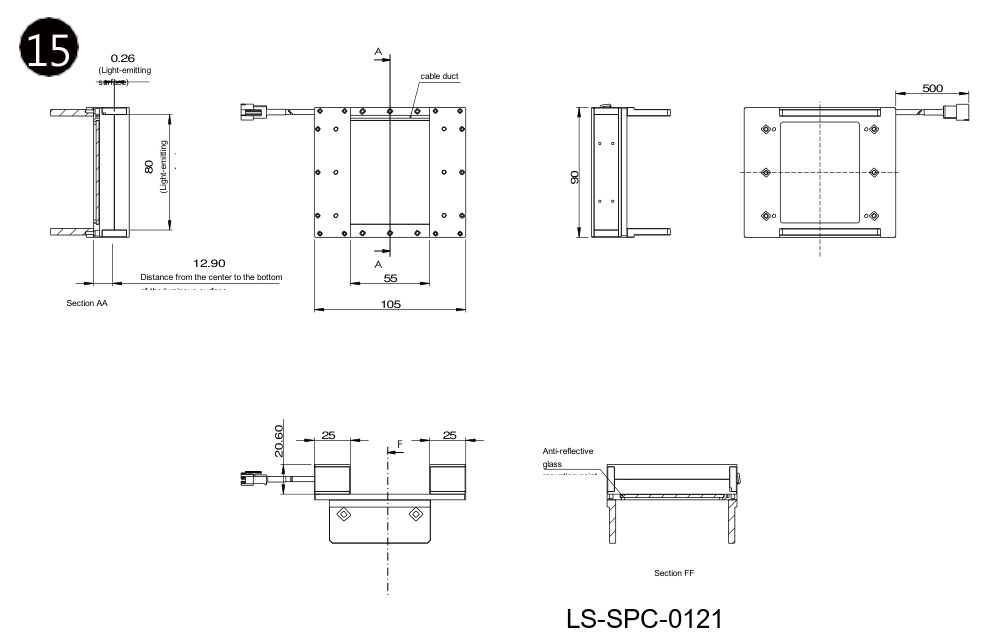

Specifications
General
| Model | LS-SPC-0121 |
|---|---|
| Anti-reflective glass | fitted (labelled on section FF) |
| Distance from centre to bottom (mm) | 12.90 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting surface (mm) | 80 x 0.26 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 5 |
| Power white/blue/green (W) | 5.4 |
Mechanical
| Outer diameter (mm) | 105 |
|---|---|
| Inner diameter (mm) | 90 |
| Height (mm) | 20.6 |
| Shipping weight | 0.35 kg |
Other models in the Non-standard custom lights (LS-SPC-S24) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0120 | 24 V DC (12 V on request) · 100 mm | $559.00 | Ships in 2-3 weeks | View |
