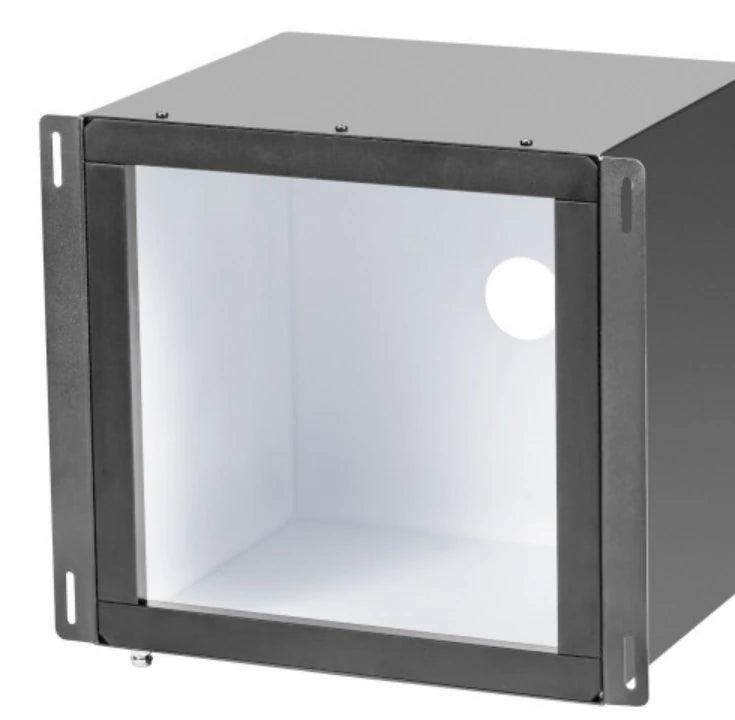

Representative photo of this series
Special lights
430 x 330 mm Light box light source (LS-SPC-0098)
Model LS-SPC-0098
- ColourWhite
- Emitting area430 x 330 mm
- Power71.2 W
- Voltage24 V
$1,759.00
Ships in 2-3 weeks
11.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Large-area shadowless illumination with strong anti-interference; eliminates interference from uneven surfaces and reflections; all-angle illumination suited to undulating and reflective objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0098 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Camera hole | dia. 45 through hole |
Interfaces and I/O
| Cable | 500 mm |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area (mm) | 430 x 330 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power (W) | 71.2 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |

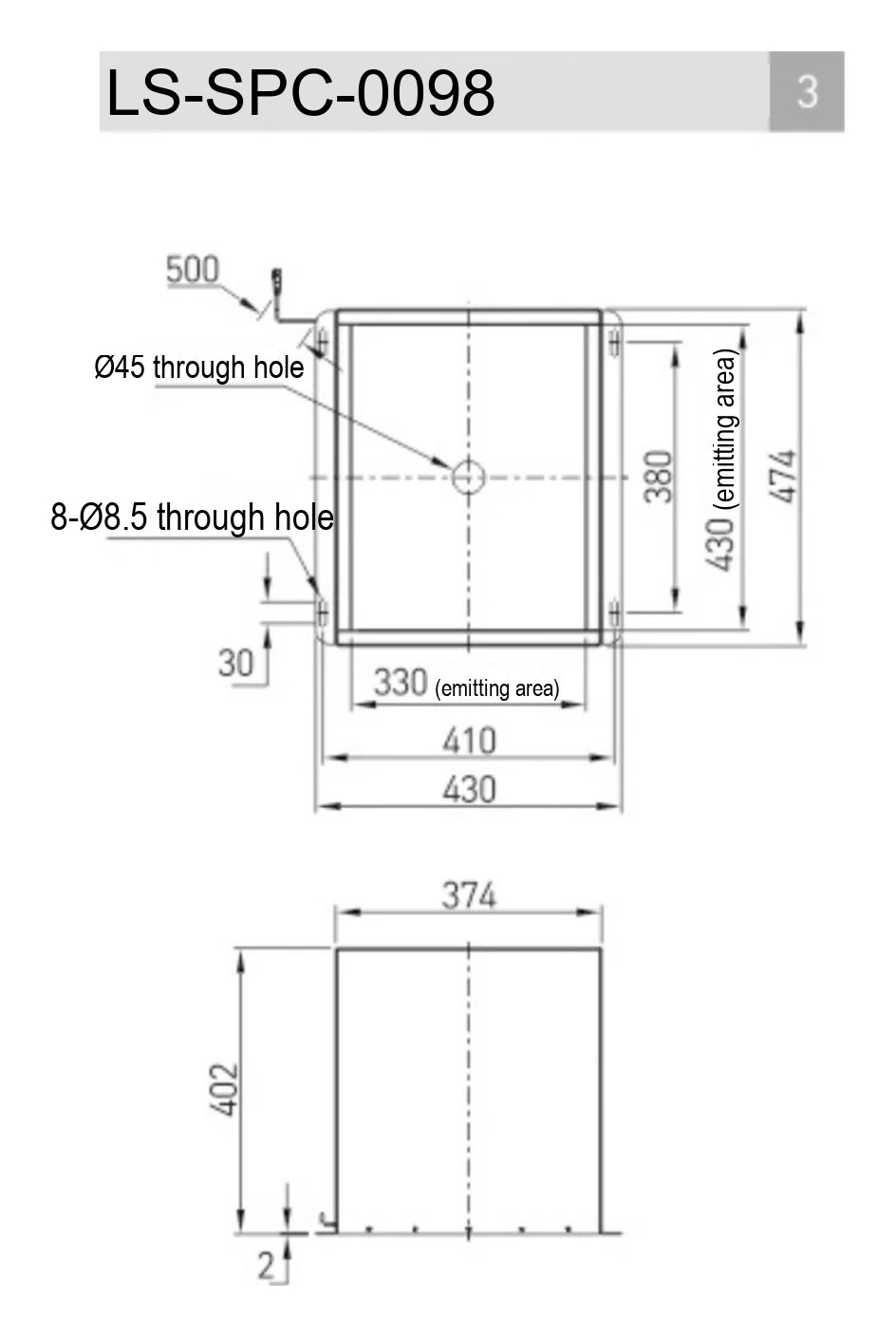

Mechanical
| Length (mm) | 474 |
|---|---|
| Width (mm) | 430 |
| Height (mm) | 402 |
| Mounting | 8-dia. 8.5 through holes |
| Shipping weight | 11.60 kg |
Other models in the Light box light source (LS-SPC-S18) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPC-0096 | 200 x 200 mm | $1,129.00 | Ships in 2-3 weeks | View |
| LS-SPC-0097 | 256 x 256 mm | $1,579.00 | Ships in 2-3 weeks | View |
| LS-SPC-0099 | 550 x 550 mm | $3,079.00 | Ships in 2-3 weeks | View |
